Brand siblingRow CropPerformance profile

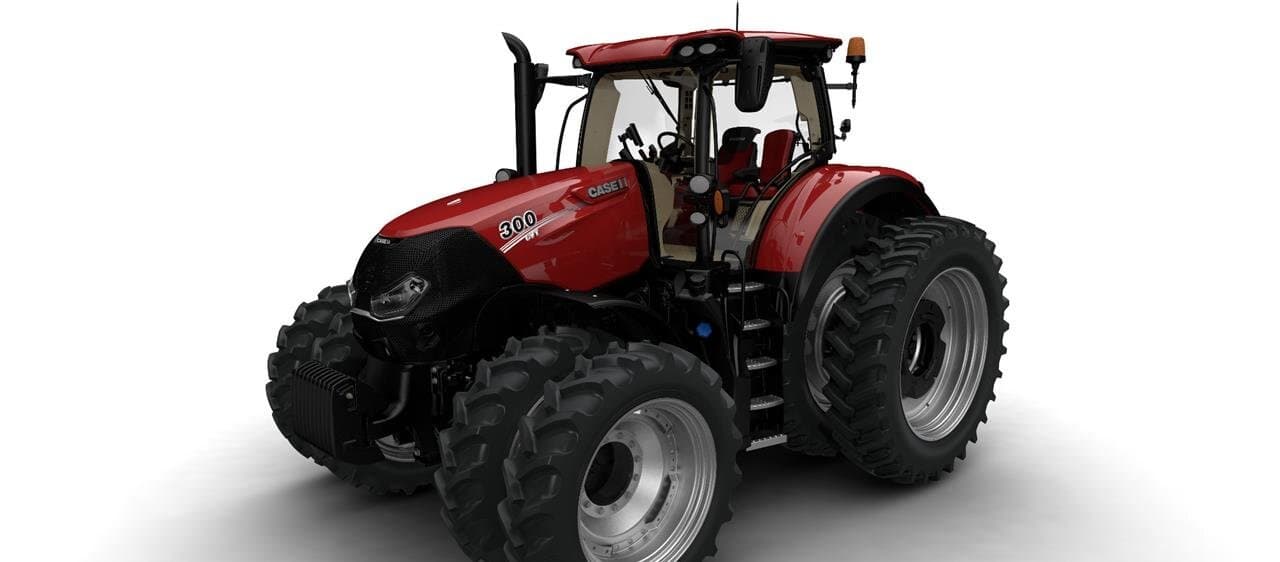

CaseIH Optum 270
The CaseIH Optum 270 is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine made by FPT that puts out 271 horsepower, which is very high compared to other tractors. The engine is turbocharged and has special cooling to help it run well. This tractor uses a CVT transmission, which means it has infinite gears for smooth driving in the field or on the road. The Optum 270 is a big tractor, measuring 208.2 inches long and weighing 23,149 pounds. It has four-wheel drive and power steering to help it move easily in tough conditions. The tractor has a three-point hitch in the back for attaching tools. Inside, there's a comfortable cab for the driver. This tractor is made to be eco-friendly, meeting Tier IV emissions standards with a special system to clean its exhaust. It also has big agricultural tires and a strong hydraulic system for running equipment.
ManufacturerCaseIHPower271 hpEngine6-cylTransCVT
Quick specs
- Category
- Row Crop
- Engine Power Output
- 271hp
- Operating Weight
- 23,149 lb
- Transmission
- CVT
At a glance
How the Optum 270 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
271 hp · 90th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The Optum 270 ranks at the 90th percentile for engine power among recorded row crop tractors.
Overview
About the CaseIH Optum 270
The CaseIH Optum 270 is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine made by FPT that puts out 271 horsepower, which is very high compared to other tractors. The engine is turbocharged and has special cooling to help it run well. This tractor uses a CVT transmission, which means it has infinite gears for smooth driving in the field or on the road. The Optum 270 is a big tractor, measuring 208.2 inches long and weighing 23,149 pounds. It has four-wheel drive and power steering to help it move easily in tough conditions. The tractor has a three-point hitch in the back for attaching tools. Inside, there's a comfortable cab for the driver. This tractor is made to be eco-friendly, meeting Tier IV emissions standards with a special system to clean its exhaust. It also has big agricultural tires and a strong hydraulic system for running equipment.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Optum 270 |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 23,149lb |
Engine
| Make | FPT |
|---|---|
| Power | 271hp |
| Cylinders | 6 |
| Displacement | 410.6ci |
| Bore | 4.1in |
| Stroke | 5.2in |
Transmission
| Type | CVT |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | Cab |
Hydraulics
| Type | Closed center pressure flow compensating (PFC) |
|---|
Dimensions
| Length | 208.2in |
|---|---|
| Width | 119in |
| Height | 132.5in |
| Operating weight | 23,149lb |
Head to head
Optum 270 vs. Row Crop median
How the CaseIH Optum 270 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 271 hp | 138 hp | +96% | 90th |
| Engine Displacement | 411 ci | 391 ci | +5% | 60th |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 23,149 lb | 12,307 lb | +88% | 92nd |
| Length | 208 in | 180 in | +16% | 83rd |
| Width | 119 in | 91.2 in | +31% | 98th |
| Height | 133 in | 114 in | +17% | 92nd |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH Magnum 275 | 275 hp | 21,570 lb | — | Compare → |
| CaseIH MX275 Magnum | 275 hp | 21,570 lb | — | Compare → |
| CaseIH Magnum 280 | 279 hp | 20,670 lb | — | Compare → |
| CaseIH MX255 Magnum | 262 hp | 21,550 lb | — | Compare → |
| CaseIH Magnum 290 | 284 hp | 27,400 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Challenger 65 | 270 hp | 33,200 lb | — | Compare → |
| AGCO DT225B | 266.3 hp | 25,795 lb | 2009–2010 | Compare → |
| AGCO DT220A | 260 hp | 19,951 lb | 2005–2008 | Compare → |
| Challenger 65B | 285 hp | 34,030 lb | — | Compare → |
| Challenger 65C | 285 hp | 32,875 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH Optum 270 photos
FAQ
Common questions
What is the engine power output of the CaseIH Optum 270?
Rated engine output for the CaseIH Optum 270 is 271 hp, delivered by a 6-cylinder engine. The engine displaces 410.6 ci.
Which transmission does the CaseIH Optum 270 use?
The CaseIH Optum 270 is equipped with a CVT transmission.
What type of hydraulic system does the CaseIH Optum 270 use?
Hydraulics on the CaseIH Optum 270 are Closed center pressure flow compensating (PFC).
What hitch category is the CaseIH Optum 270?
The CaseIH Optum 270 uses a Category III hitch.
What is the operating weight of the CaseIH Optum 270?
In working trim, the CaseIH Optum 270 comes in at roughly 23,149 lb.
How do I maintain a CaseIH Optum 270?
Routine service for the CaseIH Optum 270 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
