Four-Wheel DrivePerformance profile

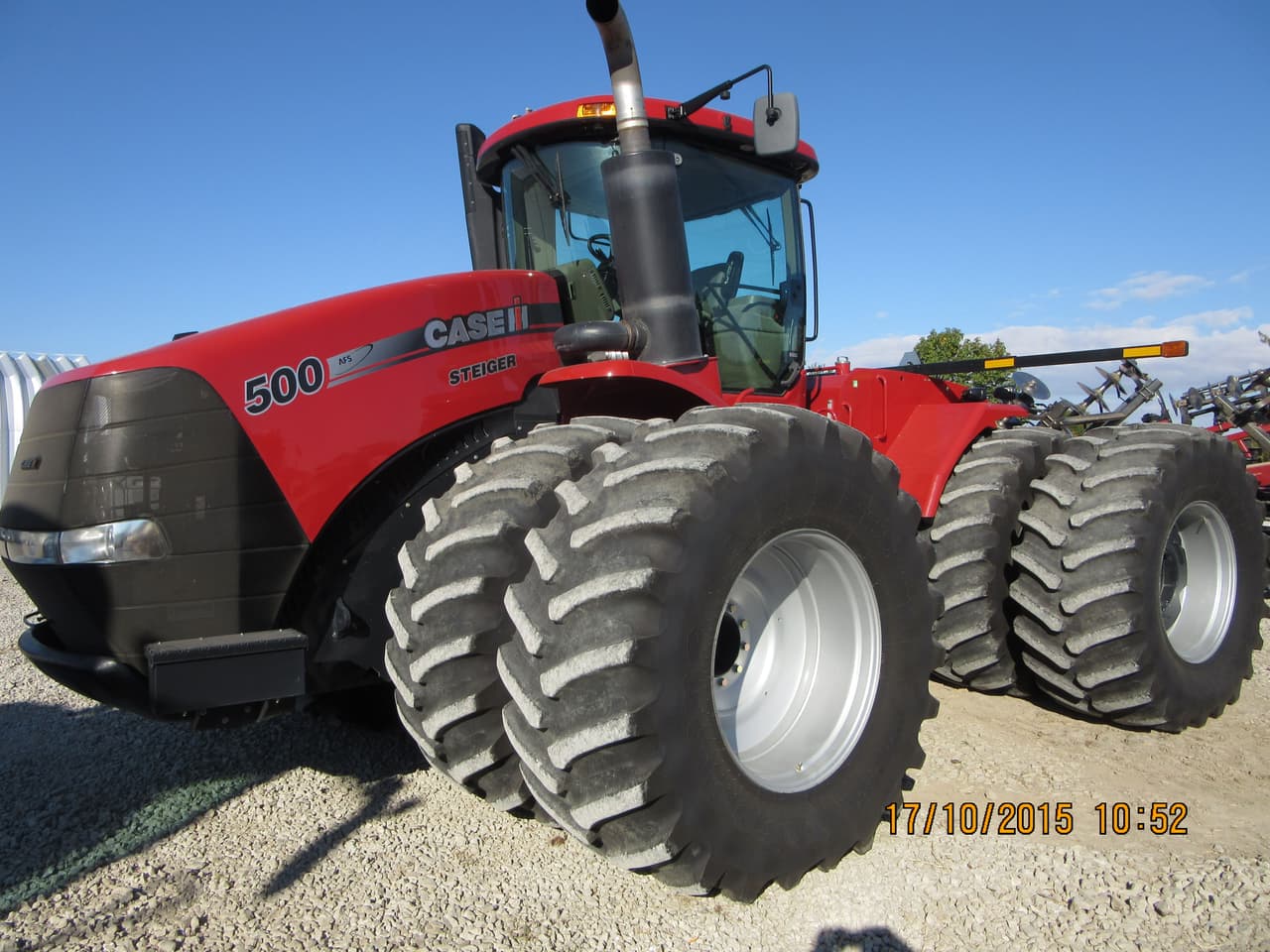

CaseIH Steiger 500
The CaseIH Steiger 500 is a powerful four-wheel drive tractor built for big jobs. It has a strong 6-cylinder diesel engine made by Iveco that can produce 500 horsepower. This engine is liquid-cooled and uses a turbocharger to boost its power. The tractor has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver lots of options for different tasks. This tractor is big and heavy, weighing 39,492 pounds. It has a 4x4 articulated chassis, which means it can turn tightly in the field. The Steiger 500 uses a special system called selective catalytic reduction (SCR) to control its emissions and meet Interim Tier 4 standards. It has wet disc brakes that work with hydraulics and electricity, making them strong and reliable. The hydraulic system is pressure flow compensating, which helps the tractor work well with different attachments. With its size and power, the CaseIH Steiger 500 is great for large farms and tough fieldwork.
ManufacturerCaseIHPower500 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Four-Wheel Drive
- Engine Power Output
- 500hp
- Operating Weight
- 39,492 lb
- Transmission
- Full power shift
At a glance
How the Steiger 500 compares
vs. Four-Wheel Drive medianDistribution
Engine Power (hp)
Across all Four-Wheel Drive tractors
500 hp · 74th
This model
84
Median 375 hp
549
This modelFour-Wheel Drive tractorsMediann = 162
The Steiger 500 ranks at the 74th percentile for engine power among recorded four-wheel drive tractors.
Overview
About the CaseIH Steiger 500
The CaseIH Steiger 500 is a powerful four-wheel drive tractor built for big jobs. It has a strong 6-cylinder diesel engine made by Iveco that can produce 500 horsepower. This engine is liquid-cooled and uses a turbocharger to boost its power. The tractor has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver lots of options for different tasks. This tractor is big and heavy, weighing 39,492 pounds. It has a 4x4 articulated chassis, which means it can turn tightly in the field. The Steiger 500 uses a special system called selective catalytic reduction (SCR) to control its emissions and meet Interim Tier 4 standards. It has wet disc brakes that work with hydraulics and electricity, making them strong and reliable. The hydraulic system is pressure flow compensating, which helps the tractor work well with different attachments. With its size and power, the CaseIH Steiger 500 is great for large farms and tough fieldwork.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | Steiger 500 |
| Category | Four-Wheel Drive tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 39,492lb |
Engine
| Make | Iveco |
|---|---|
| Power | 500hp |
| Cylinders | 6 |
| Displacement | 787ci |
| Bore | 5.32in |
| Stroke | 5.91in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4 Wheel Drive |
| Brakes | Electro-hydraulic wet discs |
Hydraulics
| Type | Pressure flow compensating (PFC) |
|---|
Dimensions
| Operating weight | 39,492lb |
|---|
Head to head
Steiger 500 vs. Four-Wheel Drive median
How the CaseIH Steiger 500 compares to other Four-Wheel Drive tractors
| Spec | This model | Four-Wheel Drive median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 500 hp | 375 hp | +33% | 74th |
| Engine Displacement | 787 ci | 826 ci | -5% | 39th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 39,492 lb | 37,428 lb | +6% | 56th |
Medians and percentiles are computed from the four-wheel drive tractors in our database with a recorded value for each spec (sample sizes 132–162 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH STX500 | 500 hp | 54,000 lb | — | Compare → |
| CaseIH Steiger 485 | 485 hp | 38,500 lb | — | Compare → |
| CaseIH Steiger 470 | 470 hp | 40,159 lb | — | Compare → |
| CaseIH Steiger 470 Quadtrac | 470 hp | 46,500 lb | — | Compare → |
| CaseIH STX530 | 530 hp | 54,000 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Big Bud 500 | 500 hp | — | — | Compare → |
| Challenger MT851 | 504.2 hp | 42,000 lb | — | Compare → |
| Challenger 1050 | 485 hp | 31,615 lb | 2017+ | Compare → |
| Challenger MT865E | 521.27 hp | 44,550 lb | — | Compare → |
| Challenger MT865 | 523.6 hp | 44,220 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH Steiger 500 photos
FAQ
Common questions
What is the engine power output of the CaseIH Steiger 500?
Rated engine output for the CaseIH Steiger 500 is 500 hp, delivered by a 6-cylinder engine. The engine displaces 787 ci.
Which transmission does the CaseIH Steiger 500 use?
The CaseIH Steiger 500 is equipped with a Full power shift transmission with 16 forward gears.
What type of hydraulic system does the CaseIH Steiger 500 use?
Hydraulics on the CaseIH Steiger 500 are Pressure flow compensating (PFC).
What is the operating weight of the CaseIH Steiger 500?
In working trim, the CaseIH Steiger 500 comes in at roughly 39,492 lb.
How do I maintain a CaseIH Steiger 500?
Routine service for the CaseIH Steiger 500 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
