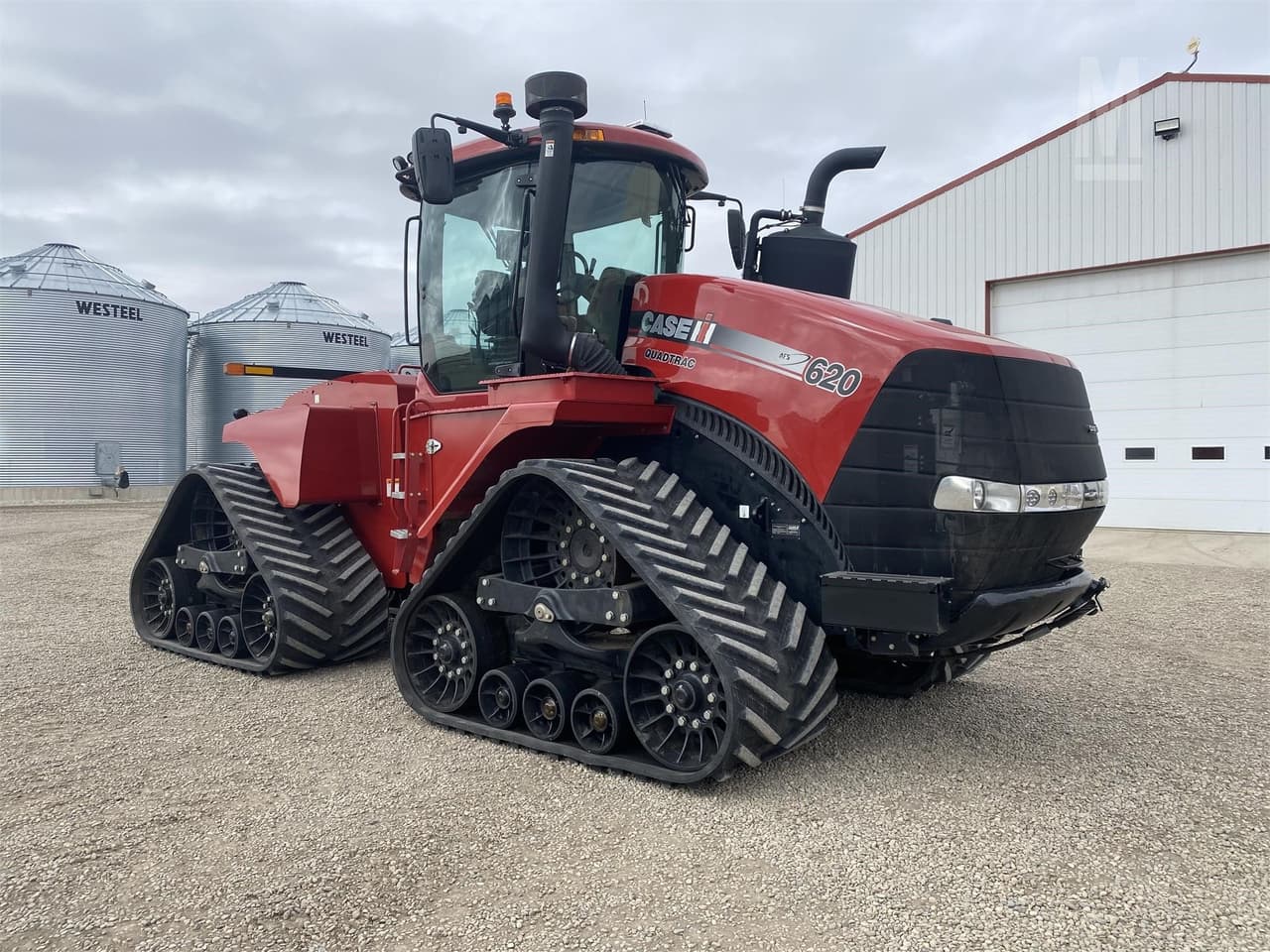

CaseIH Steiger 620
The CaseIH Steiger 620 is a powerful four-wheel drive tractor built for big jobs. It has a strong 620 horsepower engine made by FPT. This engine has 6 cylinders and uses diesel fuel. The tractor has a special cooling system with a fan powered by hydraulics to keep the engine running smoothly. This big tractor is 300 inches long, 120 inches wide, and 156 inches tall. It weighs 48,147 pounds, which helps it grip the ground well. The Steiger 620 has a full power shift transmission with 16 forward gears and 2 reverse gears. This lets the driver change speeds easily. The tractor also has a hydraulic steering system that helps it turn by bending in the middle. It has big 42-inch tires on both the front and back, which are good for working in fields. The CaseIH Steiger 620 is made for comfort too. It has a cab for the driver to sit in, which helps protect them from dust and noise. The tractor has a strong hitch on the back for pulling heavy equipment. It also has a special hydraulic system that helps control the tools attached to it. With its size and power, this tractor is great for large farms that need to do big jobs quickly.

Key specifications
- Category
- Four-Wheel Drive
- Engine power
- 620hp
- Operating weight
- 48,147 lb
- Transmission
- full power shift
Category comparison
Steiger 620 compared with its category
vs. Four-Wheel Drive medianDistribution
Engine Power (hp)
All recorded Four-Wheel Drive tractors
This model
The Steiger 620 ranks at the 97th percentile for engine power among recorded four-wheel drive tractors.
Overview
About the CaseIH Steiger 620
The CaseIH Steiger 620 is a powerful four-wheel drive tractor built for big jobs. It has a strong 620 horsepower engine made by FPT. This engine has 6 cylinders and uses diesel fuel. The tractor has a special cooling system with a fan powered by hydraulics to keep the engine running smoothly. This big tractor is 300 inches long, 120 inches wide, and 156 inches tall. It weighs 48,147 pounds, which helps it grip the ground well. The Steiger 620 has a full power shift transmission with 16 forward gears and 2 reverse gears. This lets the driver change speeds easily. The tractor also has a hydraulic steering system that helps it turn by bending in the middle. It has big 42-inch tires on both the front and back, which are good for working in fields. The CaseIH Steiger 620 is made for comfort too. It has a cab for the driver to sit in, which helps protect them from dust and noise. The tractor has a strong hitch on the back for pulling heavy equipment. It also has a special hydraulic system that helps control the tools attached to it. With its size and power, this tractor is great for large farms that need to do big jobs quickly.
Full specifications
Recorded specifications
General
| Manufacturer | CaseIH |
|---|---|
| Model | Steiger 620 |
| Category | Four-Wheel Drive tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 48,147lb(21,840 kg) |
Engine
| Make | FPT |
|---|---|
| Power | 620hp(462.3 kW) |
| Cylinders | 6 |
| Displacement | 787ci(12.9 L) |
| Bore | 5.31in(134.9 mm) |
| Stroke | 5.91in(150.1 mm) |
Transmission
| Type | full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | Four-wheel Drive (4WD) |
| Steering | hydraulic articulated |
| Cab | Cab |
Hydraulics
| Type | pressure flow compensated |
|---|
Dimensions
| Length | 300in(7,620 mm) |
|---|---|
| Width | 120in(3,048 mm) |
| Height | 156in(3,962 mm) |
| Operating weight | 48,147lb(21,840 kg) |
Closest alternatives
Steiger 620 compared with the nearest models by horsepower
The closest four-wheel drive models to the CaseIH Steiger 620 by rated horsepower are the John Deere 9620R and the New Holland T903. The John Deere 9620R matches it on rated power and weighs 250 lb less. The New Holland T903 matches it on rated power and weighs 7,850 lb more, so it carries more weight per horsepower, which helps traction in draft work.
| Spec | CaseIH Steiger 620 | John Deere 9620R | New Holland T903 |
|---|---|---|---|
| Engine power | 620 hp462.3 kW | 620 hp462.3 kW | 620 hp462.3 kW |
| Operating weight | 48,147 lb21,839 kg | 47,895 lb21,725 kg | 56,000 lb25,401 kg |
| Weight per hp | 78 lb/hp47 kg/kW | 77 lb/hp47 kg/kW | 90 lb/hp55 kg/kW |
| Displacement | 787 ci12.9 L | 912 ci14.95 L | 787.3 ci12.9 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | full power shift | Full power shift | Full power shift |
| Drive | Four-wheel Drive (4WD) | 4WD | - |
| Years built | - | 2015+ | 2007-2014 |
Calculators
Calculators for the Steiger 620
PTO power
About 515 to 558 PTO hp
Estimated from the 620 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 620 hp tractor can run
Maximum size is about a 73.5 ft rotary cutter or a 63 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
90 lb per PTO hp as listed
Heavy draft work calls for 110 to 125 lb/hp. The calculator gives the ballast to add.
Units
620 hp is 462.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the CaseIH Steiger 620
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the FPTAmazon
Fits the FPT 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the FPTAmazon
Fits the FPT 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the FPTAmazon
Fits the FPT 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the FPTAmazon
Fits the FPT 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- CaseIH Steiger 620 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- CaseIH Steiger 620 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- CaseIH Steiger 620 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Steiger 620 vs. Four-Wheel Drive median
CaseIH Steiger 620 compared with other Four-Wheel Drive tractors
| Spec | This model | Four-Wheel Drive median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 620 hp | 375 hp | +65% | 97th |
| Engine Displacement | 787 ci | 826 ci | -5% | 39th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 48,147 lb | 37,428 lb | +29% | 87th |
| Length | 300 in | 275 in | +9% | 79th |
| Width | 120 in | 116 in | +4% | 65th |
| Height | 156 in | 143 in | +9% | 95th |
Medians and percentiles are calculated from the four-wheel drive tractors in the database that have a recorded value for each specification (sample size 71–162 models).
Same manufacturer
Other CaseIH models
Other manufacturers
Models with similar horsepower
Gallery
CaseIH Steiger 620 photos




FAQ
Frequently asked questions
What is the engine power output of the CaseIH Steiger 620?
Rated engine output for the CaseIH Steiger 620 is 620 hp, delivered by a 6-cylinder engine. The engine displaces 787 ci.
Which transmission does the CaseIH Steiger 620 use?
The CaseIH Steiger 620 is equipped with a full power shift transmission with 16 forward gears.
What hydraulics does the CaseIH Steiger 620 have?
The CaseIH Steiger 620 uses a pressure flow compensated hydraulic system.
What is the operating weight of the CaseIH Steiger 620?
The CaseIH Steiger 620 has an operating weight of about 48,147 lb.
How do I maintain a CaseIH Steiger 620?
Routine service for the CaseIH Steiger 620 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
