SpecializedPerformance profile
John Deere 310E
The John Deere 310E is a specialized backhoe loader tractor that was made from 1997 to 2001. It's a 2WD machine with a 4x2 chassis, making it good for work on flat ground. The tractor uses hydrostatic power steering, which makes it easy to control. This tractor has a John Deere 4045D engine with 4 cylinders in a line. It's a diesel engine that doesn't use a turbocharger. The engine is liquid-cooled and can produce 76 horsepower at 2200 RPM. The 310E has a 4-speed transmission for both forward and reverse gears. It has wet disc brakes that use hydraulic power to stop the tractor safely. The John Deere 310E is a big machine, measuring 278.7 inches long and 85.8 inches wide. It weighs 12,800 pounds, which helps it stay stable during heavy work. The tractor can come with either a ROPS (roll-over protection structure) or a cab for the operator. It has industrial tires on both the front and back, suitable for various work sites. The hydraulic system is an open center type, which is common in many tractors of this kind.
ManufacturerJohn DeerePower76 hpEngine4-cyl
Quick specs
- Category
- Specialized
- Engine Power Output
- 76hp
- Operating Weight
- 12,800 lb
At a glance
How the 310E compares
vs. Specialized medianDistribution
Engine Power (hp)
Across all Specialized tractors
76 hp · 70th
This model
15
Median 62 hp
85
This modelSpecialized tractorsMediann = 55
The 310E ranks at the 70th percentile for engine power among recorded specialized tractors.
Overview
About the John Deere 310E
The John Deere 310E is a specialized backhoe loader tractor that was made from 1997 to 2001. It's a 2WD machine with a 4x2 chassis, making it good for work on flat ground. The tractor uses hydrostatic power steering, which makes it easy to control. This tractor has a John Deere 4045D engine with 4 cylinders in a line. It's a diesel engine that doesn't use a turbocharger. The engine is liquid-cooled and can produce 76 horsepower at 2200 RPM. The 310E has a 4-speed transmission for both forward and reverse gears. It has wet disc brakes that use hydraulic power to stop the tractor safely. The John Deere 310E is a big machine, measuring 278.7 inches long and 85.8 inches wide. It weighs 12,800 pounds, which helps it stay stable during heavy work. The tractor can come with either a ROPS (roll-over protection structure) or a cab for the operator. It has industrial tires on both the front and back, suitable for various work sites. The hydraulic system is an open center type, which is common in many tractors of this kind.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 310E |
| Category | Specialized tractor |
| Type | 4x2 2WD |
| Years built | 1997–2001 |
| Operating weight | 12,800lb |
Engine
| Make | John Deere |
|---|---|
| Model | 4045D |
| Power | 76hp |
| Cylinders | 4 |
| Displacement | 276ci |
| Bore | 4.17in |
| Stroke | 5in |
Transmission
| Forward gears | 4 |
|---|---|
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Cab | ROPS or Cab |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 278.7in |
|---|---|
| Width | 85.8in |
| Operating weight | 12,800lb |
Capacities
| Cooling system | 4.25gal |
|---|
Head to head
310E vs. Specialized median
How the John Deere 310E compares to other Specialized tractors
| Spec | This model | Specialized median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 76 hp | 62 hp | +23% | 70th |
| Engine Displacement | 276 ci | 239 ci | +15% | 82nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 4 | 4 | at median | 50th |
| Operating Weight | 12,800 lb | 12,600 lb | +2% | 52nd |
| Length | 279 in | 274 in | +2% | 68th |
| Width | 85.8 in | 83.9 in | +2% | 60th |
Medians and percentiles are computed from the specialized tractors in our database with a recorded value for each spec (sample sizes 43–58 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 310C | 75 hp | 12,399 lb | 1986–1991 | Compare → |
| John Deere 410C | 75 hp | 14,396 lb | 1986–1991 | Compare → |
| John Deere 310G | 73 hp | 12,800 lb | 2001–2007 | Compare → |
| John Deere 310J | 84 hp | 13,880 lb | 2007–2011 | Compare → |
| John Deere 410D | 85 hp | 15,609 lb | 1991–1997 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| Agrinar T-85 | 80.9 hp | 3,000 lb | — | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

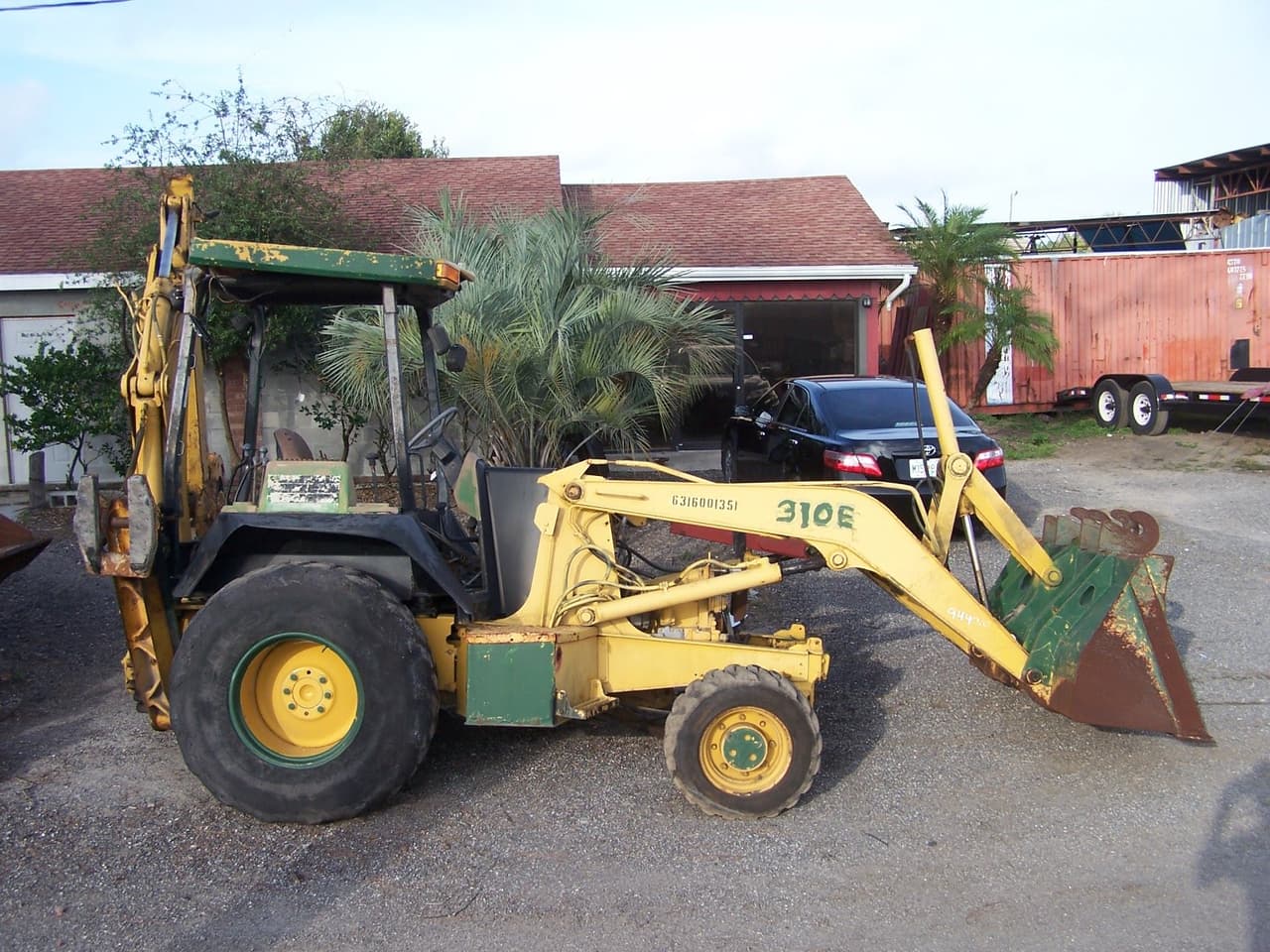

John Deere 310E photos
FAQ
Common questions
When was the John Deere 310E in production?
John Deere 310E production started in 1997 and ended in 2001.
How much horsepower does the John Deere 310E have?
The John Deere 310E produces 76 hp from its 4-cylinder engine. Engine displacement is 276 ci.
How much does the John Deere 310E weigh?
The John Deere 310E weighs about 12,800 lb in operating condition.
What type of hydraulic system does the John Deere 310E use?
Hydraulics on the John Deere 310E are Open center.
What maintenance does the John Deere 310E require?
Like any tractor, the John Deere 310E needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
