Utility tractorsSpec sheet
Challenger MT535B
The Challenger MT535B is a powerful 4x4 articulated tractor with a Perkins diesel engine. This tractor has 6 cylinders and can produce 145.9 hp at 2200 rpm. It uses a special transmission called a continuously variable transmission (CVT), which means it can change speeds smoothly without shifting gears. The MT535B is built for tough farm work. It has a strong hydraulic system that can lift heavy loads, and its brakes use wet discs for better stopping power. The tractor is quite big, measuring 168.5 inches long, 81.1 inches wide, and 112.8 inches tall. It weighs 14,780 pounds, which helps it grip the ground well. The engine is cooled by liquid and has a turbocharger to make it more powerful. Farmers will appreciate the rear hitch, which can connect to many different tools.
ManufacturerChallengerPower145.9 hp(108.8 kW)Class100–150 HP tractors →Engine6-cylinderTransmissionContinuously variable transmission (AGCO CVT)
Key specifications
- Category
- Utility
- Engine power
- 146hp
- Operating weight
- 14,780 lb
- Transmission
- Continuously variable transmission (AGCO CVT)
Category comparison
MT535B compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
145.9 hp · 93rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The MT535B ranks at the 93rd percentile for engine power among recorded utility tractors.
Overview
About the Challenger MT535B
The Challenger MT535B is a powerful 4x4 articulated tractor with a Perkins diesel engine. This tractor has 6 cylinders and can produce 145.9 hp at 2200 rpm. It uses a special transmission called a continuously variable transmission (CVT), which means it can change speeds smoothly without shifting gears. The MT535B is built for tough farm work. It has a strong hydraulic system that can lift heavy loads, and its brakes use wet discs for better stopping power. The tractor is quite big, measuring 168.5 inches long, 81.1 inches wide, and 112.8 inches tall. It weighs 14,780 pounds, which helps it grip the ground well. The engine is cooled by liquid and has a turbocharger to make it more powerful. Farmers will appreciate the rear hitch, which can connect to many different tools.
Full specifications
Recorded specifications
General
| Manufacturer | Challenger |
|---|---|
| Model | MT535B |
| Category | Utility tractor |
| Type | 4x4 articulated |
| Operating weight | 14,780lb(6,704 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | Perkins Diesel, Serial No. U004188P |
| Power | 145.9hp(108.8 kW) |
| Cylinders | 6 |
| Displacement | 402ci(6.59 L) |
| Bore | 4.13in(105 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Continuously variable transmission (AGCO CVT) |
|---|
Chassis & drive
| Chassis | 4x4 articulated |
|---|---|
| Steering | Hydrostatic |
| Brakes | Multiple wet disc hydraulically operated by two-foot pedals |
Hydraulics
| Type | closed center pressure flow compensating (PFC) |
|---|
Dimensions
| Wheelbase | 106.5in(2,705 mm) |
|---|---|
| Length | 168.5in(4,280 mm) |
| Width | 81.1in(2,060 mm) |
| Height | 112.8in(2,865 mm) |
| Operating weight | 14,780lb(6,704 kg) |
Capacities
| Cooling system | 6.73gal(25.48 L) |
|---|
Closest alternatives
MT535B compared with the nearest models by horsepower
Among utility tractors, the International Harvester 3788 and the CaseIH Maxxum 145 are closest to the Challenger MT535B in rated horsepower. The International Harvester 3788 matches it on rated power and weighs 3,840 lb more, at 128 lb per horsepower against 101 lb. The CaseIH Maxxum 145 makes 0.9 hp less and weighs 2,780 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft.
| Spec | Challenger MT535B | International Harvester 3788 | CaseIH Maxxum 145 |
|---|---|---|---|
| Engine power | 145.9 hp108.8 kW | 146 hp108.9 kW | 145 hp108.1 kW |
| Operating weight | 14,780 lb6,704 kg | 18,620 lb8,446 kg | 12,004 lb5,445 kg |
| Weight per hp | 101 lb/hp62 kg/kW | 128 lb/hp78 kg/kW | 83 lb/hp50 kg/kW |
| Displacement | 402 ci6.59 L | 466 ci7.64 L | 274 ci4.49 L |
| Cylinders | 6 | 6 | 4 |
| Transmission | Continuously variable transmission (AGCO CVT) | Two-range power shift | Partial power shift |
| Drive | - | 4WD | 2WD |
Calculators
Calculators for the MT535B
PTO power
About 121 to 131 PTO hp
Estimated from the 145.9 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 145.9 hp tractor can run
Maximum size is about a 17.5 ft rotary cutter or a 15 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
118 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
145.9 hp is 108.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
MT535B vs. Utility median
Challenger MT535B compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 146 hp | 55 hp | +165% | 93rd |
| Engine Displacement | 402 ci | 183 ci | +120% | 90th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Operating Weight | 14,780 lb | 5,303 lb | +179% | 93rd |
| Length | 169 in | 137 in | +23% | 85th |
| Width | 81.1 in | 66 in | +23% | 83rd |
| Height | 113 in | 94.1 in | +20% | 90th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Challenger models
Other manufacturers
Models with similar horsepower
Gallery

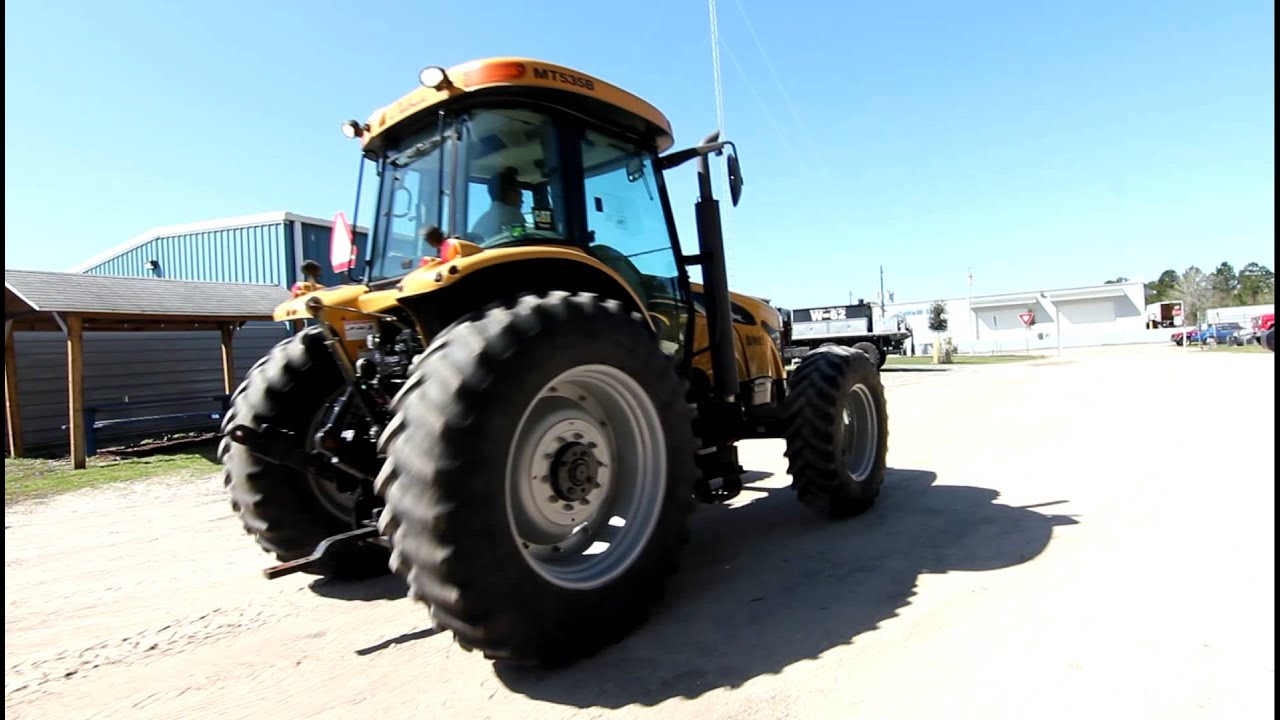

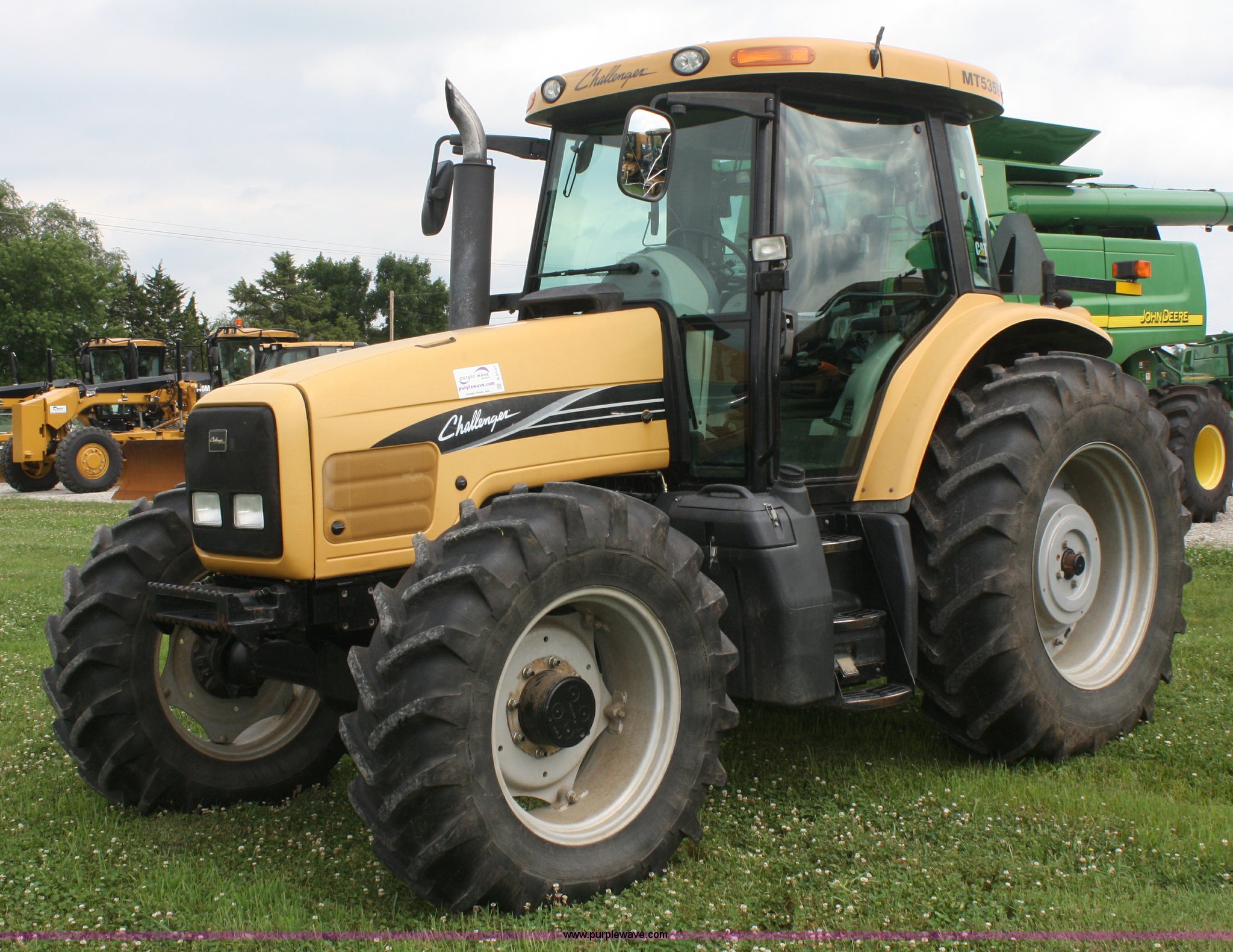

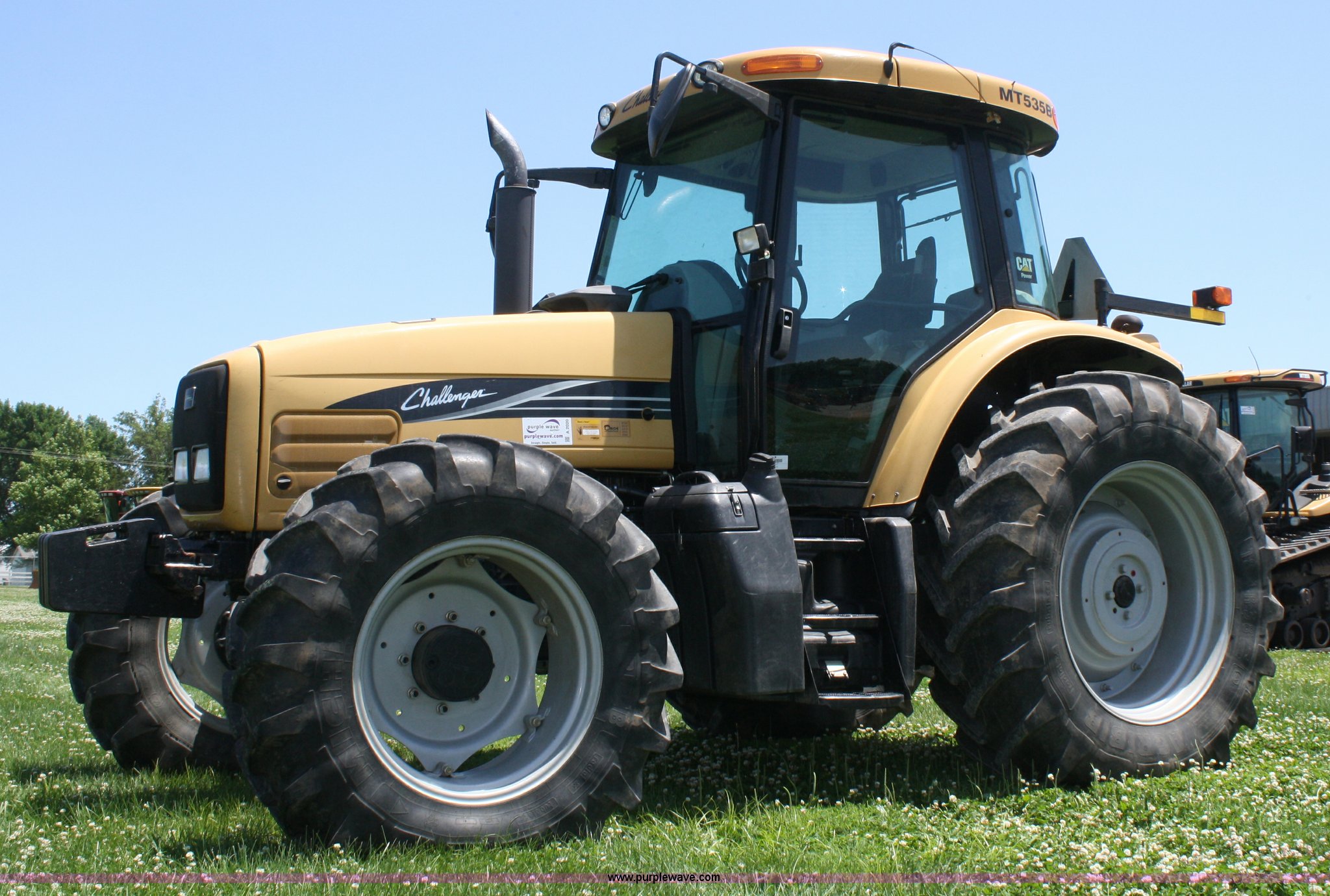

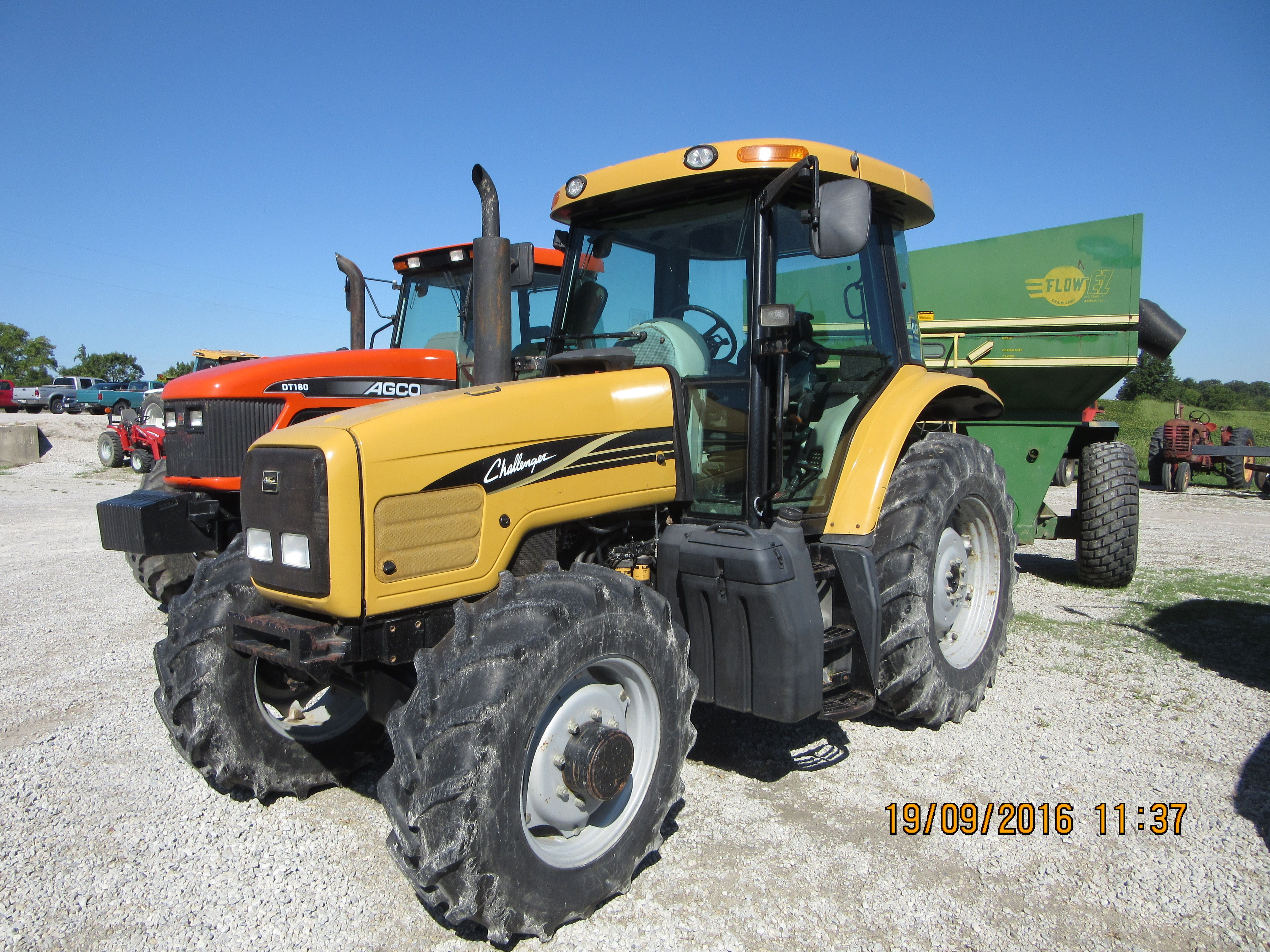

Challenger MT535B photos
FAQ
Frequently asked questions
What is the engine power output of the Challenger MT535B?
Rated engine output for the Challenger MT535B is 145.9 hp, delivered by a 6-cylinder engine. The engine displaces 402 ci.
Which transmission does the Challenger MT535B use?
The Challenger MT535B is equipped with a Continuously variable transmission (AGCO CVT) transmission.
What hydraulics does the Challenger MT535B have?
The Challenger MT535B uses a closed center pressure flow compensating (PFC) hydraulic system.
What is the operating weight of the Challenger MT535B?
The Challenger MT535B has an operating weight of about 14,780 lb.
How do I maintain a Challenger MT535B?
Routine service for the Challenger MT535B covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
