ArticulatedPerformance profile
Challenger MT765B
The Challenger MT765B is a powerful tracked tractor built for tough farm work. It has a Caterpillar C9 ACERT diesel engine with 6 cylinders and 320.72 horsepower. This engine is turbocharged and intercooled, which helps it work hard in all conditions. The tractor uses rubber tracks instead of wheels, which helps it move well on different types of ground. This tractor is big and strong. It's 233 inches long, 88 inches wide, and 135.5 inches tall. It weighs 31,085 pounds, which is very heavy for a tractor. The MT765B has a PowerShift transmission with 16 forward gears and 4 reverse gears. This lets the driver choose the right speed for any job. The tractor can pull very heavy loads with its strong hitch that can lift up to 17,263 pounds. It also has a good hydraulic system that can pump 44 gallons of fluid per minute, which is great for running big farm tools.
ManufacturerChallengerPower320.72 hpEngine6-cylTransPowerShift
Quick specs
- Category
- Articulated
- Engine Power Output
- 321hp
- Operating Weight
- 31,085 lb
- Transmission
- PowerShift
At a glance
How the MT765B compares
vs. Articulated medianDistribution
Engine Power (hp)
Across all Articulated tractors
320.72 hp · 10th
This model
180
Median 450 hp
541
This modelArticulated tractorsMediann = 62
The MT765B ranks at the 10th percentile for engine power among recorded articulated tractors.
Overview
About the Challenger MT765B
The Challenger MT765B is a powerful tracked tractor built for tough farm work. It has a Caterpillar C9 ACERT diesel engine with 6 cylinders and 320.72 horsepower. This engine is turbocharged and intercooled, which helps it work hard in all conditions. The tractor uses rubber tracks instead of wheels, which helps it move well on different types of ground. This tractor is big and strong. It's 233 inches long, 88 inches wide, and 135.5 inches tall. It weighs 31,085 pounds, which is very heavy for a tractor. The MT765B has a PowerShift transmission with 16 forward gears and 4 reverse gears. This lets the driver choose the right speed for any job. The tractor can pull very heavy loads with its strong hitch that can lift up to 17,263 pounds. It also has a good hydraulic system that can pump 44 gallons of fluid per minute, which is great for running big farm tools.
Full specifications
Every recorded spec
General
| Manufacturer | Challenger |
|---|---|
| Model | MT765B |
| Category | Articulated tractor |
| Type | Tracklayer-rubber tracked |
| Operating weight | 31,085lb |
Engine
| Make | Caterpillar |
|---|---|
| Model | C9 ACERT Tech Tier 3 |
| Power | 320.72hp |
| Cylinders | 6 |
| Displacement | 537ci |
| Bore | 4.41in |
| Stroke | 5.87in |
Transmission
| Type | PowerShift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | Tracklayer-rubber tracked |
|---|---|
| Drive | 4WD |
| Brakes | Wet Disc |
| Cab | Cab |
Hydraulics
| Type | Closed-center PFC |
|---|
Dimensions
| Length | 233in |
|---|---|
| Width | 88in |
| Height | 135.5in |
| Operating weight | 31,085lb |
Head to head
MT765B vs. Articulated median
How the Challenger MT765B compares to other Articulated tractors
| Spec | This model | Articulated median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 321 hp | 450 hp | -29% | 10th |
| Engine Displacement | 537 ci | 827 ci | -35% | 1st |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 31,085 lb | 51,335 lb | -39% | 4th |
| Width | 88 in | 100 in | -12% | 42nd |
Medians and percentiles are computed from the articulated tractors in our database with a recorded value for each spec (sample sizes 41–62 models).
Compare to tractors with similar specs
Commonly compared Challenger tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Challenger 75 | 325 hp | 34,370 lb | — | Compare → |
| Challenger 75C | 325 hp | 33,305 lb | — | Compare → |
| Challenger 75D | 330 hp | 35,720 lb | — | Compare → |
| Challenger 65E | 310 hp | 34,195 lb | — | Compare → |
| Challenger MT740 | 345.28 hp | 35,890 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Big Bud HN320 | 320 hp | 36,000 lb | — | Compare → |
| AGCO DT275B | 316.6 hp | 25,840 lb | 2009–2010 | Compare → |
| CaseIH 9350 | 310 hp | 28,720 lb | — | Compare → |
| CaseIH 9170 | 335 hp | — | — | Compare → |
| CaseIH 9270 | 335 hp | 34,045 lb | — | Compare → |
Explore
Challenger siblings
Explore
Similar-spec models
Gallery

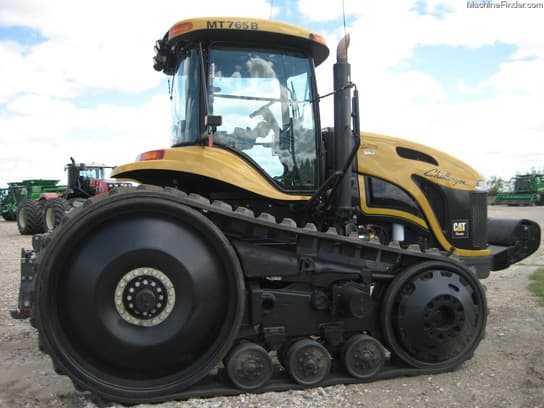

Challenger MT765B photos
FAQ
Common questions
How powerful is the Challenger MT765B?
The Challenger MT765B has an engine power output of 320.72 hp. It is powered by a 6-cylinder engine displacing 537 ci.
What hitch category is the Challenger MT765B?
The Challenger MT765B uses a Category Category 3 hitch with a lift capacity of 17,263 lb.
What is the working weight of the Challenger MT765B?
The operating weight of the Challenger MT765B is approximately 31,085 lb.
What type of transmission does the Challenger MT765B have?
The Challenger MT765B uses a PowerShift transmission offering 16 forward gears.
What type of hydraulic system does the Challenger MT765B use?
Hydraulics on the Challenger MT765B are Closed-center PFC.
What routine service does the Challenger MT765B need?
Regular maintenance for the Challenger MT765B includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
