Sub-CompactPerformance profile
Deutz F2M317
The Deutz F2M317 is a compact 2-wheel drive tractor designed for various farming tasks. It features a simple 4x2 chassis and manual steering, making it easy to handle in tight spaces. The tractor has a 5-speed gear transmission with one reverse gear, giving farmers good control over their speed and power. Under the hood, the F2M317 boasts a Deutz-made diesel engine. This engine is liquid-cooled and has two cylinders, with a displacement of 234.6 cubic inches. It's naturally aspirated, which means it doesn't use turbochargers. The engine produces 29.6 horsepower at 1350 RPM, providing enough power for many farm jobs. The tractor's size is manageable, measuring 133.9 inches long, 78.7 inches wide, and 87.8 inches tall. It weighs 5842 pounds, making it sturdy but not too heavy. For the operator's comfort, the F2M317 comes with a cab, protecting the driver from the elements.
ManufacturerDeutzPower29.6 hpEngine2-cylTransGear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 30hp
- Operating Weight
- 5,842 lb
- Transmission
- Gear
At a glance
How the F2M317 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
29.6 hp · 55th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The F2M317 ranks at the 55th percentile for engine power among recorded sub-compact tractors.
Overview
About the Deutz F2M317
The Deutz F2M317 is a compact 2-wheel drive tractor designed for various farming tasks. It features a simple 4x2 chassis and manual steering, making it easy to handle in tight spaces. The tractor has a 5-speed gear transmission with one reverse gear, giving farmers good control over their speed and power. Under the hood, the F2M317 boasts a Deutz-made diesel engine. This engine is liquid-cooled and has two cylinders, with a displacement of 234.6 cubic inches. It's naturally aspirated, which means it doesn't use turbochargers. The engine produces 29.6 horsepower at 1350 RPM, providing enough power for many farm jobs. The tractor's size is manageable, measuring 133.9 inches long, 78.7 inches wide, and 87.8 inches tall. It weighs 5842 pounds, making it sturdy but not too heavy. For the operator's comfort, the F2M317 comes with a cab, protecting the driver from the elements.
Full specifications
Every recorded spec
General
| Manufacturer | Deutz |
|---|---|
| Model | F2M317 |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Operating weight | 5,842lb |
Engine
| Make | Deutz |
|---|---|
| Power | 29.6hp |
| Cylinders | 2 |
| Displacement | 234.6ci |
| Bore | 4.72in |
| Stroke | 6.69in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Cab |
Dimensions
| Length | 133.9in |
|---|---|
| Width | 78.7in |
| Height | 87.8in |
| Operating weight | 5,842lb |
Head to head
F2M317 vs. Sub-Compact median
How the Deutz F2M317 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 29.6 hp | 26.9 hp | +10% | 55th |
| Engine Displacement | 235 ci | 91.4 ci | +157% | 98th |
| Cylinders | 2 | 3 | -33% | 11th |
| Forward Gears | 5 | 9 | -44% | 4th |
| Operating Weight | 5,842 lb | 2,700 lb | +116% | 96th |
| Length | 134 in | 113 in | +18% | 85th |
| Width | 78.7 in | 50.7 in | +55% | 98th |
| Height | 87.8 in | 78.4 in | +12% | 70th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Deutz tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Deutz F2L514 50 | 27.6 hp | 4,079 lb | — | Compare → |
| Deutz D 4005 | 35 hp | 3,924 lb | — | Compare → |
| Deutz D 2505 | 22 hp | 3,417 lb | — | Compare → |
| Deutz F2L612 4 | 21.7 hp | 2,954 lb | — | Compare → |
| Deutz F1L514 50 | 14.8 hp | 2,833 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST30 | 30.3 hp | 2,594 lb | — | Compare → |
| Allis Chalmers D10 | 28.57 hp | 2,700 lb | 1959–1967 | Compare → |
| AGCO ST28A | 28.4 hp | 2,400 lb | — | Compare → |
| AGCO ST30x | 28.4 hp | 1,984 lb | — | Compare → |
| Allis Chalmers UC | 30.93 hp | 5,710 lb | — | Compare → |
Explore
Deutz siblings
Explore
Similar-spec models
Gallery

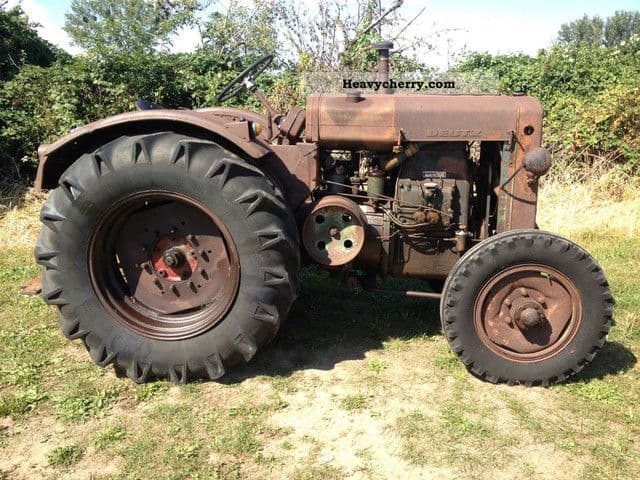

Deutz F2M317 photos
FAQ
Common questions
How much horsepower does the Deutz F2M317 have?
The Deutz F2M317 produces 29.6 hp from its 2-cylinder engine. Engine displacement is 234.6 ci.
What transmission is in the Deutz F2M317?
Transmission on the Deutz F2M317 is Gear, with 5 forward speeds.
How much does the Deutz F2M317 weigh?
The Deutz F2M317 weighs about 5,842 lb in operating condition.
What maintenance does the Deutz F2M317 require?
Like any tractor, the Deutz F2M317 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
