Utility tractorsSpec sheet

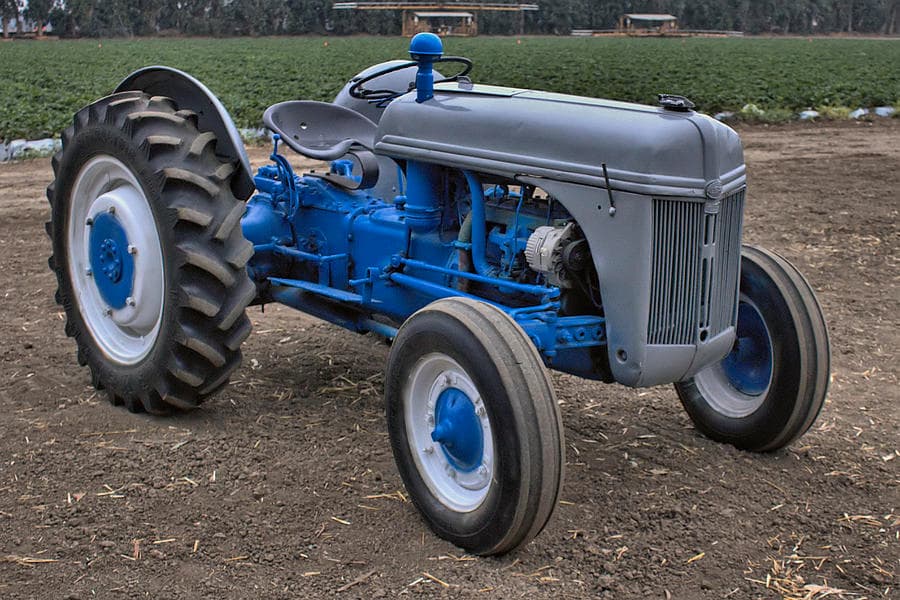

Ford 2N
The Ford 2N is a utility tractor that was made from 1942 to 1947. It's a small, simple tractor that's good for many farm jobs. The 2N has a 2-wheel drive system and manual steering, which makes it easy to control. It has a gear transmission with 3 forward gears and 1 reverse gear, so you can choose the right speed for your work. Under the hood, the Ford 2N has a 4-cylinder gasoline engine that's liquid-cooled. The engine is 120 cubic inches and makes 23 horsepower. It's not very powerful compared to other tractors, but it's enough for many tasks. The tractor has a three-point hitch that can lift up to 800 pounds, which is about average. It also has a PTO (power take-off) that spins at 545 rpm, letting you use different tools. The Ford 2N is pretty light, weighing 3,070 pounds, and it's small too. It's 115 inches long, 64 inches wide, and 52 inches tall, so it can fit in tight spaces on the farm.
Key specifications
- Category
- Utility
- Engine power
- 23hp
- Operating weight
- 3,070 lb
- Transmission
- Gear
Category comparison
2N compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
23 hp · 12th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 2N ranks at the 12th percentile for engine power among recorded utility tractors.
Overview
About the Ford 2N
The Ford 2N is a utility tractor that was made from 1942 to 1947. It's a small, simple tractor that's good for many farm jobs. The 2N has a 2-wheel drive system and manual steering, which makes it easy to control. It has a gear transmission with 3 forward gears and 1 reverse gear, so you can choose the right speed for your work. Under the hood, the Ford 2N has a 4-cylinder gasoline engine that's liquid-cooled. The engine is 120 cubic inches and makes 23 horsepower. It's not very powerful compared to other tractors, but it's enough for many tasks. The tractor has a three-point hitch that can lift up to 800 pounds, which is about average. It also has a PTO (power take-off) that spins at 545 rpm, letting you use different tools. The Ford 2N is pretty light, weighing 3,070 pounds, and it's small too. It's 115 inches long, 64 inches wide, and 52 inches tall, so it can fit in tight spaces on the farm.
Full specifications
Recorded specifications
General
| Manufacturer | Ford |
|---|---|
| Model | 2N |
| Category | Utility tractor |
| Type | 4x2 (2WD) |
| Years built | 1942–1947 |
| Operating weight | 3,070lb(1,393 kg) |
Engine
| Make | Ford |
|---|---|
| Model | Ford |
| Power | 23hp(17.15 kW) |
| Cylinders | 4 |
| Displacement | 120ci(1.97 L) |
| Bore | 3.19in(80.98 mm) |
| Stroke | 3.75in(95.25 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 (2WD) |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Differential mechanical drum |
| Cab | Open |
Power take-off
| Rear PTO | Transmission |
|---|---|
| PTO speed | 545rpm |
Dimensions
| Length | 115in(2,921 mm) |
|---|---|
| Width | 64in(1,626 mm) |
| Height | 52in(1,321 mm) |
| Operating weight | 3,070lb(1,393 kg) |
Capacities
| Cooling system | 3gal(11.36 L) |
|---|
Closest alternatives
2N compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 2N are the Kubota BX2380 and the Kubota BX2370-1. The Kubota BX2380 matches it on rated power and weighs 1,620 lb less, carrying 63 lb per horsepower against 133 lb. It entered production in 2017, 75 years after the 2N. The Kubota BX2370-1 matches it on rated power and weighs 1,660 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. It entered production in 2015, 73 years after the 2N. Of the 3 models, the 2N has the highest weight per horsepower at 133 lb per hp.
| Spec | Ford 2N | Kubota BX2380 | Kubota BX2370-1 |
|---|---|---|---|
| Engine power | 23 hp17.2 kW | 23 hp17.2 kW | 23 hp17.2 kW |
| Operating weight | 3,070 lb1,393 kg | 1,455 lb660 kg | 1,410 lb640 kg |
| Weight per hp | 133 lb/hp81 kg/kW | 63 lb/hp38 kg/kW | 61 lb/hp37 kg/kW |
| Displacement | 120 ci1.97 L | 54.8 ci0.9 L | 54.8 ci0.9 L |
| Cylinders | 4 | 3 | 3 |
| Transmission | Gear | Hydrostatic | Hydrostatic |
| Drive | 2WD | 4WD | 4WD |
| Years built | 1942-1947 | 2017+ | 2015-2016 |
Calculators
Calculators for the 2N
PTO power
About 19 to 21 PTO hp
Estimated from the 23 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 23 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
155 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
23 hp is 17.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
2N vs. Utility median
Ford 2N compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23 hp | 55 hp | -58% | 12th |
| Engine Displacement | 120 ci | 183 ci | -34% | 28th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 3 | 12 | -75% | 3rd |
| Operating Weight | 3,070 lb | 5,303 lb | -42% | 24th |
| Length | 115 in | 137 in | -16% | 20th |
| Width | 64 in | 66 in | -3% | 45th |
| Height | 52 in | 94.1 in | -45% | 4th |
| 3-Point Hitch Capacity | 800 lb | 3,197 lb | -75% | 3rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Ford models
Other manufacturers
Models with similar horsepower
Gallery
Ford 2N photos
FAQ
Frequently asked questions
What years was the Ford 2N manufactured?
Production of the Ford 2N ran from 1942 through 1947.
What type of transmission does the Ford 2N have?
The Ford 2N uses a Gear transmission offering 3 forward gears.
What three-point hitch category does the Ford 2N use?
The Ford 2N has a Category I three-point hitch rated to lift 800 lb.
How powerful is the Ford 2N?
The Ford 2N has an engine power output of 23 hp. It is powered by a 4-cylinder engine displacing 120 ci.
What is the working weight of the Ford 2N?
The operating weight of the Ford 2N is approximately 3,070 lb.
What routine service does the Ford 2N need?
Regular maintenance for the Ford 2N includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
