Ford 1700
The Ford 1700 is a utility tractor made from 1979 to 1982. It's a small, lightweight tractor with a 2WD drive system and manual steering. The tractor has a gear shift transmission with 12 forward and 4 reverse gears, giving farmers good control over their work speed. Under the hood, the Ford 1700 has a Shibaura LE892 engine. This is a 2-cylinder diesel engine that's liquid-cooled and naturally aspirated. It has a below-average displacement of 77.7 ci and produces 23.9 hp at 2500 rpm. The tractor weighs 2444 lb and measures 110.6 inches long, 59.3 inches wide, and 85.5 inches tall. It comes with agricultural tires, a three-point hitch at the rear, and a rear PTO that runs at 540 rpm. The Ford 1700 also features an open operator station with ROPS for safety, mechanical drum brakes, and an electric starter for easy operation.
ManufacturerFordPower23.9 hpEngine2-cylTransGear shift
Quick specs
- Category
- Utility
- Engine Power Output
- 24hp
- Operating Weight
- 2,444 lb
- Transmission
- Gear shift
At a glance
How the 1700 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
23.9 hp · 13th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1700 ranks at the 13th percentile for engine power among recorded utility tractors.
Overview
About the Ford 1700
The Ford 1700 is a utility tractor made from 1979 to 1982. It's a small, lightweight tractor with a 2WD drive system and manual steering. The tractor has a gear shift transmission with 12 forward and 4 reverse gears, giving farmers good control over their work speed. Under the hood, the Ford 1700 has a Shibaura LE892 engine. This is a 2-cylinder diesel engine that's liquid-cooled and naturally aspirated. It has a below-average displacement of 77.7 ci and produces 23.9 hp at 2500 rpm. The tractor weighs 2444 lb and measures 110.6 inches long, 59.3 inches wide, and 85.5 inches tall. It comes with agricultural tires, a three-point hitch at the rear, and a rear PTO that runs at 540 rpm. The Ford 1700 also features an open operator station with ROPS for safety, mechanical drum brakes, and an electric starter for easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | Ford |
|---|---|
| Model | 1700 |
| Category | Utility tractor |
| Type | 2WD |
| Years built | 1979–1982 |
| Operating weight | 2,444lb |
Engine
| Make | Shibaura |
|---|---|
| Model | LE892 |
| Power | 23.9hp |
| Cylinders | 2 |
| Displacement | 77.7ci |
| Bore | 3.54in |
| Stroke | 3.94in |
Transmission
| Type | Gear shift |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Drive | 2WD |
|---|---|
| Steering | Manual |
| Brakes | Mechanical drum |
| Cab | Open with ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Rear, transmission |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 110.6in |
|---|---|
| Width | 59.3in |
| Height | 85.5in |
| Operating weight | 2,444lb |
Capacities
| Cooling system | 1.4gal |
|---|
Head to head
1700 vs. Utility median
How the Ford 1700 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23.9 hp | 55 hp | -57% | 13th |
| Engine Displacement | 77.7 ci | 183 ci | -58% | 11th |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 2,444 lb | 5,303 lb | -54% | 16th |
| Length | 111 in | 137 in | -19% | 16th |
| Width | 59.3 in | 66 in | -10% | 35th |
| Height | 85.5 in | 94.1 in | -9% | 34th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Ford tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ag King AK2840 | 24 hp | 2,900 lb | — | Compare → |
| Bolens G242 | 24 hp | 1,672 lb | — | Compare → |
| Bolens G244 | 24 hp | 1,903 lb | — | Compare → |
| AGCO ST25 | 24.3 hp | 1,588 lb | — | Compare → |
| Bobcat CT1025 | 24.5 hp | 1,488 lb | — | Compare → |
Explore
Ford siblings
Explore
Similar-spec models
Gallery

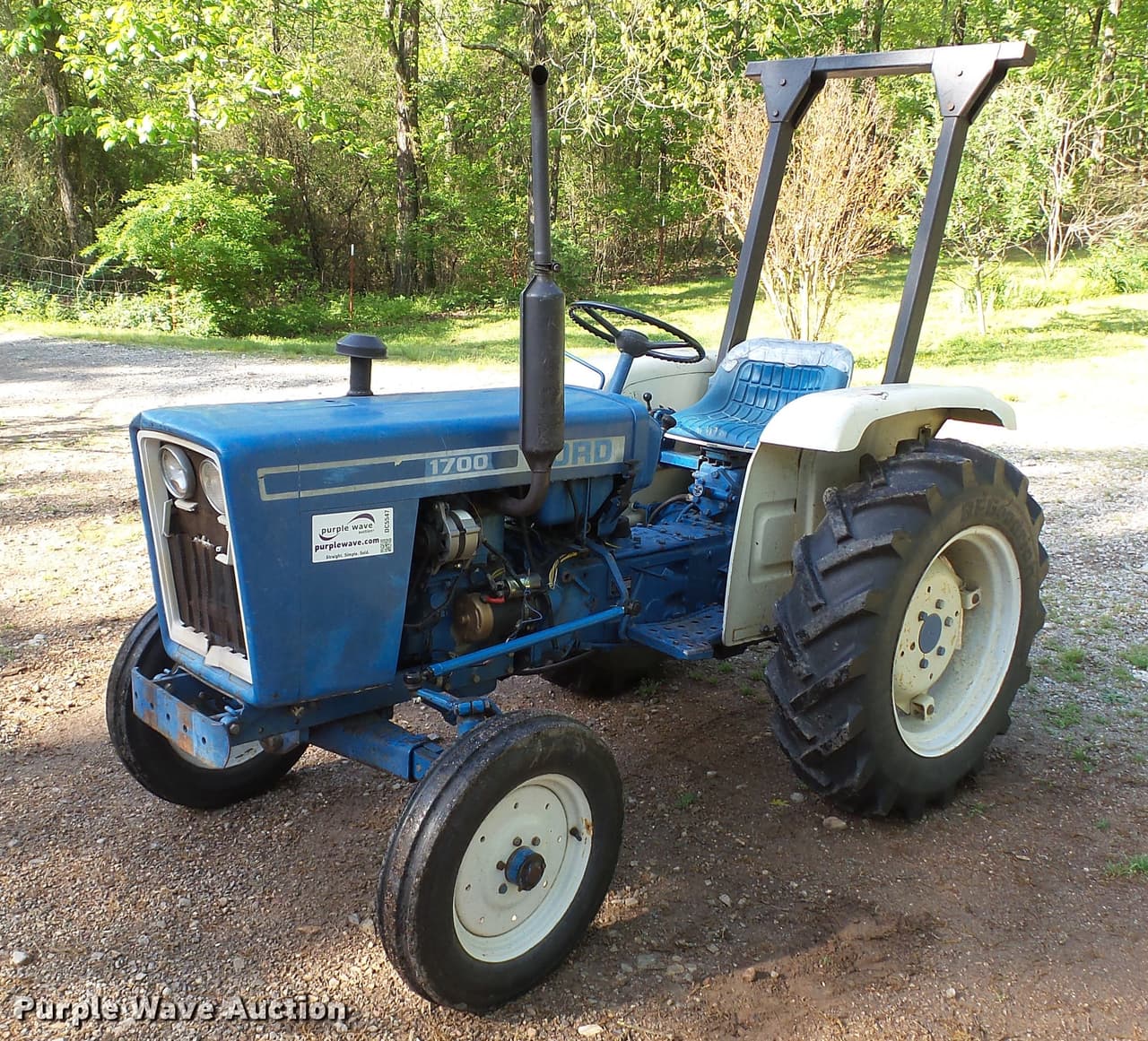

Ford 1700 photos
FAQ
Common questions
When was the Ford 1700 made?
The Ford 1700 was manufactured from 1979 to 1982.
Which transmission does the Ford 1700 use?
The Ford 1700 is equipped with a Gear shift transmission with 12 forward gears.
What hydraulics does the Ford 1700 have?
The Ford 1700 uses an Open center hydraulic system.
What three-point hitch category does the Ford 1700 use?
The Ford 1700 has a Category I three-point hitch.
What is the engine power output of the Ford 1700?
Rated engine output for the Ford 1700 is 23.9 hp, delivered by a 2-cylinder engine. The engine displaces 77.7 ci.
What is the operating weight of the Ford 1700?
In working trim, the Ford 1700 comes in at roughly 2,444 lb.
How do I maintain a Ford 1700?
Routine service for the Ford 1700 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
