Ford 946
The Ford 946 is a powerful tractor made from 1989 to 1993. It has a strong Cummins engine with 6 cylinders and 325 horsepower. This engine is turbocharged and uses diesel fuel. The tractor has a full power shift transmission with 12 forward gears and 2 reverse gears, giving the driver lots of options. This big tractor weighs 32,500 pounds and is 260 inches long and 131 inches tall. It has a closed center load sensing hydraulic system and a Category 3 hitch at the back. The Ford 946 comes with a comfortable cab for the driver and uses agricultural tires. It has a large coolant capacity of 63.7 quarts to keep the engine running smoothly. With its electric starter and liquid-cooled engine, this tractor is built for hard work on the farm.
ManufacturerFordPower325 hpEngine6-cylTransFull Power Shift
Quick specs
- Category
- Agricultural
- Engine Power Output
- 325hp
- Operating Weight
- 32,500 lb
- Transmission
- Full Power Shift
At a glance
How the 946 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
325 hp · 95th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 946 ranks at the 95th percentile for engine power among recorded agricultural tractors.
Overview
About the Ford 946
The Ford 946 is a powerful tractor made from 1989 to 1993. It has a strong Cummins engine with 6 cylinders and 325 horsepower. This engine is turbocharged and uses diesel fuel. The tractor has a full power shift transmission with 12 forward gears and 2 reverse gears, giving the driver lots of options. This big tractor weighs 32,500 pounds and is 260 inches long and 131 inches tall. It has a closed center load sensing hydraulic system and a Category 3 hitch at the back. The Ford 946 comes with a comfortable cab for the driver and uses agricultural tires. It has a large coolant capacity of 63.7 quarts to keep the engine running smoothly. With its electric starter and liquid-cooled engine, this tractor is built for hard work on the farm.
Full specifications
Every recorded spec
General
| Manufacturer | Ford |
|---|---|
| Model | 946 |
| Category | Agricultural tractor |
| Years built | 1989–1993 |
| Operating weight | 32,500lb |
Engine
| Make | Cummins |
|---|---|
| Model | NTA-855-A325 |
| Power | 325hp |
| Cylinders | 6 |
| Displacement | 855ci |
| Bore | 5.5in |
| Stroke | 6in |
Transmission
| Type | Full Power Shift |
|---|---|
| Forward gears | 12 |
| Reverse gears | 2 |
Chassis & drive
| Cab | Cab |
|---|
Hydraulics
| Type | Closed Center Load Sensing |
|---|
Dimensions
| Length | 260in |
|---|---|
| Height | 131in |
| Operating weight | 32,500lb |
Capacities
| Cooling system | 15.93gal |
|---|
Head to head
946 vs. Agricultural median
How the Ford 946 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 325 hp | 110 hp | +195% | 95th |
| Engine Displacement | 855 ci | 336 ci | +155% | 97th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 12 | 16 | -25% | 33rd |
| Operating Weight | 32,500 lb | 10,914 lb | +198% | 96th |
| Length | 260 in | 173 in | +50% | 97th |
| Height | 131 in | 111 in | +18% | 91st |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Ford tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Big Bud HN320 | 320 hp | 36,000 lb | — | Compare → |
| AGCO DT275B | 316.6 hp | 25,840 lb | 2009–2010 | Compare → |
| CaseIH 9170 | 335 hp | — | — | Compare → |
| CaseIH 9270 | 335 hp | 34,045 lb | — | Compare → |
| CaseIH 9350 | 310 hp | 28,720 lb | — | Compare → |
Explore
Ford siblings
Explore
Similar-spec models
Gallery

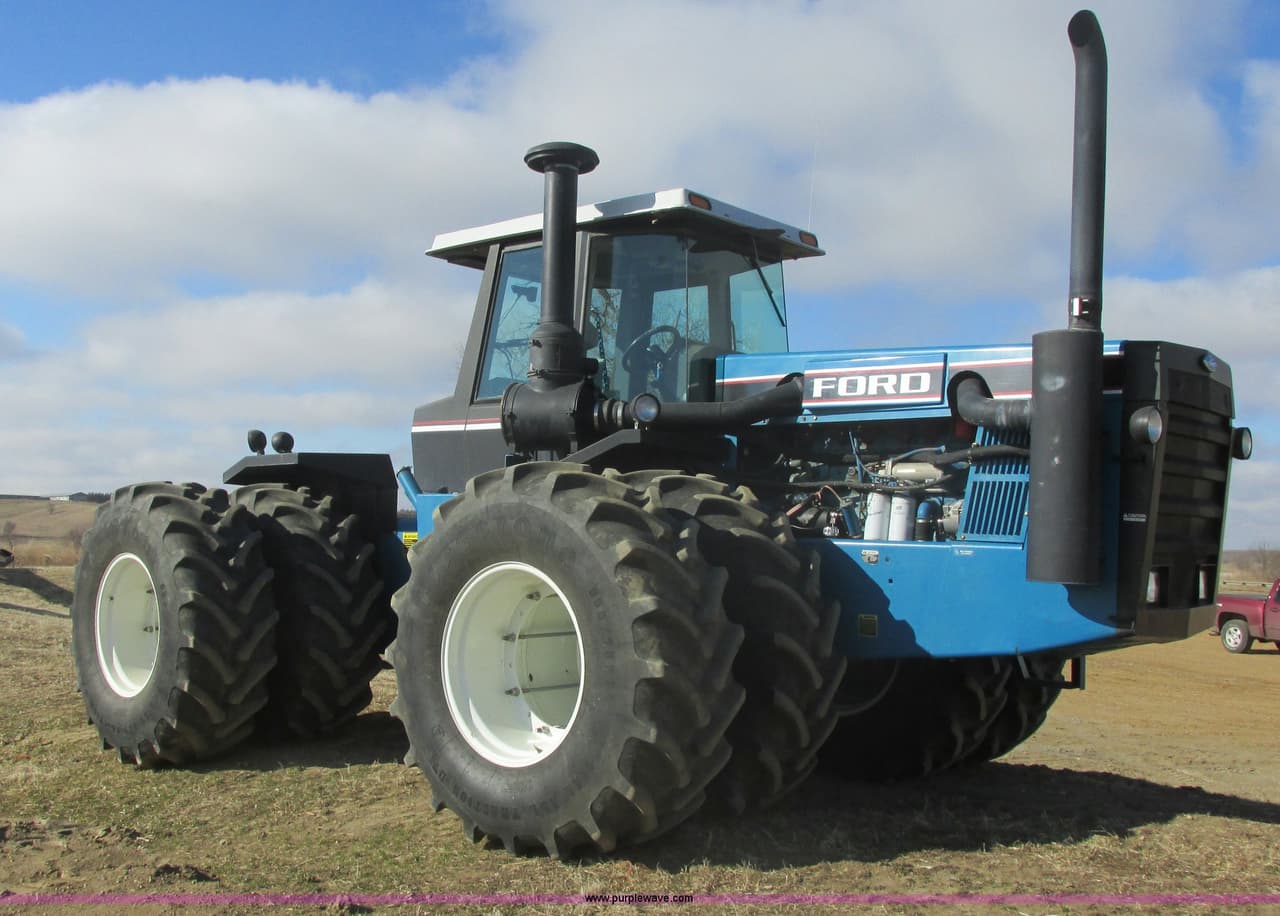

Ford 946 photos
FAQ
Common questions
When was the Ford 946 in production?
Ford 946 production started in 1989 and ended in 1993.
What type of hydraulic system does the Ford 946 use?
Hydraulics on the Ford 946 are Closed Center Load Sensing.
What hitch category is the Ford 946?
The Ford 946 uses a Category Category 3 hitch.
How much horsepower does the Ford 946 have?
The Ford 946 produces 325 hp from its 6-cylinder engine. Engine displacement is 855 ci.
How much does the Ford 946 weigh?
The Ford 946 weighs about 32,500 lb in operating condition.
What transmission is in the Ford 946?
Transmission on the Ford 946 is Full Power Shift, with 12 forward speeds.
What maintenance does the Ford 946 require?
Like any tractor, the Ford 946 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
