Lawn and GardenPerformance profile
Hinomoto E14

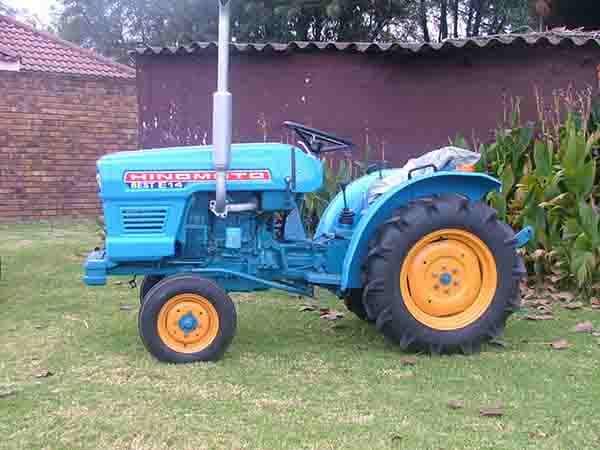

The Hinomoto E14 is a compact tractor designed for small farms and gardens. It's powered by a Toyosha S88 diesel engine with two cylinders and 13.8 horsepower. This liquid-cooled engine runs at 2300 rpm, making it suitable for various tasks around the farm. The E14 has a gear transmission with six forward gears and two reverse gears, giving the operator good control over speed and power. It features a three-point hitch (category I) for attaching implements, and three PTO speeds (547, 875, and 1000 rpm) for running different tools. The tractor measures 87.2 inches long, 40.9 inches wide, and 46.7 inches tall, with a weight of 1538 pounds. It has agricultural tires on both front and rear, and an electric starter for easy operation. With 10.7 inches of ground clearance and a 12-volt electrical system, the Hinomoto E14 is a versatile and reliable choice for small-scale farming needs.
ManufacturerHinomotoPower13.8 hpEngine2-cylTransGear
Quick specs
- Category
- Lawn and Garden
- Engine Power Output
- 14hp
- Operating Weight
- 1,538 lb
- Transmission
- Gear
At a glance
How the E14 compares
vs. Lawn and Garden medianDistribution
Engine Power (hp)
Across all Lawn and Garden tractors
13.8 hp · 24th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The E14 ranks at the 24th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Hinomoto E14
The Hinomoto E14 is a compact tractor designed for small farms and gardens. It's powered by a Toyosha S88 diesel engine with two cylinders and 13.8 horsepower. This liquid-cooled engine runs at 2300 rpm, making it suitable for various tasks around the farm. The E14 has a gear transmission with six forward gears and two reverse gears, giving the operator good control over speed and power. It features a three-point hitch (category I) for attaching implements, and three PTO speeds (547, 875, and 1000 rpm) for running different tools. The tractor measures 87.2 inches long, 40.9 inches wide, and 46.7 inches tall, with a weight of 1538 pounds. It has agricultural tires on both front and rear, and an electric starter for easy operation. With 10.7 inches of ground clearance and a 12-volt electrical system, the Hinomoto E14 is a versatile and reliable choice for small-scale farming needs.
Full specifications
Every recorded spec
General
| Manufacturer | Hinomoto |
|---|---|
| Model | E14 |
| Category | Lawn and Garden tractor |
| Operating weight | 1,538lb |
Engine
| Make | Toyosha |
|---|---|
| Model | S88 |
| Power | 13.8hp |
| Cylinders | 2 |
| Displacement | 54.07ci |
| Bore | 3.31in |
| Stroke | 3.15in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Power take-off
| PTO speed | 547rpm |
|---|
Dimensions
| Length | 87.2in |
|---|---|
| Width | 40.9in |
| Height | 46.7in |
| Operating weight | 1,538lb |
Head to head
E14 vs. Lawn and Garden median
How the Hinomoto E14 compares to other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 13.8 hp | 18 hp | -23% | 24th |
| Engine Displacement | 54.1 ci | 41.1 ci | +32% | 77th |
| Cylinders | 2 | 2 | at median | 50th |
| Forward Gears | 6 | 6 | at median | 50th |
| Operating Weight | 1,538 lb | 738 lb | +108% | 77th |
| Length | 87.2 in | 71.7 in | +22% | 82nd |
| Width | 40.9 in | 43.3 in | -6% | 38th |
| Height | 46.7 in | 42.9 in | +9% | 68th |
Medians and percentiles are computed from the lawn and garden tractors in our database with a recorded value for each spec (sample sizes 152–380 models).
Compare to tractors with similar specs
Commonly compared Hinomoto tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hinomoto C172 | 19.7 hp | 1,280 lb | — | Compare → |
| Hinomoto E202 | 19.7 hp | 1,905 lb | — | Compare → |
| Hinomoto E2002 | 20 hp | 2,033 lb | — | Compare → |
| Hinomoto E21 | 21 hp | 1,973 lb | — | Compare → |
| Hinomoto E182 | — | 1,723 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Cub Cadet 1440 | 14 hp | 763 lb | — | Compare → |
| Cub Cadet 1450 | 14 hp | — | 1974–1980 | Compare → |
| Bolens G152 | 15 hp | 1,034 lb | — | Compare → |
| Bolens G154 | 15 hp | 1,124 lb | — | Compare → |
| Bolens H1502 | 15 hp | 1,080 lb | — | Compare → |
Explore
Hinomoto siblings
Explore
Similar-spec models
Gallery
Hinomoto E14 photos
FAQ
Common questions
What is the engine power output of the Hinomoto E14?
Rated engine output for the Hinomoto E14 is 13.8 hp, delivered by a 2-cylinder engine. The engine displaces 54.07 ci.
Which transmission does the Hinomoto E14 use?
The Hinomoto E14 is equipped with a Gear transmission with 6 forward gears.
What three-point hitch category does the Hinomoto E14 use?
The Hinomoto E14 has a Category I three-point hitch.
What is the operating weight of the Hinomoto E14?
In working trim, the Hinomoto E14 comes in at roughly 1,538 lb.
How do I maintain a Hinomoto E14?
Routine service for the Hinomoto E14 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
