Sub-CompactPerformance profile
Hinomoto E2302
The Hinomoto E2302 is a compact tractor designed for various farming tasks. It features a 12-speed forward and 4-speed reverse transmission, giving farmers 16 gears to choose from. This wide range of speeds helps with different jobs around the farm. Under the hood, the E2302 has a Toyosha MS142 engine. This engine is liquid-cooled and runs on diesel fuel. It has 3 cylinders and a displacement of 86.96 cubic inches. The engine puts out 22.7 horsepower at 2500 RPM, which is enough power for many farm chores. The tractor's size is compact, measuring 100 inches long, 48 inches wide, and 74 inches tall. It weighs 2053 pounds, making it sturdy but not too heavy for the average farm.
ManufacturerHinomotoPower22.7 hpEngine3-cyl
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 23hp
- Operating Weight
- 2,053 lb
At a glance
How the E2302 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
22.7 hp · 35th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The E2302 ranks at the 35th percentile for engine power among recorded sub-compact tractors.
Overview
About the Hinomoto E2302
The Hinomoto E2302 is a compact tractor designed for various farming tasks. It features a 12-speed forward and 4-speed reverse transmission, giving farmers 16 gears to choose from. This wide range of speeds helps with different jobs around the farm. Under the hood, the E2302 has a Toyosha MS142 engine. This engine is liquid-cooled and runs on diesel fuel. It has 3 cylinders and a displacement of 86.96 cubic inches. The engine puts out 22.7 horsepower at 2500 RPM, which is enough power for many farm chores. The tractor's size is compact, measuring 100 inches long, 48 inches wide, and 74 inches tall. It weighs 2053 pounds, making it sturdy but not too heavy for the average farm.
Full specifications
Every recorded spec
General
| Manufacturer | Hinomoto |
|---|---|
| Model | E2302 |
| Category | Sub-Compact tractor |
| Operating weight | 2,053lb |
Engine
| Make | Toyosha |
|---|---|
| Model | MS142 |
| Power | 22.7hp |
| Cylinders | 3 |
| Displacement | 86.96ci |
| Bore | 3.32in |
| Stroke | 3.54in |
Transmission
| Forward gears | 12 |
|---|---|
| Reverse gears | 4 |
Dimensions
| Length | 100in |
|---|---|
| Width | 48in |
| Height | 74in |
| Operating weight | 2,053lb |
Head to head
E2302 vs. Sub-Compact median
How the Hinomoto E2302 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22.7 hp | 26.9 hp | -15% | 35th |
| Engine Displacement | 87 ci | 91.4 ci | -5% | 46th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 2,053 lb | 2,700 lb | -24% | 37th |
| Length | 100 in | 113 in | -12% | 30th |
| Width | 48 in | 50.7 in | -5% | 42nd |
| Height | 74 in | 78.4 in | -6% | 38th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Hinomoto tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hinomoto Hotshot E230 | 22.7 hp | 1,868 lb | — | Compare → |
| Hinomoto E232 | 23 hp | 2,134 lb | — | Compare → |
| Hinomoto E234 | 23 hp | 2,134 lb | — | Compare → |
| Hinomoto E2340 | 23 hp | — | — | Compare → |
| Hinomoto E2202 | 22 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST22A | 22.5 hp | 1,600 lb | — | Compare → |
| AGCO ST24A | 22.5 hp | 1,800 lb | — | Compare → |
| Bolens HT23 | 23 hp | 1,098 lb | 1979–1987 | Compare → |
| Allis Chalmers CA | 23.1 hp | 2,835 lb | 1950–1958 | Compare → |
| Allis Chalmers D270 | 22 hp | 2,500 lb | — | Compare → |
Explore
Hinomoto siblings
Explore
Similar-spec models
Gallery

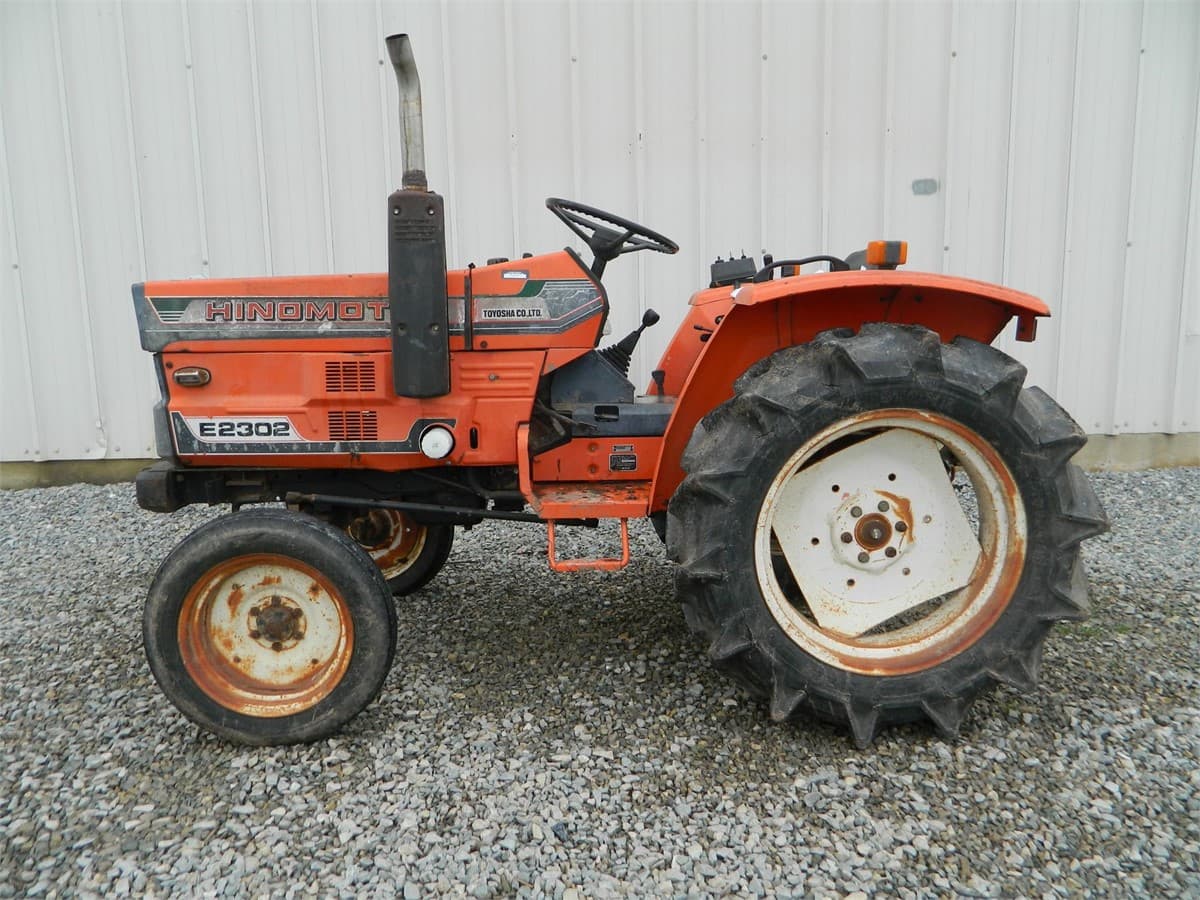

Hinomoto E2302 photos
FAQ
Common questions
What is the engine power output of the Hinomoto E2302?
Rated engine output for the Hinomoto E2302 is 22.7 hp, delivered by a 3-cylinder engine. The engine displaces 86.96 ci.
What is the operating weight of the Hinomoto E2302?
In working trim, the Hinomoto E2302 comes in at roughly 2,053 lb.
How do I maintain a Hinomoto E2302?
Routine service for the Hinomoto E2302 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
