Yanmar F235
The Yanmar F235 is a compact 2WD tractor designed for small farms and gardens. It features a 9-forward and 3-reverse gear transmission, giving operators good control over their speed. The tractor is powered by a Yanmar 3TNB84 engine, which is a liquid-cooled, 3-cylinder diesel engine. This engine produces 22.7 horsepower at 2500 RPM, making it suitable for light to medium-duty tasks. The F235 has a sturdy build, measuring 111.8 inches long, 48.8 inches wide, and 58.1 inches tall. It weighs 2072 pounds, which helps with stability during operation. The tractor comes with agricultural tires on both front and rear, providing good traction in farm conditions. It has a JIS1 hitch category, allowing it to work with various implements. The electric starter and 12-volt electrical system make it easy to get the tractor running and power accessories.

Key specifications
- Category
- Sub-Compact
- Engine power
- 23hp
- Operating weight
- 2,072 lb
- Transmission
- Gear
Category comparison
F235 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
This model
The F235 ranks at the 35th percentile for engine power among recorded sub-compact tractors.
Overview
About the Yanmar F235
The Yanmar F235 is a compact 2WD tractor designed for small farms and gardens. It features a 9-forward and 3-reverse gear transmission, giving operators good control over their speed. The tractor is powered by a Yanmar 3TNB84 engine, which is a liquid-cooled, 3-cylinder diesel engine. This engine produces 22.7 horsepower at 2500 RPM, making it suitable for light to medium-duty tasks. The F235 has a sturdy build, measuring 111.8 inches long, 48.8 inches wide, and 58.1 inches tall. It weighs 2072 pounds, which helps with stability during operation. The tractor comes with agricultural tires on both front and rear, providing good traction in farm conditions. It has a JIS1 hitch category, allowing it to work with various implements. The electric starter and 12-volt electrical system make it easy to get the tractor running and power accessories.
Full specifications
Recorded specifications
General
| Manufacturer | Yanmar |
|---|---|
| Model | F235 |
| Category | Sub-Compact tractor |
| Type | 2WD |
| Operating weight | 2,072lb(939.8 kg) |
Engine
| Make | Yanmar |
|---|---|
| Model | 3TNB84 |
| Power | 22.7hp(16.93 kW) |
| Cylinders | 3 |
| Displacement | 89.3ci(1.46 L) |
| Bore | 3.31in(84.07 mm) |
| Stroke | 3.46in(87.88 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Drive | 2WD |
|---|
Dimensions
| Length | 111.8in(2,840 mm) |
|---|---|
| Width | 48.8in(1,240 mm) |
| Height | 58.1in(1,476 mm) |
| Operating weight | 2,072lb(939.8 kg) |
Closest alternatives
F235 compared with the nearest models by horsepower
The closest sub-compact models to the Yanmar F235 by rated horsepower are the Hinomoto E2302 and the Hinomoto Hotshot E230. The Hinomoto E2302 matches it on rated power at almost the same operating weight. The Hinomoto Hotshot E230 matches it on rated power and weighs 200 lb less, carrying 82 lb per horsepower against 91 lb. Of the 3 models, the F235 has the highest weight per horsepower at 91 lb per hp.
| Spec | Yanmar F235 | Hinomoto E2302 | Hinomoto Hotshot E230 |
|---|---|---|---|
| Engine power | 22.7 hp16.9 kW | 22.7 hp16.9 kW | 22.7 hp16.9 kW |
| Operating weight | 2,072 lb940 kg | 2,053 lb931 kg | 1,868 lb847 kg |
| Weight per hp | 91 lb/hp56 kg/kW | 90 lb/hp55 kg/kW | 82 lb/hp50 kg/kW |
| Displacement | 89.3 ci1.46 L | 87 ci1.43 L | 77.1 ci1.26 L |
| Cylinders | 3 | 3 | 2 |
| Transmission | Gear | - | Gear |
Calculators
Calculators for the F235
PTO power
About 19 to 20 PTO hp
Estimated from the 22.7 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 22.7 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
106 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
22.7 hp is 16.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Yanmar F235
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Yanmar 3TNB84Amazon
Fits the Yanmar 3TNB84 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Yanmar 3TNB84Amazon
Fits the Yanmar 3TNB84 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Yanmar 3TNB84Amazon
Fits the Yanmar 3TNB84 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Yanmar 3TNB84Amazon
Fits the Yanmar 3TNB84 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Yanmar F235 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- Yanmar F235 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- Yanmar F235 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
F235 vs. Sub-Compact median
Yanmar F235 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 22.7 hp | 26.9 hp | -15% | 35th |
| Engine Displacement | 89.3 ci | 91.4 ci | -2% | 47th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 9 | 9 | at median | 50th |
| Operating Weight | 2,072 lb | 2,700 lb | -23% | 38th |
| Length | 112 in | 113 in | -1% | 47th |
| Width | 48.8 in | 50.7 in | -4% | 44th |
| Height | 58.1 in | 78.4 in | -26% | 19th |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 584–816 models).
Same manufacturer
Other Yanmar models
Other manufacturers
Models with similar horsepower
Gallery

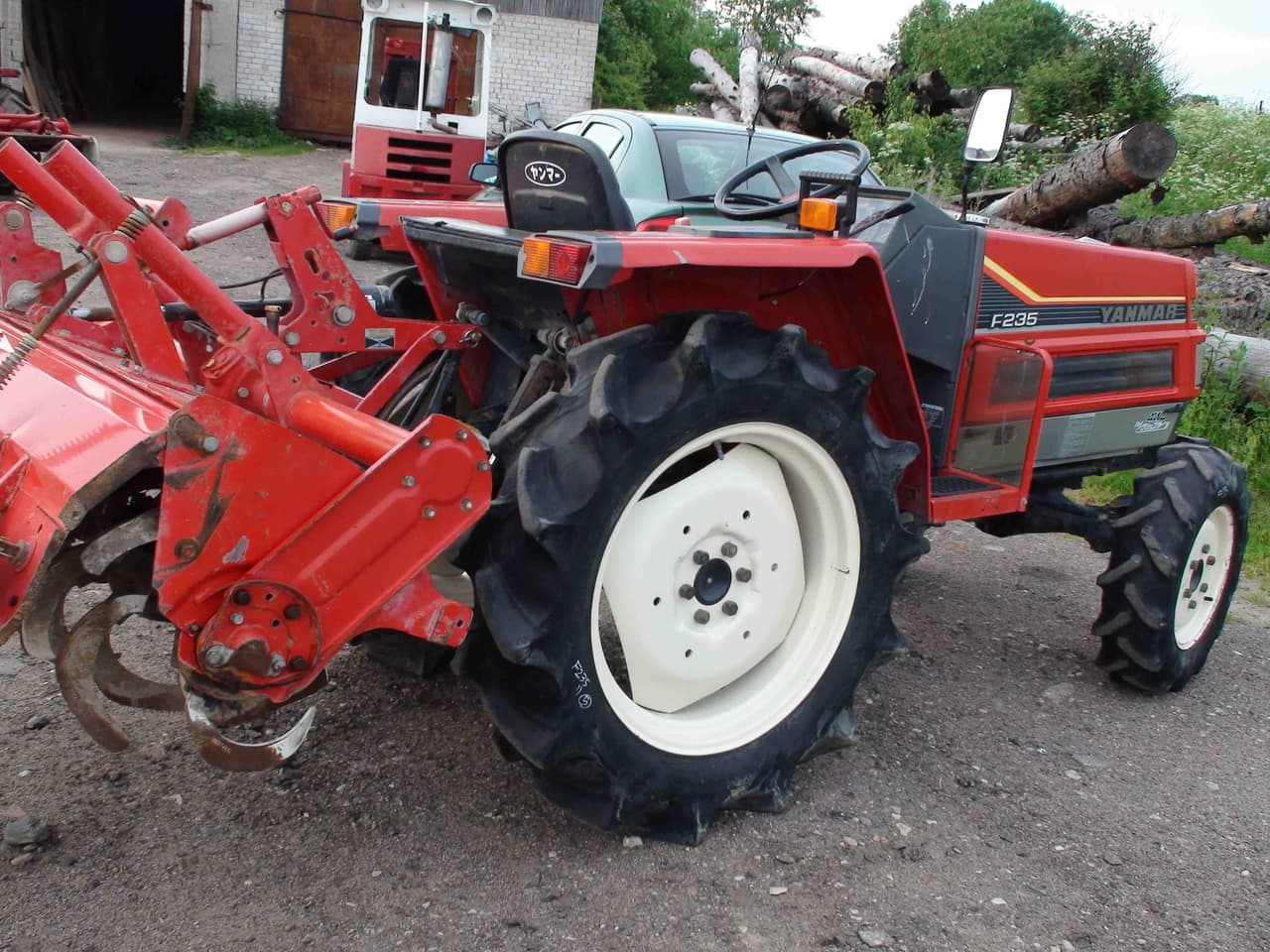

Yanmar F235 photos




FAQ
Frequently asked questions
How much horsepower does the Yanmar F235 have?
The Yanmar F235 produces 22.7 hp from its 3-cylinder engine. Engine displacement is 89.3 ci.
How much does the Yanmar F235 weigh?
The Yanmar F235 weighs about 2,072 lb in operating condition.
What transmission is in the Yanmar F235?
Transmission on the Yanmar F235 is Gear, with 9 forward speeds.
What hitch category is the Yanmar F235?
The Yanmar F235 uses a Category JIS1 hitch.
What maintenance does the Yanmar F235 require?
The Yanmar F235 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
