Sub-CompactPerformance profile
Hinomoto MB-1500
The Hinomoto MB-1500 is a compact tractor designed for small farms and gardens. It's powered by a single-cylinder, air-cooled gasoline engine made by Toyosha. This engine, model TE-150, produces 17 horsepower at 2800 rpm, making it suitable for light to medium tasks around the farm. The MB-1500 features a gear transmission with 6 forward speeds and 2 reverse speeds, giving operators good control over their work pace. It has agricultural tires front and rear, with the front tires measuring 9 inches in diameter and the rear tires 16 inches. The tractor's compact size, measuring 74.8 inches long, 41.7 inches wide, and 46.1 inches high, makes it easy to maneuver in tight spaces. Weighing 1025 pounds, it's light enough to avoid excessive soil compaction but still sturdy for its size. The open operator station and electric starter add to its user-friendly design.
ManufacturerHinomotoPower17 hpEngine1-cylTransGear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 17hp
- Operating Weight
- 1,025 lb
- Transmission
- Gear
At a glance
How the MB-1500 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
17 hp · 15th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The MB-1500 ranks at the 15th percentile for engine power among recorded sub-compact tractors.
Overview
About the Hinomoto MB-1500
The Hinomoto MB-1500 is a compact tractor designed for small farms and gardens. It's powered by a single-cylinder, air-cooled gasoline engine made by Toyosha. This engine, model TE-150, produces 17 horsepower at 2800 rpm, making it suitable for light to medium tasks around the farm. The MB-1500 features a gear transmission with 6 forward speeds and 2 reverse speeds, giving operators good control over their work pace. It has agricultural tires front and rear, with the front tires measuring 9 inches in diameter and the rear tires 16 inches. The tractor's compact size, measuring 74.8 inches long, 41.7 inches wide, and 46.1 inches high, makes it easy to maneuver in tight spaces. Weighing 1025 pounds, it's light enough to avoid excessive soil compaction but still sturdy for its size. The open operator station and electric starter add to its user-friendly design.
Full specifications
Every recorded spec
General
| Manufacturer | Hinomoto |
|---|---|
| Model | MB-1500 |
| Category | Sub-Compact tractor |
| Operating weight | 1,025lb |
Engine
| Make | Toyosha |
|---|---|
| Model | TE-150 |
| Power | 17hp |
| Cylinders | 1 |
| Displacement | 38.4ci |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Chassis & drive
| Cab | Open |
|---|
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 74.8in |
|---|---|
| Width | 41.7in |
| Height | 46.1in |
| Operating weight | 1,025lb |
Head to head
MB-1500 vs. Sub-Compact median
How the Hinomoto MB-1500 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 17 hp | 26.9 hp | -37% | 15th |
| Engine Displacement | 38.4 ci | 91.4 ci | -58% | 3rd |
| Cylinders | 1 | 3 | -67% | 2nd |
| Forward Gears | 6 | 9 | -33% | 18th |
| Operating Weight | 1,025 lb | 2,700 lb | -62% | 1st |
| Length | 74.8 in | 113 in | -34% | 2nd |
| Width | 41.7 in | 50.7 in | -18% | 18th |
| Height | 46.1 in | 78.4 in | -41% | 5th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Hinomoto tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Hinomoto E15 | 15.8 hp | 1,538 lb | — | Compare → |
| Hinomoto E16 | 15.8 hp | 1,760 lb | — | Compare → |
| Hinomoto Plainsman E150 | 15 hp | 1,360 lb | — | Compare → |
| Hinomoto C174 | 19.7 hp | 1,600 lb | — | Compare → |
| Hinomoto E204 | 19.7 hp | 2,066 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Ariens GT17 | 17 hp | 926 lb | 1979–1987 | Compare → |
| Bolens G172 | 17 hp | 1,056 lb | — | Compare → |
| Bolens G174 | 17 hp | 1,144 lb | — | Compare → |
| Bolens H1704 | 17 hp | 1,268 lb | — | Compare → |
| Allis Chalmers 616 | 16.5 hp | 1,499 lb | 1972–1973 | Compare → |
Explore
Hinomoto siblings
Explore
Similar-spec models
Gallery

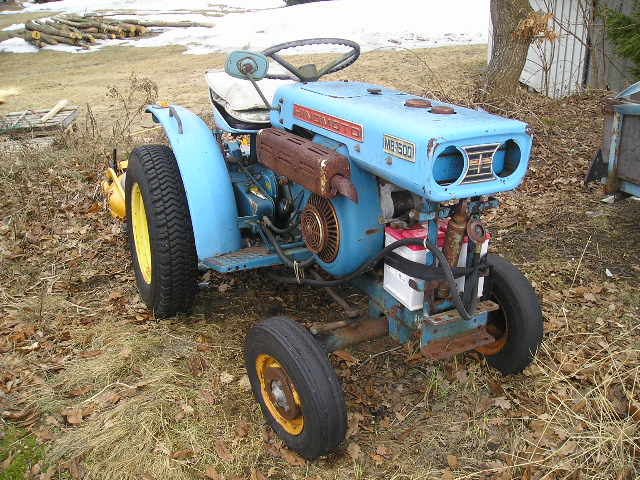

Hinomoto MB-1500 photos
FAQ
Common questions
How much horsepower does the Hinomoto MB-1500 have?
The Hinomoto MB-1500 produces 17 hp from its 1-cylinder engine. Engine displacement is 38.4 ci.
How much does the Hinomoto MB-1500 weigh?
The Hinomoto MB-1500 weighs about 1,025 lb in operating condition.
What transmission is in the Hinomoto MB-1500?
Transmission on the Hinomoto MB-1500 is Gear, with 6 forward speeds.
What hydraulics does the Hinomoto MB-1500 have?
The Hinomoto MB-1500 uses an Open center hydraulic system.
What maintenance does the Hinomoto MB-1500 require?
Like any tractor, the Hinomoto MB-1500 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
