Sub-CompactPerformance profile
IMT 539 P
The IMT 539 P is a compact 2WD tractor designed for various farming tasks. It features a 4x2 chassis and mechanical steering, making it easy to handle in the field. The tractor comes with a gear transmission that offers 12 forward and 4 reverse speeds, giving farmers plenty of options for different jobs. Under the hood, the IMT 539 P is powered by an IMT M 33/T engine. This 3-cylinder diesel engine has a displacement of 152.6 cubic inches and runs at 2000 RPM. It produces 40 horsepower, which is suitable for small to medium-sized farms. The engine is liquid-cooled and naturally aspirated, ensuring reliable performance in various conditions. The tractor measures 126.8 inches long and 87.4 inches tall, with a weight of 4046 pounds. It's equipped with agricultural tires and a category III hitch, making it versatile for attaching different implements.
ManufacturerIMTPower40 hpEngine3-cylTransGear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 40hp
- Operating Weight
- 4,046 lb
- Transmission
- Gear
At a glance
How the 539 P compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
40 hp · 76th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 539 P ranks at the 76th percentile for engine power among recorded sub-compact tractors.
Overview
About the IMT 539 P
The IMT 539 P is a compact 2WD tractor designed for various farming tasks. It features a 4x2 chassis and mechanical steering, making it easy to handle in the field. The tractor comes with a gear transmission that offers 12 forward and 4 reverse speeds, giving farmers plenty of options for different jobs. Under the hood, the IMT 539 P is powered by an IMT M 33/T engine. This 3-cylinder diesel engine has a displacement of 152.6 cubic inches and runs at 2000 RPM. It produces 40 horsepower, which is suitable for small to medium-sized farms. The engine is liquid-cooled and naturally aspirated, ensuring reliable performance in various conditions. The tractor measures 126.8 inches long and 87.4 inches tall, with a weight of 4046 pounds. It's equipped with agricultural tires and a category III hitch, making it versatile for attaching different implements.
Full specifications
Every recorded spec
General
| Manufacturer | IMT |
|---|---|
| Model | 539 P |
| Category | Sub-Compact tractor |
| Type | 4x2 |
| Operating weight | 4,046lb |
Engine
| Make | IMT |
|---|---|
| Model | M 33/T |
| Power | 40hp |
| Cylinders | 3 |
| Displacement | 152.6ci |
| Bore | 3.6in |
| Stroke | 5in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Mechanical |
Dimensions
| Length | 126.8in |
|---|---|
| Height | 87.4in |
| Operating weight | 4,046lb |
Head to head
539 P vs. Sub-Compact median
How the IMT 539 P compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 26.9 hp | +49% | 76th |
| Engine Displacement | 153 ci | 91.4 ci | +67% | 85th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 12 | 9 | +33% | 73rd |
| Operating Weight | 4,046 lb | 2,700 lb | +50% | 80th |
| Length | 127 in | 113 in | +12% | 71st |
| Height | 87.4 in | 78.4 in | +11% | 68th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 616–816 models).
Compare to tractors with similar specs
Commonly compared IMT tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
IMT siblings
Explore
Similar-spec models
Gallery

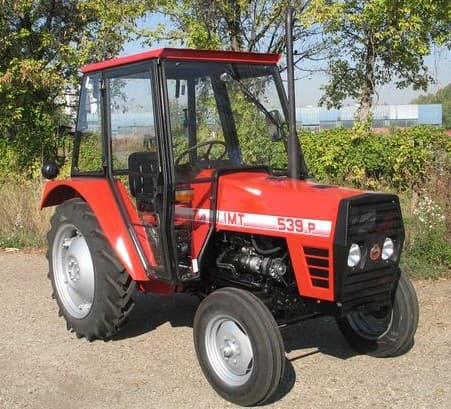

IMT 539 P photos
FAQ
Common questions
How much horsepower does the IMT 539 P have?
The IMT 539 P produces 40 hp from its 3-cylinder engine. Engine displacement is 152.6 ci.
How much does the IMT 539 P weigh?
The IMT 539 P weighs about 4,046 lb in operating condition.
What transmission is in the IMT 539 P?
Transmission on the IMT 539 P is Gear, with 12 forward speeds.
What hitch category is the IMT 539 P?
The IMT 539 P uses a Category III hitch.
What maintenance does the IMT 539 P require?
Like any tractor, the IMT 539 P needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
