Brand siblingSub-CompactPerformance profile
IMT 542
The IMT 542 is a compact and versatile 2WD tractor designed for various farming tasks. It features a 4x2 chassis and power steering, making it easy to maneuver in tight spaces. The tractor has a manual gear transmission with 10 forward gears and 2 reverse gears, giving farmers plenty of options for different jobs. Under the hood, the IMT 542 boasts a 3-cylinder diesel engine made by IMT. This naturally aspirated engine has a displacement of 152.6 cubic inches and produces 42 horsepower at 2250 RPM. The tractor's engine is built for reliability and efficiency, with a bore of 3.6 inches and a stroke of 5 inches. It rides on agricultural tires, with 6.00-16 tires in front and larger 12.4-28 tires in the rear. The IMT 542 measures 128.3 inches long and 90.2 inches tall, with an operating weight of 4818 pounds, making it a sturdy yet manageable machine for everyday farm use.
ManufacturerIMTPower42 hpEngine3-cylTransManual Gear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 42hp
- Operating Weight
- 4,818 lb
- Transmission
- Manual Gear
At a glance
How the 542 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
42 hp · 80th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 542 ranks at the 80th percentile for engine power among recorded sub-compact tractors.
Overview
About the IMT 542
The IMT 542 is a compact and versatile 2WD tractor designed for various farming tasks. It features a 4x2 chassis and power steering, making it easy to maneuver in tight spaces. The tractor has a manual gear transmission with 10 forward gears and 2 reverse gears, giving farmers plenty of options for different jobs. Under the hood, the IMT 542 boasts a 3-cylinder diesel engine made by IMT. This naturally aspirated engine has a displacement of 152.6 cubic inches and produces 42 horsepower at 2250 RPM. The tractor's engine is built for reliability and efficiency, with a bore of 3.6 inches and a stroke of 5 inches. It rides on agricultural tires, with 6.00-16 tires in front and larger 12.4-28 tires in the rear. The IMT 542 measures 128.3 inches long and 90.2 inches tall, with an operating weight of 4818 pounds, making it a sturdy yet manageable machine for everyday farm use.
Full specifications
Every recorded spec
General
| Manufacturer | IMT |
|---|---|
| Model | 542 |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Operating weight | 4,818lb |
Engine
| Make | IMT |
|---|---|
| Model | M 33/T |
| Power | 42hp |
| Cylinders | 3 |
| Displacement | 152.6ci |
| Bore | 3.6in |
| Stroke | 5in |
Transmission
| Type | Manual Gear |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 128.3in |
|---|---|
| Height | 90.2in |
| Operating weight | 4,818lb |
Head to head
542 vs. Sub-Compact median
How the IMT 542 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 42 hp | 26.9 hp | +56% | 80th |
| Engine Displacement | 153 ci | 91.4 ci | +67% | 85th |
| Cylinders | 3 | 3 | at median | 50th |
| Forward Gears | 10 | 9 | +11% | 62nd |
| Operating Weight | 4,818 lb | 2,700 lb | +78% | 91st |
| Length | 128 in | 113 in | +13% | 75th |
| Height | 90.2 in | 78.4 in | +15% | 76th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 616–816 models).
Compare to tractors with similar specs
Commonly compared IMT tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers ED40 | 41 hp | 3,527 lb | — | Compare → |
| AGCO ST40 | 40.1 hp | 3,323 lb | — | Compare → |
| AGCO ST41A | 40.1 hp | 3,000 lb | — | Compare → |
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
Explore
IMT siblings
Explore
Similar-spec models
Gallery

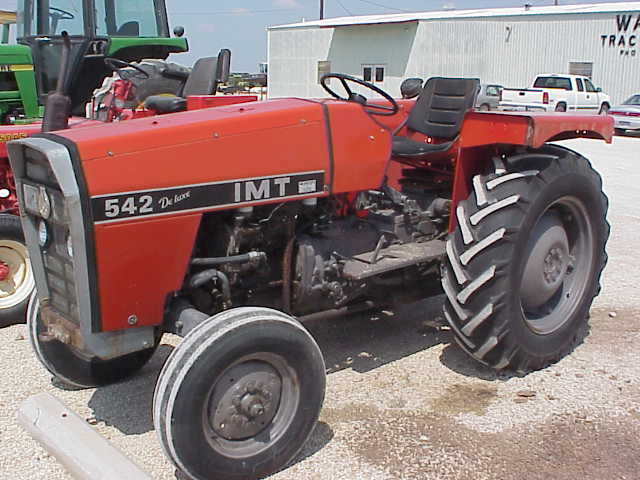

IMT 542 photos
FAQ
Common questions
What is the engine power output of the IMT 542?
Rated engine output for the IMT 542 is 42 hp, delivered by a 3-cylinder engine. The engine displaces 152.6 ci.
What is the operating weight of the IMT 542?
In working trim, the IMT 542 comes in at roughly 4,818 lb.
Which transmission does the IMT 542 use?
The IMT 542 is equipped with a Manual Gear transmission with 10 forward gears.
How do I maintain a IMT 542?
Routine service for the IMT 542 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
