Iseki TA505
The Iseki TA505 is a powerful and versatile tractor designed for various farming tasks. It features a robust Isuzu 4JB1 engine with 4 cylinders and 169.1 cubic inches of displacement. This liquid-cooled diesel engine produces 49.3 horsepower at 2500 RPM, providing plenty of power for most agricultural needs. The TA505 boasts a flexible transmission with 16 forward and 16 reverse gears, giving operators excellent control in different working conditions. Its compact size, measuring 136.6 inches long, 60.8 inches wide, and 93.9 inches tall, makes it easy to maneuver in tight spaces. The tractor weighs 4762 pounds and is equipped with agricultural tires on both front and rear axles. It also features an electric starter for quick and easy operation. With a JIS1 hitch category, the TA505 can handle a variety of implements, making it a versatile choice for farmers looking for a reliable and efficient tractor.
ManufacturerIsekiPower49.3 hpEngine4-cyl
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 49hp
- Operating Weight
- 4,762 lb
At a glance
How the TA505 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
49.3 hp · 89th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The TA505 ranks at the 89th percentile for engine power among recorded sub-compact tractors.
Overview
About the Iseki TA505
The Iseki TA505 is a powerful and versatile tractor designed for various farming tasks. It features a robust Isuzu 4JB1 engine with 4 cylinders and 169.1 cubic inches of displacement. This liquid-cooled diesel engine produces 49.3 horsepower at 2500 RPM, providing plenty of power for most agricultural needs. The TA505 boasts a flexible transmission with 16 forward and 16 reverse gears, giving operators excellent control in different working conditions. Its compact size, measuring 136.6 inches long, 60.8 inches wide, and 93.9 inches tall, makes it easy to maneuver in tight spaces. The tractor weighs 4762 pounds and is equipped with agricultural tires on both front and rear axles. It also features an electric starter for quick and easy operation. With a JIS1 hitch category, the TA505 can handle a variety of implements, making it a versatile choice for farmers looking for a reliable and efficient tractor.
Full specifications
Every recorded spec
General
| Manufacturer | Iseki |
|---|---|
| Model | TA505 |
| Category | Sub-Compact tractor |
| Operating weight | 4,762lb |
Engine
| Make | Isuzu |
|---|---|
| Model | 4JB1 |
| Power | 49.3hp |
| Cylinders | 4 |
| Displacement | 169.1ci |
Transmission
| Forward gears | 16 |
|---|---|
| Reverse gears | 16 |
Dimensions
| Length | 136.6in |
|---|---|
| Width | 60.8in |
| Height | 93.9in |
| Operating weight | 4,762lb |
Head to head
TA505 vs. Sub-Compact median
How the Iseki TA505 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 49.3 hp | 26.9 hp | +84% | 89th |
| Engine Displacement | 169 ci | 91.4 ci | +85% | 90th |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 16 | 9 | +78% | 89th |
| Operating Weight | 4,762 lb | 2,700 lb | +76% | 90th |
| Length | 137 in | 113 in | +20% | 89th |
| Width | 60.8 in | 50.7 in | +20% | 76th |
| Height | 93.9 in | 78.4 in | +20% | 83rd |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Iseki tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Iseki TA450 | 50.3 hp | 4,310 lb | — | Compare → |
| Iseki TK546 | 46 hp | 3,869 lb | — | Compare → |
| Iseki TS4510 | 45 hp | 3,638 lb | — | Compare → |
| Iseki TA455 | 44.4 hp | 4,321 lb | — | Compare → |
| Iseki TA437 | 42.4 hp | 3,428 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5050 | 50 hp | 4,410 lb | 1977–1983 | Compare → |
| Allis Chalmers FD5 | 50 hp | 5,412 lb | — | Compare → |
| Antonio Carraro Tigrone 5800 | 48 hp | 3,417 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 5800 | 48 hp | — | — | Compare → |
| AGCO ST47A | 47.5 hp | 3,600 lb | — | Compare → |
Explore
Iseki siblings
Explore
Similar-spec models
Gallery

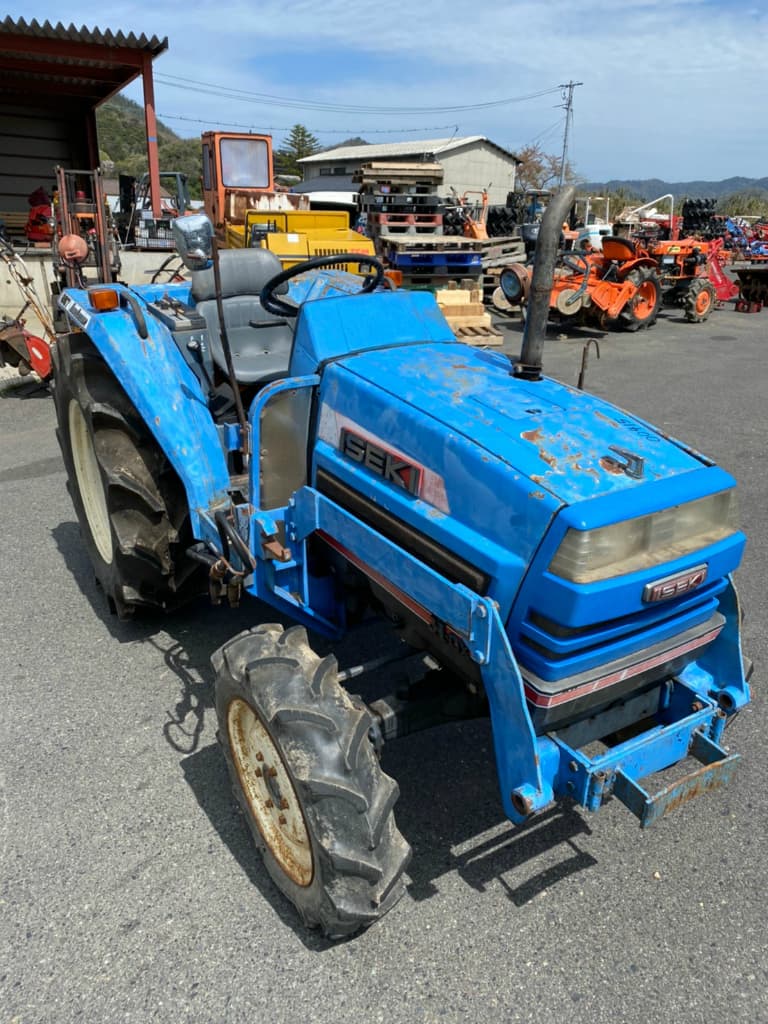

Iseki TA505 photos
FAQ
Common questions
How much horsepower does the Iseki TA505 have?
The Iseki TA505 produces 49.3 hp from its 4-cylinder engine. Engine displacement is 169.1 ci.
What hitch category is the Iseki TA505?
The Iseki TA505 uses a Category JIS1 hitch.
How much does the Iseki TA505 weigh?
The Iseki TA505 weighs about 4,762 lb in operating condition.
What maintenance does the Iseki TA505 require?
Like any tractor, the Iseki TA505 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
