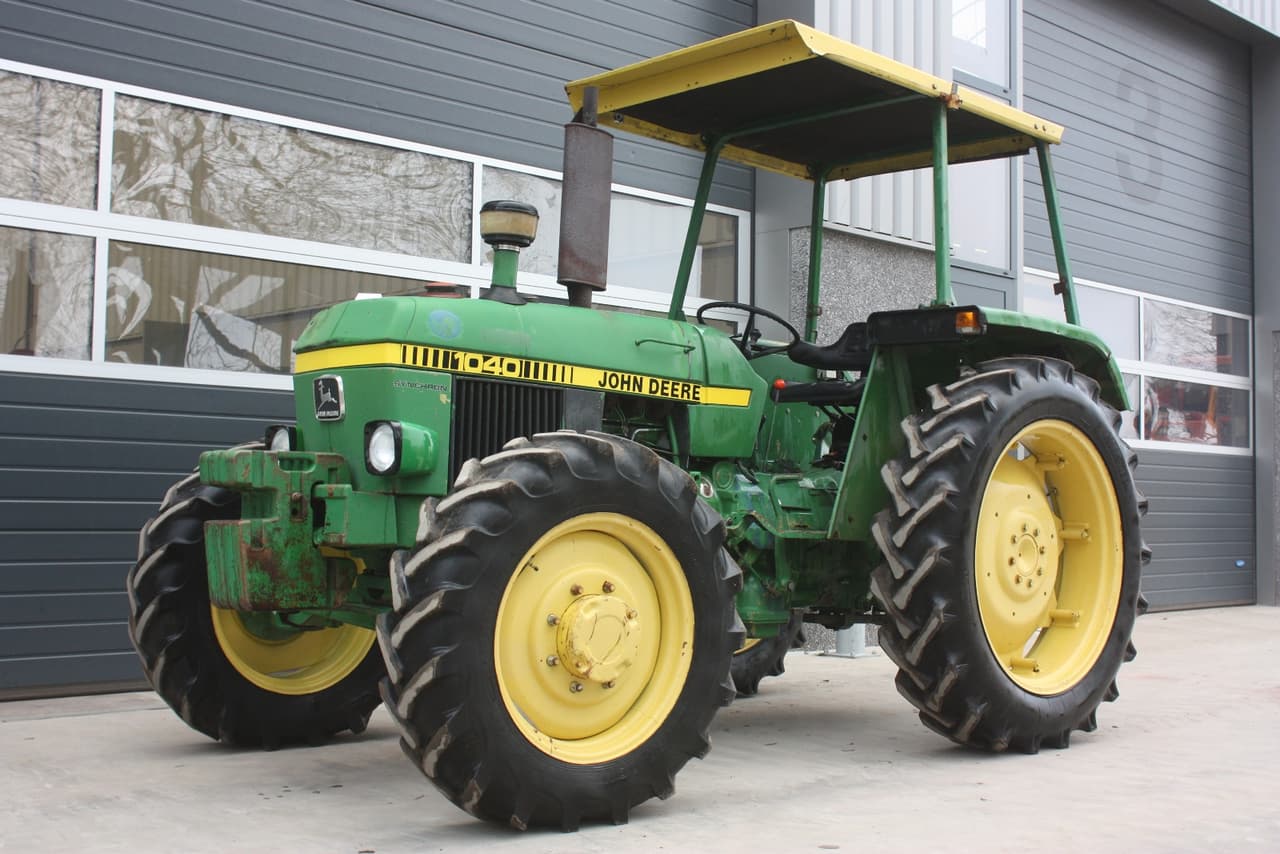

John Deere 1040
The John Deere 1040 is a utility tractor built for farm work. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a 3-cylinder diesel engine made by John Deere. This engine is liquid-cooled and has average power for its class, producing 53.6 hp at 2500 rpm. The 1040 model has a 16-forward and 8-reverse gear transmission, giving drivers lots of options for different tasks. It's a big tractor, measuring 138 inches long, 71.3 inches wide, and 96.1 inches tall. Weighing 6107 lb, it's above average in its weight class. The tractor has a rear hitch that can handle different attachments. It also comes with features like a hi-lo transmission and adjustable front and rear treads, making it versatile for various farm jobs. Farmers can choose from different tire options, with standard sizes being 7.50-16 for the front and 12.4-36 for the rear.
ManufacturerJohn DeerePower53.6 hpEngine3-cylTransCollar shift
Quick specs
- Category
- Utility
- Engine Power Output
- 54hp
- Operating Weight
- 6,107 lb
- Transmission
- Collar shift
At a glance
How the 1040 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
53.6 hp · 48th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1040 ranks at the 48th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 1040
The John Deere 1040 is a utility tractor built for farm work. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a 3-cylinder diesel engine made by John Deere. This engine is liquid-cooled and has average power for its class, producing 53.6 hp at 2500 rpm. The 1040 model has a 16-forward and 8-reverse gear transmission, giving drivers lots of options for different tasks. It's a big tractor, measuring 138 inches long, 71.3 inches wide, and 96.1 inches tall. Weighing 6107 lb, it's above average in its weight class. The tractor has a rear hitch that can handle different attachments. It also comes with features like a hi-lo transmission and adjustable front and rear treads, making it versatile for various farm jobs. Farmers can choose from different tire options, with standard sizes being 7.50-16 for the front and 12.4-36 for the rear.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 1040 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 6,107lb |
Engine
| Make | John Deere |
|---|---|
| Power | 53.6hp |
| Cylinders | 3 |
| Displacement | 179ci |
| Bore | 4.19in |
| Stroke | 4.33in |
Transmission
| Type | Collar shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 138in |
|---|---|
| Width | 71.3in |
| Height | 96.1in |
| Operating weight | 6,107lb |
Capacities
| Cooling system | 4.1gal |
|---|
Head to head
1040 vs. Utility median
How the John Deere 1040 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 53.6 hp | 55 hp | -3% | 48th |
| Engine Displacement | 179 ci | 183 ci | -2% | 48th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 6,107 lb | 5,303 lb | +15% | 58th |
| Length | 138 in | 137 in | +1% | 52nd |
| Width | 71.3 in | 66 in | +8% | 63rd |
| Height | 96.1 in | 94.1 in | +2% | 55th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 1130 | 53.6 hp | 4,780 lb | — | Compare → |
| John Deere 1120 | 53 hp | 5,556 lb | 1967–1975 | Compare → |
| John Deere 5205 | 53 hp | — | 2000–2007 | Compare → |
| John Deere 5210 | 53 hp | 4,205 lb | 1998–2001 | Compare → |
| John Deere 5220 | 53 hp | 3,576 lb | 2002–2004 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Apollo 554 | 55 hp | 6,239 lb | — | Compare → |
| Ascot Universal 550 | 55 hp | 4,600 lb | — | Compare → |
| Barreiros 5000 | 55 hp | 5,030 lb | — | Compare → |
| Barreiros 5000 VL | 55 hp | 4,080 lb | — | Compare → |
| Belarus 405 | 55 hp | 7,056 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery
John Deere 1040 photos
FAQ
Common questions
What is the engine power output of the John Deere 1040?
Rated engine output for the John Deere 1040 is 53.6 hp, delivered by a 3-cylinder engine. The engine displaces 179 ci.
Which transmission does the John Deere 1040 use?
The John Deere 1040 is equipped with a Collar shift transmission with 16 forward gears.
What hitch category is the John Deere 1040?
The John Deere 1040 uses a Category II/I hitch.
What is the operating weight of the John Deere 1040?
In working trim, the John Deere 1040 comes in at roughly 6,107 lb.
How do I maintain a John Deere 1040?
Routine service for the John Deere 1040 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
