Same brandUtility tractorsSpec sheet
John Deere 5205
The John Deere 5205 is a utility tractor that was made from 2000 to 2007. It's a strong helper for farms and other work sites. This tractor has a diesel engine made by John Deere. The engine has 3 cylinders and can produce 53 horsepower, which is about average for tractors like this. The 5205 has some useful features. It has hydrostatic power steering, which makes it easy to turn. The transmission has 8 forward gears and 4 reverse gears, giving the driver good control. It has a three-point hitch at the back, which lets it connect to many tools. The tractor also has a PTO (Power Take-Off) that spins at 540 rpm, useful for running equipment. The open operator station has a roll-over protection system for safety. With its average engine power and versatile features, the John Deere 5205 is a reliable choice for various farming tasks.
ManufacturerJohn DeerePower53 hp(39.5 kW)Class40–60 HP tractors →Engine3-cylinderTransmissionPartially synchronized with dry disc clutch
Key specifications
- Category
- Utility
- Engine power
- 53hp
- Transmission
- Partially synchronized with dry disc clutch
Category comparison
5205 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
53 hp · 48th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5205 ranks at the 48th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 5205
The John Deere 5205 is a utility tractor that was made from 2000 to 2007. It's a strong helper for farms and other work sites. This tractor has a diesel engine made by John Deere. The engine has 3 cylinders and can produce 53 horsepower, which is about average for tractors like this. The 5205 has some useful features. It has hydrostatic power steering, which makes it easy to turn. The transmission has 8 forward gears and 4 reverse gears, giving the driver good control. It has a three-point hitch at the back, which lets it connect to many tools. The tractor also has a PTO (Power Take-Off) that spins at 540 rpm, useful for running equipment. The open operator station has a roll-over protection system for safety. With its average engine power and versatile features, the John Deere 5205 is a reliable choice for various farming tasks.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 5205 |
| Category | Utility tractor |
| Years built | 2000–2007 |
Engine
| Make | John Deere |
|---|---|
| Model | 3029D |
| Power | 53hp(39.52 kW) |
| Cylinders | 3 |
| Displacement | 179ci(2.93 L) |
| Bore | 4.17in(105.9 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Type | Partially synchronized with dry disc clutch |
|---|---|
| Forward gears | 8 |
| Reverse gears | 4 |
Chassis & drive
| Steering | Hydrostatic power |
|---|---|
| Brakes | Differential mechanical wet disc |
| Cab | Open operator station with two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Width | 68.9in(1,750 mm) |
|---|---|
| Height | 90.2in(2,291 mm) |
Capacities
| Cooling system | 2.5gal(9.46 L) |
|---|
Closest alternatives
5205 compared with the nearest models by horsepower
Among utility tractors, the John Deere 5220 and the John Deere 5210 are closest to the John Deere 5205 in rated horsepower. The John Deere 5220 matches it on rated power. The John Deere 5210 matches it on rated power.
| Spec | John Deere 5205 | John Deere 5220 | John Deere 5210 |
|---|---|---|---|
| Engine power | 53 hp39.5 kW | 53 hp39.5 kW | 53 hp39.5 kW |
| Operating weight | - | 3,576 lb1,622 kg | 4,205 lb1,907 kg |
| Weight per hp | - | 67 lb/hp41 kg/kW | 79 lb/hp48 kg/kW |
| Displacement | 179 ci2.93 L | 179 ci2.93 L | 179 ci2.93 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Partially synchronized with dry disc clutch | Collar Shift | Collar Shift (unsynchronized gear) |
| Drive | - | 2WD | 2WD |
| Years built | 2000-2007 | 2002-2004 | 1998-2001 |
Calculators
Calculators for the 5205
PTO power
About 44 to 48 PTO hp
Estimated from the 53 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 53 hp tractor can run
Maximum size is about a 6.5 ft rotary cutter or a 5.5 ft tiller. The calculator also sizes discs, plows and balers.
Units
53 hp is 39.5 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
5205 vs. Utility median
John Deere 5205 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 53 hp | 55 hp | -4% | 48th |
| Engine Displacement | 179 ci | 183 ci | -2% | 48th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Width | 68.9 in | 66 in | +4% | 57th |
| Height | 90.2 in | 94.1 in | -4% | 40th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

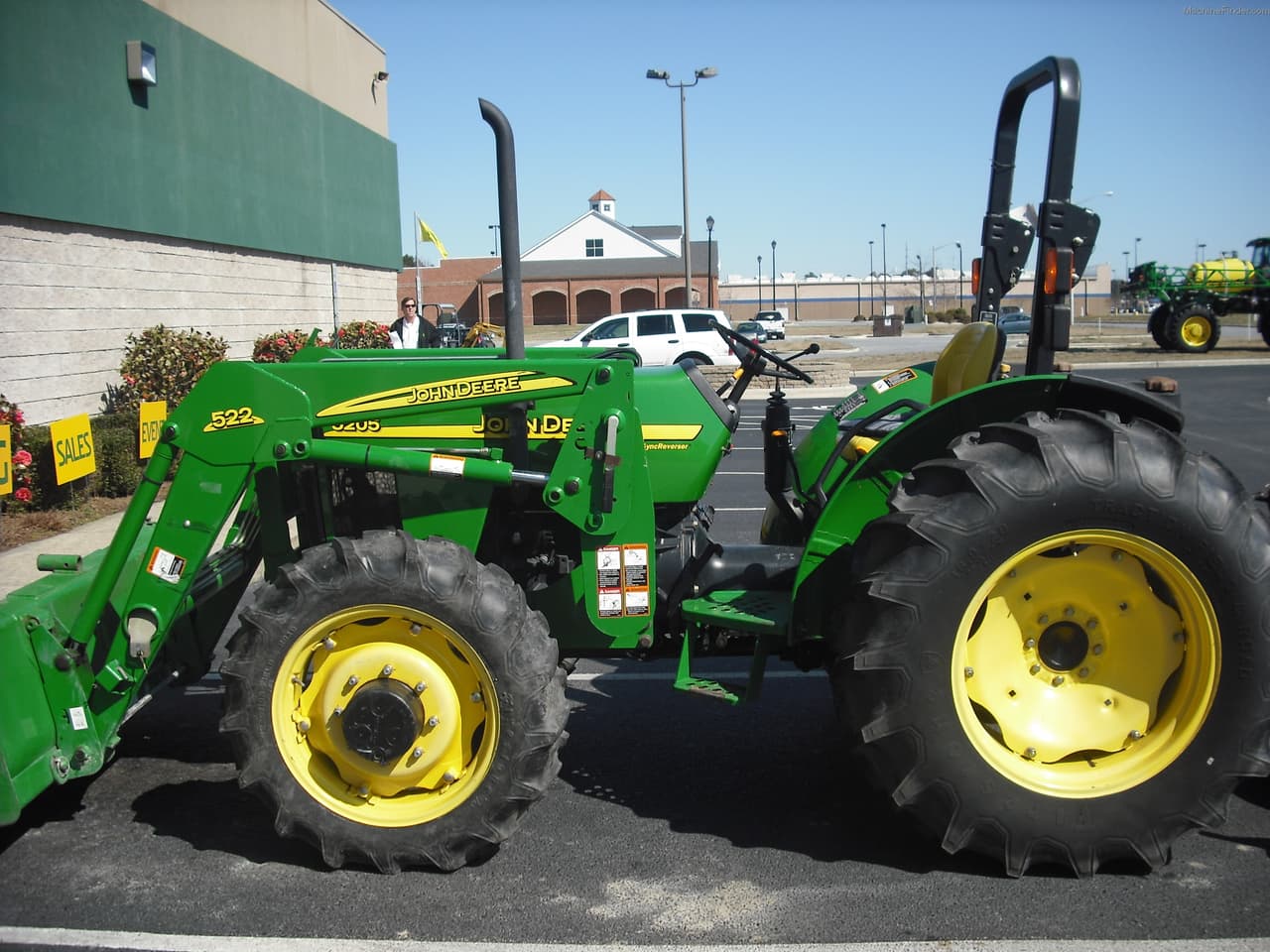

John Deere 5205 photos
FAQ
Frequently asked questions
When was the John Deere 5205 in production?
John Deere 5205 production started in 2000 and ended in 2007.
What hydraulics does the John Deere 5205 have?
The John Deere 5205 uses an Open center hydraulic system.
What three-point hitch category does the John Deere 5205 use?
The John Deere 5205 has a Category II/I three-point hitch.
How much horsepower does the John Deere 5205 have?
The John Deere 5205 produces 53 hp from its 3-cylinder engine. Engine displacement is 179 ci.
What transmission is in the John Deere 5205?
Transmission on the John Deere 5205 is Partially synchronized with dry disc clutch, with 8 forward speeds.
What maintenance does the John Deere 5205 require?
The John Deere 5205 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
