John Deere 5520N
The John Deere 5520N is a compact orchard and vineyard tractor built from 2002 to 2004. It's designed to work in tight spaces between rows of trees or vines. This tractor is 132.7 inches long, 74.8 inches wide, and 102.4 inches tall, making it easy to maneuver in orchards. The 5520N has a powerful John Deere 4045T diesel engine with four cylinders. The engine is turbocharged and has a very high displacement of 275 ci. It produces 75 hp at 2400 rpm, which is above average for its size. The tractor has a partially synchronized transmission with 12 forward and 12 reverse gears, giving the driver lots of speed options. It also has hydrostatic power steering for easy control. The three-point hitch at the rear can lift up to 3375 lb, which is about average for similar tractors. The tractor has two PTO speeds: 540 rpm and 540E rpm, useful for different farm tools. It comes with a foldable roll-over protection structure (ROPS) for safety and uses hydraulic wet disc brakes for reliable stopping power.
ManufacturerJohn DeerePower75 hpEngine4-cylTransPartially synchronized
Quick specs
- Category
- Agricultural
- Engine Power Output
- 75hp
- Transmission
- Partially synchronized
At a glance
How the 5520N compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
75 hp · 23rd
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 5520N ranks at the 23rd percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 5520N
The John Deere 5520N is a compact orchard and vineyard tractor built from 2002 to 2004. It's designed to work in tight spaces between rows of trees or vines. This tractor is 132.7 inches long, 74.8 inches wide, and 102.4 inches tall, making it easy to maneuver in orchards. The 5520N has a powerful John Deere 4045T diesel engine with four cylinders. The engine is turbocharged and has a very high displacement of 275 ci. It produces 75 hp at 2400 rpm, which is above average for its size. The tractor has a partially synchronized transmission with 12 forward and 12 reverse gears, giving the driver lots of speed options. It also has hydrostatic power steering for easy control. The three-point hitch at the rear can lift up to 3375 lb, which is about average for similar tractors. The tractor has two PTO speeds: 540 rpm and 540E rpm, useful for different farm tools. It comes with a foldable roll-over protection structure (ROPS) for safety and uses hydraulic wet disc brakes for reliable stopping power.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 5520N |
| Category | Agricultural tractor |
| Years built | 2002–2004 |
Engine
| Make | John Deere |
|---|---|
| Model | 4045T |
| Power | 75hp |
| Cylinders | 4 |
| Displacement | 275ci |
| Bore | 4.17in |
| Stroke | 5in |
Transmission
| Type | Partially synchronized |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Steering | Hydrostatic power |
|---|---|
| Brakes | Hydraulic wet disc |
| Cab | Two-post foldable ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 132.7in |
|---|---|
| Width | 74.8in |
| Height | 102.4in |
Head to head
5520N vs. Agricultural median
How the John Deere 5520N compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 75 hp | 110 hp | -32% | 23rd |
| Engine Displacement | 275 ci | 336 ci | -18% | 41st |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 12 | 16 | -25% | 33rd |
| Length | 133 in | 173 in | -23% | 15th |
| Width | 74.8 in | 79.5 in | -6% | 39th |
| Height | 102 in | 111 in | -7% | 31st |
| 3-Point Hitch Capacity | 3,375 lb | 12,126 lb | -72% | 2nd |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 93–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5075GN | 75 hp | 5,566 lb | — | Compare → |
| John Deere 6100 | 75 hp | 8,160 lb | — | Compare → |
| John Deere 75F | 74 hp | 5,512 lb | — | Compare → |
| John Deere 76F | 76 hp | 4,189 lb | — | Compare → |
| John Deere 3380 | 73 hp | 10,141 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

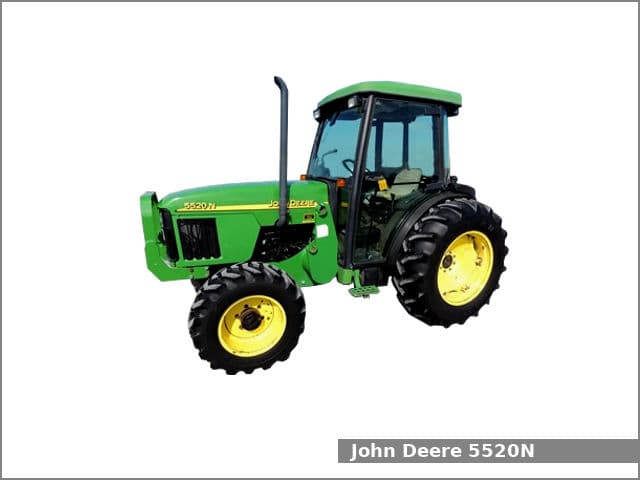

John Deere 5520N photos
FAQ
Common questions
When was the John Deere 5520N made?
The John Deere 5520N was manufactured from 2002 to 2004.
What is the engine power output of the John Deere 5520N?
Rated engine output for the John Deere 5520N is 75 hp, delivered by a 4-cylinder engine. The engine displaces 275 ci.
Which transmission does the John Deere 5520N use?
The John Deere 5520N is equipped with a Partially synchronized transmission with 12 forward gears.
What hydraulics does the John Deere 5520N have?
The John Deere 5520N uses an Open center hydraulic system.
What three-point hitch category does the John Deere 5520N use?
The John Deere 5520N has a Category II three-point hitch rated to lift 3,375 lb.
How do I maintain a John Deere 5520N?
Routine service for the John Deere 5520N covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
