Same brandUtility tractorsSpec sheet
John Deere 5525
The John Deere 5525 is a utility tractor that was made from 2005 to 2008. It's a strong and capable machine, perfect for many farm jobs. This tractor has a powerful John Deere 4045 diesel engine with four cylinders. The engine is turbocharged and can produce 91 horsepower, which is above average for tractors in its class. The 5525 is built to handle heavy work. It has a three-point hitch at the back that can lift up to 3,374 pounds, which is very high compared to other tractors. The tractor weighs 5,775 pounds, making it sturdy but not too heavy. It has a power steering system that makes it easy to control. Farmers can choose between an open ROPS (Roll-Over Protective Structure) or a closed cab for comfort. The tractor also has a PTO (Power Take-Off) that spins at 540 rpm, useful for running various farm tools.
Key specifications
- Category
- Utility
- Engine power
- 91hp
- Operating weight
- 5,775 lb
Category comparison
5525 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
91 hp · 79th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5525 ranks at the 79th percentile for engine power among recorded utility tractors.
Overview
About the John Deere 5525
The John Deere 5525 is a utility tractor that was made from 2005 to 2008. It's a strong and capable machine, perfect for many farm jobs. This tractor has a powerful John Deere 4045 diesel engine with four cylinders. The engine is turbocharged and can produce 91 horsepower, which is above average for tractors in its class. The 5525 is built to handle heavy work. It has a three-point hitch at the back that can lift up to 3,374 pounds, which is very high compared to other tractors. The tractor weighs 5,775 pounds, making it sturdy but not too heavy. It has a power steering system that makes it easy to control. Farmers can choose between an open ROPS (Roll-Over Protective Structure) or a closed cab for comfort. The tractor also has a PTO (Power Take-Off) that spins at 540 rpm, useful for running various farm tools.
Full specifications
Recorded specifications
General
| Manufacturer | John Deere |
|---|---|
| Model | 5525 |
| Category | Utility tractor |
| Years built | 2005–2008 |
| Operating weight | 5,775lb(2,619 kg) |
Engine
| Make | John Deere |
|---|---|
| Model | 4045 |
| Power | 91hp(67.86 kW) |
| Cylinders | 4 |
| Displacement | 276ci(4.52 L) |
| Bore | 4.17in(105.9 mm) |
| Stroke | 5in(127 mm) |
Chassis & drive
| Steering | Power |
|---|---|
| Brakes | Differential hydraulic wet disc |
| Cab | ROPS or Cab (optional) |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 151.5in(3,848 mm) |
|---|---|
| Operating weight | 5,775lb(2,619 kg) |
Capacities
| Cooling system | 3gal(11.36 L) |
|---|
Closest alternatives
5525 compared with the nearest models by horsepower
Among utility tractors, the Massey Ferguson 2670 HD and the New Holland TL90A are closest to the John Deere 5525 in rated horsepower. The Massey Ferguson 2670 HD matches it on rated power and weighs 1,040 lb more, so it carries more weight per horsepower, which helps traction in draft work. It entered production in 2010, 5 years after the 5525. The New Holland TL90A matches it on rated power and weighs 2,710 lb more, at 93 lb per horsepower against 63 lb. Of the 3 models, the 5525 has the lowest weight per horsepower at 63 lb per hp.
| Spec | John Deere 5525 | Massey Ferguson 2670 HD | New Holland TL90A |
|---|---|---|---|
| Engine power | 91 hp67.9 kW | 91 hp67.9 kW | 91 hp67.9 kW |
| Operating weight | 5,775 lb2,619 kg | 6,812 lb3,090 kg | 8,488 lb3,850 kg |
| Weight per hp | 63 lb/hp39 kg/kW | 75 lb/hp46 kg/kW | 93 lb/hp57 kg/kW |
| Displacement | 276 ci4.52 L | 269 ci4.41 L | 273 ci4.47 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | - | Synchronized Shuttle | Synchro Command |
| Drive | - | 2WD | 4x2 2WD |
| Years built | 2005-2008 | 2010-2013 | 2004-2007 |
Calculators
Calculators for the 5525
PTO power
About 76 to 82 PTO hp
Estimated from the 91 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 91 hp tractor can run
Maximum size is about a 11 ft rotary cutter or a 9 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
74 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
91 hp is 67.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the John Deere 5525
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the John Deere 4045Amazon
Fits the John Deere 4045 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the John Deere 4045Amazon
Fits the John Deere 4045 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the John Deere 4045Amazon
Fits the John Deere 4045 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the John Deere 4045Amazon
Fits the John Deere 4045 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- John Deere 5525 service and repair manualseManualOnline
Digital manuals. Built 2005 to 2008. Check the serial number range on the listing.
- John Deere 5525 operator's manualAmazon
Printed and reprint manuals. Built 2005 to 2008. Check the serial number range on the listing.
- John Deere 5525 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
5525 vs. Utility median
John Deere 5525 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 91 hp | 55 hp | +65% | 79th |
| Engine Displacement | 276 ci | 183 ci | +51% | 81st |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 5,775 lb | 5,303 lb | +9% | 54th |
| Length | 152 in | 137 in | +11% | 67th |
| 3-Point Hitch Capacity | 3,374 lb | 3,197 lb | +6% | 56th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other John Deere models
Other manufacturers
Models with similar horsepower
Gallery

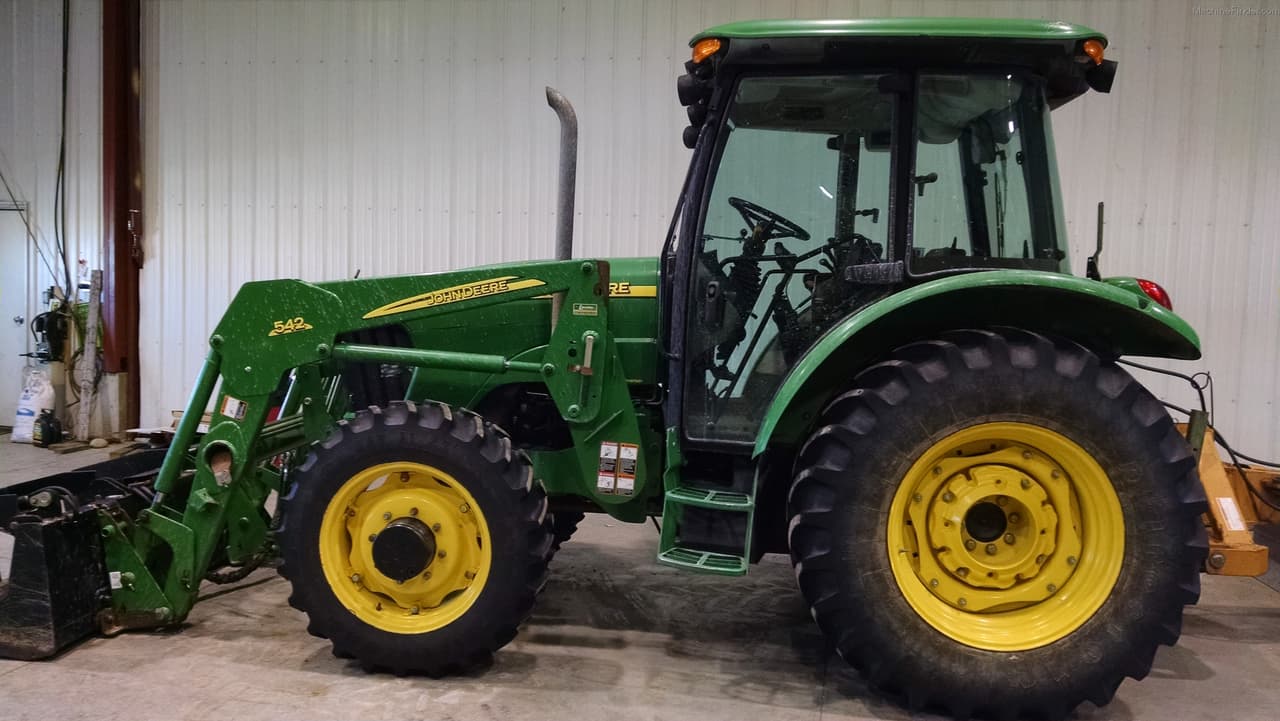

John Deere 5525 photos
FAQ
Frequently asked questions
When was the John Deere 5525 made?
The John Deere 5525 was manufactured from 2005 to 2008.
What is the operating weight of the John Deere 5525?
The John Deere 5525 has an operating weight of about 5,775 lb.
What type of hydraulic system does the John Deere 5525 use?
Hydraulics on the John Deere 5525 are Open center.
What hitch category is the John Deere 5525?
The John Deere 5525 uses a Category II/I hitch with a lift capacity of 3,374 lb.
What is the engine power output of the John Deere 5525?
Rated engine output for the John Deere 5525 is 91 hp, delivered by a 4-cylinder engine. The engine displaces 276 ci.
How do I maintain a John Deere 5525?
Routine service for the John Deere 5525 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
