Brand siblingAgriculturalPerformance profile
John Deere 6506
The John Deere 6506 is a powerful tractor designed for serious farm work. It has a strong diesel engine made by John Deere. This engine has 6 cylinders and can produce 105 horsepower. The tractor uses a liquid-cooling system to keep the engine running smoothly. One of the best features of the 6506 is its transmission. It has 24 forward gears and 16 reverse gears, giving farmers lots of options for different tasks. The tractor is big and sturdy, measuring 177.2 inches long and 110.6 inches tall. It weighs 10,250 pounds, which helps it handle tough jobs. The tractor has large agricultural tires, with 16.9R24 on the front and 18.4R38 on the back. These tires are great for gripping the soil in fields.
ManufacturerJohn DeerePower105 hpEngine6-cylTransPartial Power Shift
Quick specs
- Category
- Agricultural
- Engine Power Output
- 105hp
- Operating Weight
- 10,250 lb
- Transmission
- Partial Power Shift
At a glance
How the 6506 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
105 hp · 48th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 6506 ranks at the 48th percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 6506
The John Deere 6506 is a powerful tractor designed for serious farm work. It has a strong diesel engine made by John Deere. This engine has 6 cylinders and can produce 105 horsepower. The tractor uses a liquid-cooling system to keep the engine running smoothly. One of the best features of the 6506 is its transmission. It has 24 forward gears and 16 reverse gears, giving farmers lots of options for different tasks. The tractor is big and sturdy, measuring 177.2 inches long and 110.6 inches tall. It weighs 10,250 pounds, which helps it handle tough jobs. The tractor has large agricultural tires, with 16.9R24 on the front and 18.4R38 on the back. These tires are great for gripping the soil in fields.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 6506 |
| Category | Agricultural tractor |
| Operating weight | 10,250lb |
Engine
| Make | John Deere |
|---|---|
| Model | 6068 |
| Power | 105hp |
| Cylinders | 6 |
| Displacement | 414.1ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | Partial Power Shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 16 |
Dimensions
| Length | 177.2in |
|---|---|
| Height | 110.6in |
| Operating weight | 10,250lb |
Head to head
6506 vs. Agricultural median
How the John Deere 6506 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 105 hp | 110 hp | -5% | 48th |
| Engine Displacement | 414 ci | 336 ci | +23% | 70th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 24 | 16 | +50% | 81st |
| Operating Weight | 10,250 lb | 10,914 lb | -6% | 45th |
| Length | 177 in | 173 in | +3% | 55th |
| Height | 111 in | 111 in | at median | 50th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 5100GF | 100 hp | 5,776 lb | — | Compare → |
| John Deere 5100GN | 100 hp | 5,566 lb | — | Compare → |
| John Deere 5100ML | 100 hp | 7,950 lb | — | Compare → |
| John Deere 6500L | 114 hp | 7,740 lb | — | Compare → |
| John Deere 6510L | 114 hp | 7,740 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1052 | 105 hp | 7,209 lb | — | Compare → |
| Allis Chalmers 7010 | 105.77 hp | 11,260 lb | 1980–1981 | Compare → |
| Allis Chalmers D21 Series I | 103 hp | 9,500 lb | 1963–1965 | Compare → |
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| AGCO LT90A | 110 hp | 8,820 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

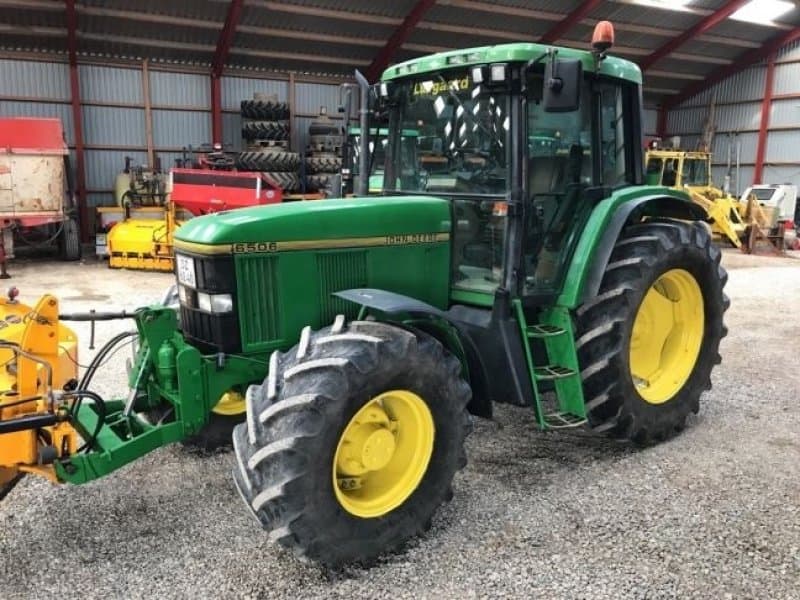

John Deere 6506 photos
FAQ
Common questions
What is the engine power output of the John Deere 6506?
Rated engine output for the John Deere 6506 is 105 hp, delivered by a 6-cylinder engine. The engine displaces 414.1 ci.
Which transmission does the John Deere 6506 use?
The John Deere 6506 is equipped with a Partial Power Shift transmission with 24 forward gears.
What hitch category is the John Deere 6506?
The John Deere 6506 uses a Category Category 3 hitch.
What is the operating weight of the John Deere 6506?
In working trim, the John Deere 6506 comes in at roughly 10,250 lb.
How do I maintain a John Deere 6506?
Routine service for the John Deere 6506 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
