Brand siblingAgriculturalPerformance profile
John Deere 6510L
The John Deere 6510L is a powerful orchard and vineyard tractor designed for agricultural use. It features a 2WD chassis with power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a four-speed power shift transmission, offering 16 total gears for versatile operation in various field conditions. Under the hood, the 6510L boasts a John Deere 4045TL057 engine. This turbocharged diesel engine has 4 cylinders and a very high displacement of 276 ci. It delivers an impressive 114 hp at 2300 rpm, placing it among the most powerful tractors in its class. The engine is liquid-cooled for efficient operation in demanding environments. With its high power output and above-average operating weight of 7740 lb, this tractor is well-suited for heavy-duty tasks. The 6510L also features a Category II hitch and a closed center load sensing hydraulic system, enhancing its capability to handle a wide range of implements and attachments.
ManufacturerJohn DeerePower114 hpEngine4-cylTransFour-speed power shift
Quick specs
- Category
- Agricultural
- Engine Power Output
- 114hp
- Operating Weight
- 7,740 lb
- Transmission
- Four-speed power shift
At a glance
How the 6510L compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
114 hp · 52nd
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 6510L ranks at the 52nd percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 6510L
The John Deere 6510L is a powerful orchard and vineyard tractor designed for agricultural use. It features a 2WD chassis with power steering, making it easy to maneuver in tight spaces. The tractor is equipped with a four-speed power shift transmission, offering 16 total gears for versatile operation in various field conditions. Under the hood, the 6510L boasts a John Deere 4045TL057 engine. This turbocharged diesel engine has 4 cylinders and a very high displacement of 276 ci. It delivers an impressive 114 hp at 2300 rpm, placing it among the most powerful tractors in its class. The engine is liquid-cooled for efficient operation in demanding environments. With its high power output and above-average operating weight of 7740 lb, this tractor is well-suited for heavy-duty tasks. The 6510L also features a Category II hitch and a closed center load sensing hydraulic system, enhancing its capability to handle a wide range of implements and attachments.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 6510L |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 7,740lb |
Engine
| Make | John Deere |
|---|---|
| Model | 4045TL057 |
| Power | 114hp |
| Cylinders | 4 |
| Displacement | 276ci |
| Bore | 4.19in |
| Stroke | 5in |
Transmission
| Type | Four-speed power shift |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Closed center load sensing |
|---|
Dimensions
| Length | 162.7in |
|---|---|
| Width | 56in |
| Height | 95.5in |
| Operating weight | 7,740lb |
Head to head
6510L vs. Agricultural median
How the John Deere 6510L compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 114 hp | 110 hp | +4% | 52nd |
| Engine Displacement | 276 ci | 336 ci | -18% | 41st |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Operating Weight | 7,740 lb | 10,914 lb | -29% | 30th |
| Length | 163 in | 173 in | -6% | 41st |
| Width | 56 in | 79.5 in | -30% | 21st |
| Height | 95.5 in | 111 in | -14% | 25th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 6500L | 114 hp | 7,740 lb | — | Compare → |
| John Deere 5115ML | 115 hp | 7,950 lb | — | Compare → |
| John Deere 5125ML | 118.68 hp | 8,625 lb | — | Compare → |
| John Deere 5120M | 120 hp | — | — | Compare → |
| John Deere 6800 | 120 hp | 11,000 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1025 MIG | 115 hp | 9,469 lb | — | Compare → |
| Agco LT95A | 111.6 hp | 11,070 lb | — | Compare → |
| AGCO RT110A | 116.9 hp | 12,200 lb | — | Compare → |
| Allis Chalmers 7000 | 117 hp | 9,550 lb | 1975–1979 | Compare → |
| AGCO LT85A | 110.1 hp | 10,605 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

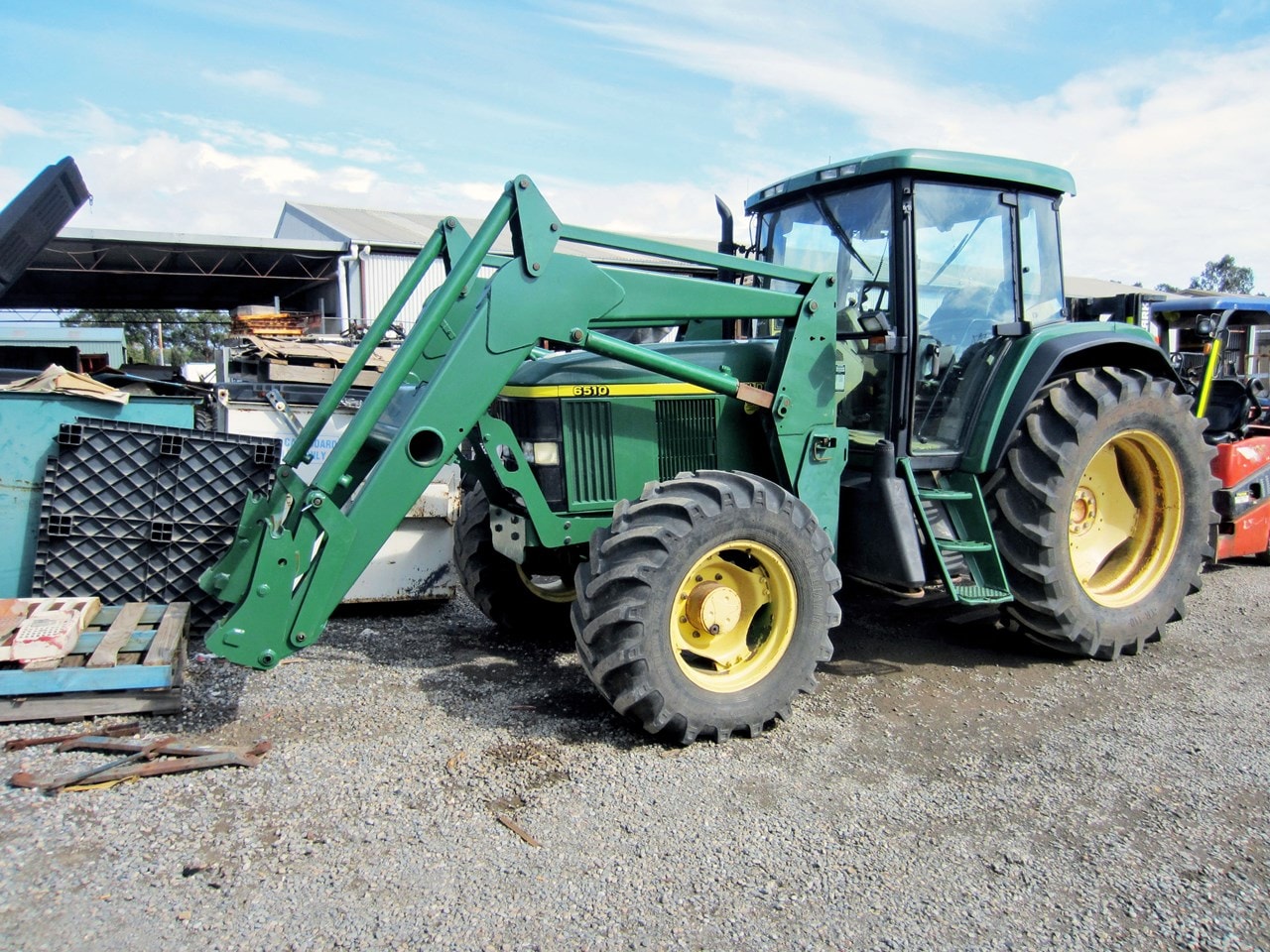

John Deere 6510L photos
FAQ
Common questions
How powerful is the John Deere 6510L?
The John Deere 6510L has an engine power output of 114 hp. It is powered by a 4-cylinder engine displacing 276 ci.
What hydraulics does the John Deere 6510L have?
The John Deere 6510L uses a Closed center load sensing hydraulic system.
What three-point hitch category does the John Deere 6510L use?
The John Deere 6510L has a Category Category 3 three-point hitch.
What is the working weight of the John Deere 6510L?
The operating weight of the John Deere 6510L is approximately 7,740 lb.
What type of transmission does the John Deere 6510L have?
The John Deere 6510L uses a Four-speed power shift transmission.
What routine service does the John Deere 6510L need?
Regular maintenance for the John Deere 6510L includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
