Utility tractorsSpec sheet
Kubota L4630GSTC
The Kubota L4630GSTC is a utility tractor designed for various farm tasks. It has a diesel engine made by Kubota, with four cylinders and 47.2 horsepower. This power output is about average for tractors in its class. The engine runs at a very high 2700 RPM, which means it can work quickly when needed. This tractor has a GST transmission with 24 forward gears and 16 reverse gears. This gives the driver lots of options for different speeds and tasks. The L4630GSTC is 122.4 inches long, 67.2 inches wide, and 87.6 inches tall. It weighs 3814 pounds, which is on the lighter side for tractors. The tractor has a Category I hitch that can lift up to 2755.8 pounds, which is above average. It also has a comfortable cab for the driver. Kubota is known for making reliable tractors, and this model is built to handle many farm jobs well.
Key specifications
- Category
- Utility
- Engine power
- 47hp
- Operating weight
- 3,814 lb
- Transmission
- GST
Category comparison
L4630GSTC compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
47.2 hp · 42nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L4630GSTC ranks at the 42nd percentile for engine power among recorded utility tractors.
Overview
About the Kubota L4630GSTC
The Kubota L4630GSTC is a utility tractor designed for various farm tasks. It has a diesel engine made by Kubota, with four cylinders and 47.2 horsepower. This power output is about average for tractors in its class. The engine runs at a very high 2700 RPM, which means it can work quickly when needed. This tractor has a GST transmission with 24 forward gears and 16 reverse gears. This gives the driver lots of options for different speeds and tasks. The L4630GSTC is 122.4 inches long, 67.2 inches wide, and 87.6 inches tall. It weighs 3814 pounds, which is on the lighter side for tractors. The tractor has a Category I hitch that can lift up to 2755.8 pounds, which is above average. It also has a comfortable cab for the driver. Kubota is known for making reliable tractors, and this model is built to handle many farm jobs well.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L4630GSTC |
| Category | Utility tractor |
| Operating weight | 3,814lb(1,730 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | L4630 GSTC |
| Power | 47.2hp(35.2 kW) |
| Cylinders | 4 |
| Displacement | 134.1ci(2.2 L) |
Transmission
| Type | GST |
|---|---|
| Forward gears | 24 |
| Reverse gears | 16 |
Chassis & drive
| Cab | Cab |
|---|
Dimensions
| Length | 122.4in(3,109 mm) |
|---|---|
| Width | 67.2in(1,707 mm) |
| Height | 87.6in(2,225 mm) |
| Operating weight | 3,814lb(1,730 kg) |
Closest alternatives
L4630GSTC compared with the nearest models by horsepower
The closest utility models to the Kubota L4630GSTC by rated horsepower are the Kubota L4630DT and the Kubota L4630GST. The Kubota L4630DT matches it on rated power and weighs 370 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Kubota L4630GST matches it on rated power and weighs 340 lb less, carrying 74 lb per horsepower against 81 lb. Of the 3 models, the L4630GSTC has the highest weight per horsepower at 81 lb per hp.
| Spec | Kubota L4630GSTC | Kubota L4630DT | Kubota L4630GST |
|---|---|---|---|
| Engine power | 47.2 hp35.2 kW | 47.2 hp35.2 kW | 47.2 hp35.2 kW |
| Operating weight | 3,814 lb1,730 kg | 3,439 lb1,560 kg | 3,472 lb1,575 kg |
| Weight per hp | 81 lb/hp49 kg/kW | 73 lb/hp44 kg/kW | 74 lb/hp45 kg/kW |
| Displacement | 134.1 ci2.2 L | 134.1 ci2.2 L | 134.1 ci2.2 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | GST | FST | GST |
| Drive | - | Four-wheel drive (4WD) | 4WD |
Calculators
Calculators for the L4630GSTC
PTO power
About 39 to 42 PTO hp
Estimated from the 47.2 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 47.2 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
94 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
47.2 hp is 35.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L4630GSTC vs. Utility median
Kubota L4630GSTC compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 47.2 hp | 55 hp | -14% | 42nd |
| Engine Displacement | 134 ci | 183 ci | -27% | 32nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 3,814 lb | 5,303 lb | -28% | 34th |
| Length | 122 in | 137 in | -10% | 31st |
| Width | 67.2 in | 66 in | +2% | 54th |
| Height | 87.6 in | 94.1 in | -7% | 36th |
| 3-Point Hitch Capacity | 2,756 lb | 3,197 lb | -14% | 40th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

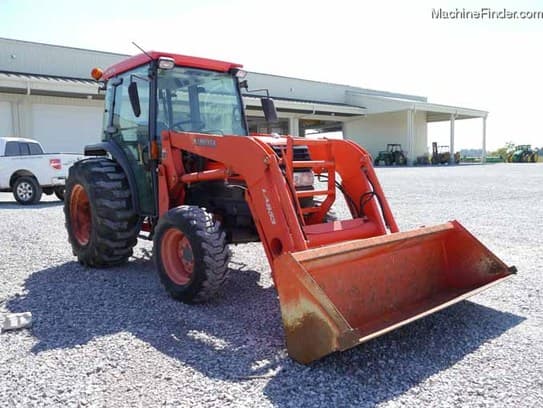

Kubota L4630GSTC photos
FAQ
Frequently asked questions
What is the engine power output of the Kubota L4630GSTC?
Rated engine output for the Kubota L4630GSTC is 47.2 hp, delivered by a 4-cylinder engine. The engine displaces 134.1 ci.
Which transmission does the Kubota L4630GSTC use?
The Kubota L4630GSTC is equipped with a GST transmission with 24 forward gears.
What is the operating weight of the Kubota L4630GSTC?
The Kubota L4630GSTC has an operating weight of about 3,814 lb.
How do I maintain a Kubota L4630GSTC?
Routine service for the Kubota L4630GSTC covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
