Utility tractorsSpec sheet
Kubota L4701-2WD
The Kubota L4701-2WD is a utility tractor built for farm work. It has a 2WD drive system and a manual transmission with 8 forward and 8 reverse gears. This tractor is powered by a Kubota V2403-CR-E4 diesel engine with 4 cylinders. The engine puts out 47.3 hp, which is about average for tractors in its class. This Kubota model has an open operator station and hydrostatic power steering for easy control. It's equipped with a Category 1 rear hitch that can lift up to 2,321.5 lb, which is above average lifting capacity. The tractor measures 122.9 inches long, 63.6 inches wide, and 91.2 inches tall. It weighs 3,218.8 lb, making it lighter than many similar tractors. The L4701-2WD has mechanical wet disc brakes and an electric starter for reliable operation in various farm conditions.
Key specifications
- Category
- Utility
- Engine power
- 47hp
- Operating weight
- 3,218.8 lb
- Transmission
- Manual
Category comparison
L4701-2WD compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
47.3 hp · 42nd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L4701-2WD ranks at the 42nd percentile for engine power among recorded utility tractors.
Overview
About the Kubota L4701-2WD
The Kubota L4701-2WD is a utility tractor built for farm work. It has a 2WD drive system and a manual transmission with 8 forward and 8 reverse gears. This tractor is powered by a Kubota V2403-CR-E4 diesel engine with 4 cylinders. The engine puts out 47.3 hp, which is about average for tractors in its class. This Kubota model has an open operator station and hydrostatic power steering for easy control. It's equipped with a Category 1 rear hitch that can lift up to 2,321.5 lb, which is above average lifting capacity. The tractor measures 122.9 inches long, 63.6 inches wide, and 91.2 inches tall. It weighs 3,218.8 lb, making it lighter than many similar tractors. The L4701-2WD has mechanical wet disc brakes and an electric starter for reliable operation in various farm conditions.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L4701-2WD |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 3,218.8lb(1,460 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | V2403-CR-E4 |
| Power | 47.3hp(35.27 kW) |
| Cylinders | 4 |
| Displacement | 148.5ci(2.43 L) |
| Bore | 3.5in(88.9 mm) |
| Stroke | 4.1in(104.1 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Mechanical, wet disc |
| Cab | Open |
Dimensions
| Length | 122.9in(3,122 mm) |
|---|---|
| Width | 63.6in(1,615 mm) |
| Height | 91.2in(2,316 mm) |
| Operating weight | 3,218.8lb(1,460 kg) |
Capacities
| Cooling system | 1.8gal(6.81 L) |
|---|
Closest alternatives
L4701-2WD compared with the nearest models by horsepower
The closest utility models to the Kubota L4701-2WD by rated horsepower are the Kubota KL48Z and the Kubota L4701-4WD. The Kubota KL48Z matches it on rated power and weighs 1,010 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Kubota L4701-4WD matches it on rated power and weighs 80 lb more. Of the 3 models, the L4701-2WD has the lowest weight per horsepower at 68 lb per hp.
| Spec | Kubota L4701-2WD | Kubota KL48Z | Kubota L4701-4WD |
|---|---|---|---|
| Engine power | 47.3 hp35.3 kW | 47.3 hp35.3 kW | 47.3 hp35.3 kW |
| Operating weight | 3,219 lb1,460 kg | 4,233 lb1,920 kg | 3,296 lb1,495 kg |
| Weight per hp | 68 lb/hp41 kg/kW | 89 lb/hp54 kg/kW | 70 lb/hp42 kg/kW |
| Displacement | 148.5 ci2.43 L | 148.5 ci2.43 L | 148.5 ci2.43 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Manual | Continuously-variable transmission (CVT) | Manual - Constant mesh with synchronized shuttle |
| Drive | 2WD | 4WD | 4WD |
Calculators
Calculators for the L4701-2WD
PTO power
About 39 to 43 PTO hp
Estimated from the 47.3 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 47.3 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
79 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
47.3 hp is 35.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L4701-2WD vs. Utility median
Kubota L4701-2WD compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 47.3 hp | 55 hp | -14% | 42nd |
| Engine Displacement | 149 ci | 183 ci | -19% | 37th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 3,219 lb | 5,303 lb | -39% | 26th |
| Length | 123 in | 137 in | -10% | 32nd |
| Width | 63.6 in | 66 in | -4% | 44th |
| Height | 91.2 in | 94.1 in | -3% | 43rd |
| 3-Point Hitch Capacity | 2,322 lb | 3,197 lb | -27% | 29th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

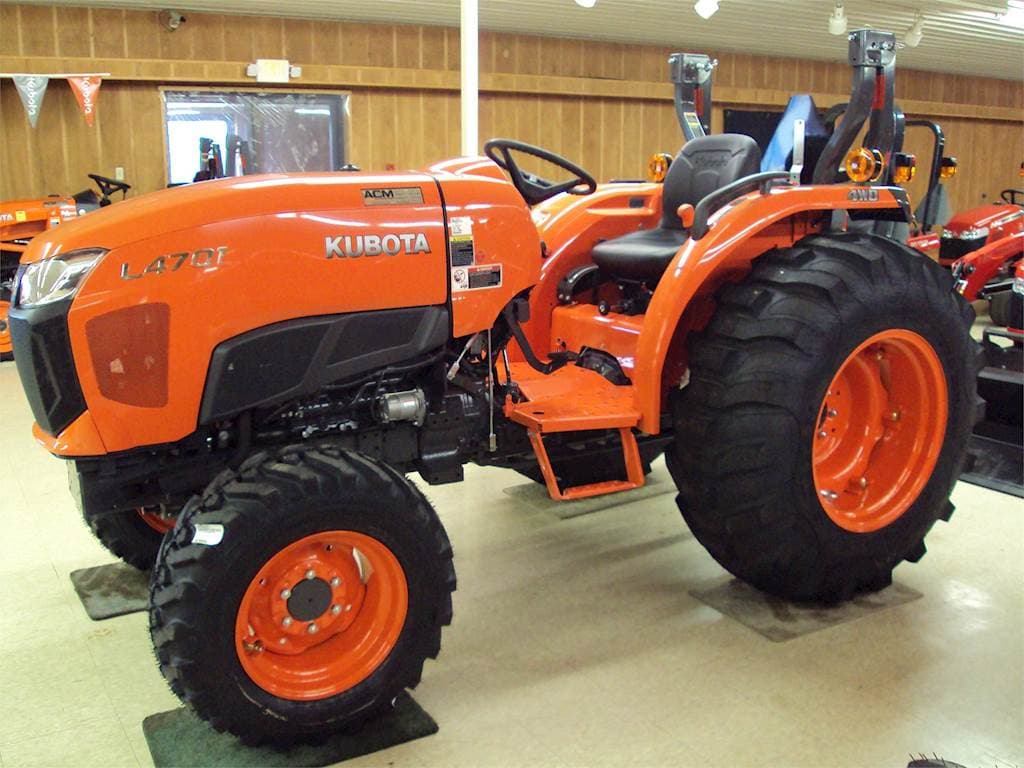

Kubota L4701-2WD photos
FAQ
Frequently asked questions
What is the engine power output of the Kubota L4701-2WD?
Rated engine output for the Kubota L4701-2WD is 47.3 hp, delivered by a 4-cylinder engine. The engine displaces 148.5 ci.
Which transmission does the Kubota L4701-2WD use?
The Kubota L4701-2WD is equipped with a Manual transmission with 8 forward gears.
What hitch category is the Kubota L4701-2WD?
The Kubota L4701-2WD uses a Category Category 3 hitch with a lift capacity of 2,321.5 lb.
What is the operating weight of the Kubota L4701-2WD?
The Kubota L4701-2WD has an operating weight of about 3,218.8 lb.
How do I maintain a Kubota L4701-2WD?
Routine service for the Kubota L4701-2WD covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
