Kubota L5040GST
The Kubota L5040GST is a utility tractor that packs a punch in a compact package. It's powered by a Kubota E-TVCS engine with four cylinders and a turbocharger. This engine gives the tractor 52 horsepower, which is about average for its class. The engine size is 148.5 cubic inches, which is below average, but it makes up for it with a high engine speed of 2600 rpm. This tractor is built for versatility and ease of use. It has a GST transmission with 12 forward gears and 8 reverse gears, giving operators plenty of options for different tasks. The L5040GST is 68.4 inches wide and 102 inches tall, making it easy to maneuver in tight spaces. It weighs 3803 pounds, which is on the lighter side for utility tractors. One standout feature is its three-point hitch, which can handle both category I and II implements. The hitch can lift up to 2976.3 pounds, which is very high capacity for a tractor of this size.
ManufacturerKubotaPower52 hpEngine4-cylTransGST
Quick specs
- Category
- Utility
- Engine Power Output
- 52hp
- Operating Weight
- 3,803 lb
- Transmission
- GST
At a glance
How the L5040GST compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
52 hp · 47th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L5040GST ranks at the 47th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L5040GST
The Kubota L5040GST is a utility tractor that packs a punch in a compact package. It's powered by a Kubota E-TVCS engine with four cylinders and a turbocharger. This engine gives the tractor 52 horsepower, which is about average for its class. The engine size is 148.5 cubic inches, which is below average, but it makes up for it with a high engine speed of 2600 rpm. This tractor is built for versatility and ease of use. It has a GST transmission with 12 forward gears and 8 reverse gears, giving operators plenty of options for different tasks. The L5040GST is 68.4 inches wide and 102 inches tall, making it easy to maneuver in tight spaces. It weighs 3803 pounds, which is on the lighter side for utility tractors. One standout feature is its three-point hitch, which can handle both category I and II implements. The hitch can lift up to 2976.3 pounds, which is very high capacity for a tractor of this size.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | L5040GST |
| Category | Utility tractor |
| Operating weight | 3,803lb |
Engine
| Make | Kubota |
|---|---|
| Model | E-TVCS |
| Power | 52hp |
| Cylinders | 4 |
| Displacement | 148.5ci |
Transmission
| Type | GST |
|---|---|
| Forward gears | 12 |
| Reverse gears | 8 |
Dimensions
| Width | 68.4in |
|---|---|
| Height | 102in |
| Operating weight | 3,803lb |
Head to head
L5040GST vs. Utility median
How the Kubota L5040GST compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 52 hp | 55 hp | -5% | 47th |
| Engine Displacement | 149 ci | 183 ci | -19% | 37th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,803 lb | 5,303 lb | -28% | 34th |
| Width | 68.4 in | 66 in | +4% | 56th |
| Height | 102 in | 94.1 in | +8% | 70th |
| 3-Point Hitch Capacity | 2,976 lb | 3,197 lb | -7% | 46th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota L5040 | 52 hp | 3,803 lb | 2007–2013 | Compare → |
| Kubota L5060GSTRC | 52 hp | 3,924.3 lb | — | Compare → |
| Kubota L5240 | 52 hp | 3,902 lb | 2007–2017 | Compare → |
| Kubota M5140 | 52 hp | 4,233 lb | 2010–2020 | Compare → |
| Kubota MX5200HSTRC | 52.1 hp | 3,734.7 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT45 | 52 hp | 4,806 lb | — | Compare → |
| Agco GT45A | 52 hp | 5,820.3 lb | — | Compare → |
| Barreiros 50.55 | 52 hp | 5,100 lb | — | Compare → |
| Barreiros R-500 | 52 hp | — | — | Compare → |
| Agco ST52a | 52.1 hp | 3,494.4 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

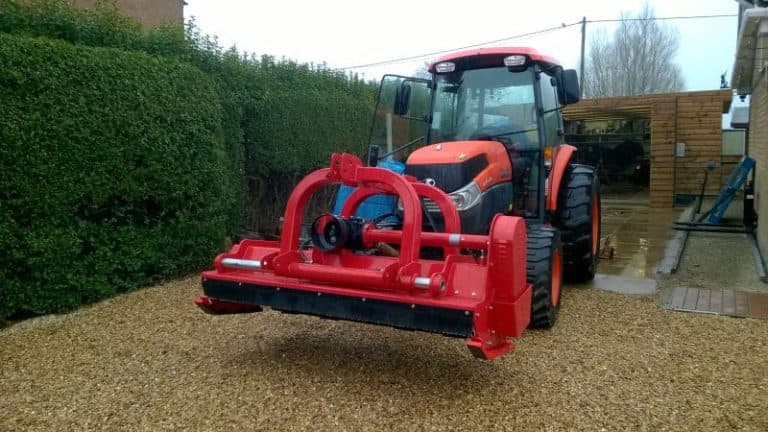

Kubota L5040GST photos
FAQ
Common questions
How powerful is the Kubota L5040GST?
The Kubota L5040GST has an engine power output of 52 hp. It is powered by a 4-cylinder engine displacing 148.5 ci.
What three-point hitch category does the Kubota L5040GST use?
The Kubota L5040GST has a Category I & II three-point hitch rated to lift 2,976.3 lb.
What is the working weight of the Kubota L5040GST?
The operating weight of the Kubota L5040GST is approximately 3,803 lb.
What type of transmission does the Kubota L5040GST have?
The Kubota L5040GST uses a GST transmission offering 12 forward gears.
What routine service does the Kubota L5040GST need?
Regular maintenance for the Kubota L5040GST includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
