Utility tractorsSpec sheet
Kubota L5240
The Kubota L5240 is a versatile utility tractor built from 2007 to 2017. It's a four-wheel drive machine with a powerful 52 hp diesel engine. This tractor has a hydrostatic transmission, which means it's easy to control and can go forward and backward smoothly. The L5240 is well-equipped for various farm tasks. It has a strong three-point hitch at the back that can lift up to 3,859 pounds, which is very high compared to other tractors. The tractor also has a power take-off (PTO) system that can run at 540 rpm or 2000 rpm for different tools. It's not too big, measuring about 126 inches long and 67 inches wide, making it good for working in tight spaces. The tractor weighs 3,902 pounds, which is about average for its size. Farmers can choose between an open operator station with roll-over protection or a closed cab for comfort in all weather.
ManufacturerKubotaPower52 hp(38.8 kW)Class40–60 HP tractors →Engine4-cylinderTransmissionHydrostatic
Key specifications
- Category
- Utility
- Engine power
- 52hp
- Operating weight
- 3,902 lb
- Transmission
- Hydrostatic
Category comparison
L5240 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
52 hp · 47th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L5240 ranks at the 47th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L5240
The Kubota L5240 is a versatile utility tractor built from 2007 to 2017. It's a four-wheel drive machine with a powerful 52 hp diesel engine. This tractor has a hydrostatic transmission, which means it's easy to control and can go forward and backward smoothly. The L5240 is well-equipped for various farm tasks. It has a strong three-point hitch at the back that can lift up to 3,859 pounds, which is very high compared to other tractors. The tractor also has a power take-off (PTO) system that can run at 540 rpm or 2000 rpm for different tools. It's not too big, measuring about 126 inches long and 67 inches wide, making it good for working in tight spaces. The tractor weighs 3,902 pounds, which is about average for its size. Farmers can choose between an open operator station with roll-over protection or a closed cab for comfort in all weather.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L5240 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2007–2017 |
| Operating weight | 3,902lb(1,770 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | V2403-M-TE2-HST1 |
| Power | 52hp(38.78 kW) |
| Cylinders | 4 |
| Displacement | 148.4ci(2.43 L) |
| Bore | 3.43in(87.12 mm) |
| Stroke | 4.03in(102.4 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | Four-wheel drive (4WD) |
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | Open operator station with two-post ROPS or Cab |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Optional Transmission or Live PTO |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 126.4in(3,211 mm) |
|---|---|
| Width | 67.3in(1,709 mm) |
| Height | 98in(2,489 mm) |
| Operating weight | 3,902lb(1,770 kg) |
Capacities
| Cooling system | 2.17gal(8.21 L) |
|---|
Closest alternatives
L5240 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the L5240 are the Kubota M5140 and the Kubota L5040. The Kubota M5140 matches it on rated power and weighs 330 lb more, at 81 lb per horsepower against 75 lb. The Kubota L5040 matches it on rated power and weighs 100 lb less.
| Spec | Kubota L5240 | Kubota M5140 | Kubota L5040 |
|---|---|---|---|
| Engine power | 52 hp38.8 kW | 52 hp38.8 kW | 52 hp38.8 kW |
| Operating weight | 3,902 lb1,770 kg | 4,233 lb1,920 kg | 3,803 lb1,725 kg |
| Weight per hp | 75 lb/hp46 kg/kW | 81 lb/hp50 kg/kW | 73 lb/hp44 kg/kW |
| Displacement | 148.4 ci2.43 L | 148.5 ci2.43 L | 148.5 ci2.43 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Hydrostatic | Power shuttle with wet disc clutch | Glide Shift (GST) |
| Drive | Four-wheel drive (4WD) | 4WD | 4WD |
| Years built | 2007-2017 | 2010-2020 | 2007-2013 |
Calculators
Calculators for the L5240
PTO power
About 43 to 47 PTO hp
Estimated from the 52 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 52 hp tractor can run
Maximum size is about a 6 ft rotary cutter or a 5.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
87 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
52 hp is 38.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L5240 vs. Utility median
Kubota L5240 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 52 hp | 55 hp | -5% | 47th |
| Engine Displacement | 148 ci | 183 ci | -19% | 37th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 3,902 lb | 5,303 lb | -26% | 36th |
| Length | 126 in | 137 in | -7% | 37th |
| Width | 67.3 in | 66 in | +2% | 54th |
| Height | 98 in | 94.1 in | +4% | 61st |
| 3-Point Hitch Capacity | 3,859 lb | 3,197 lb | +21% | 63rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

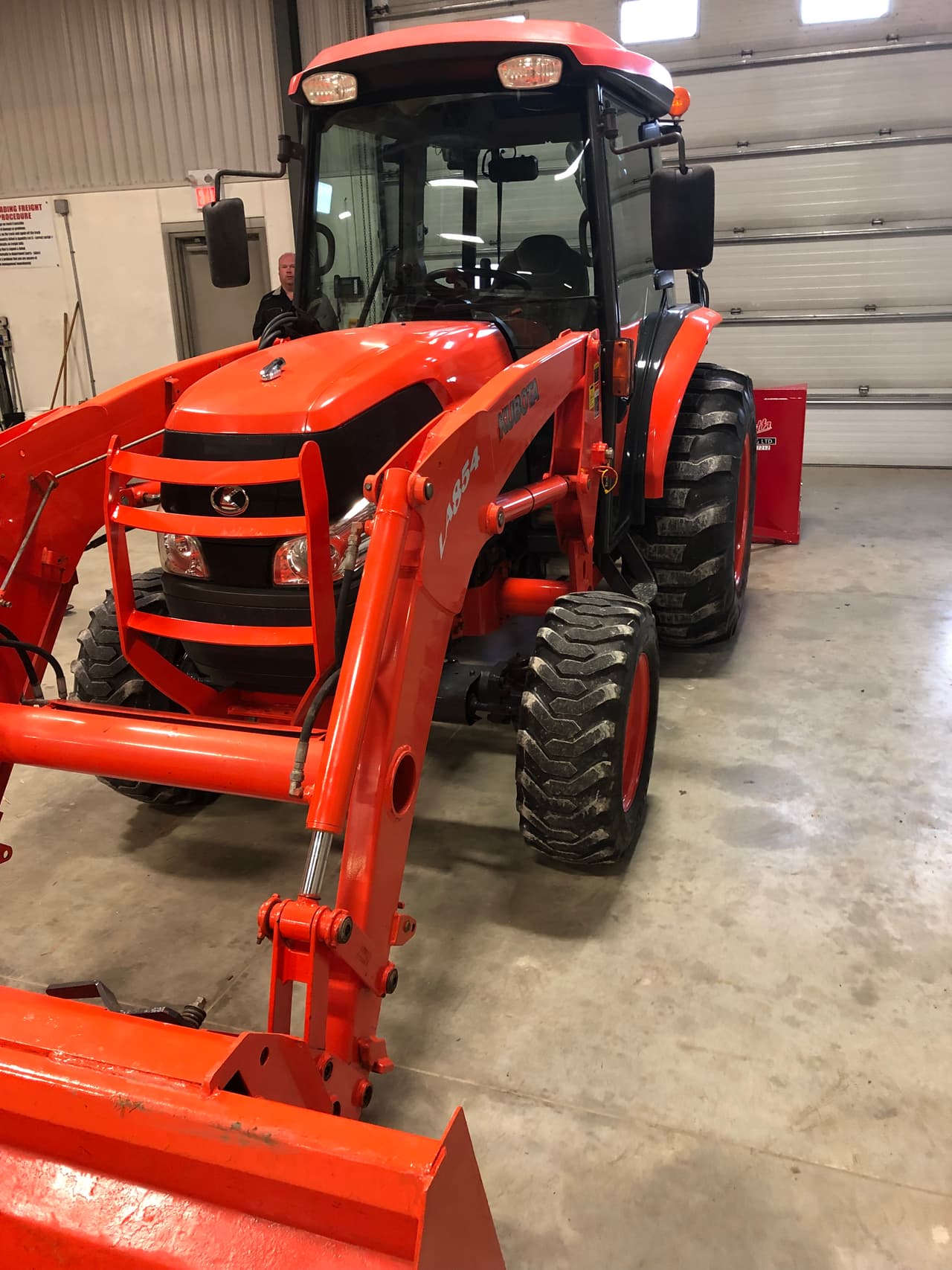

Kubota L5240 photos
FAQ
Frequently asked questions
When was the Kubota L5240 in production?
Kubota L5240 production started in 2007 and ended in 2017.
How much does the Kubota L5240 weigh?
The Kubota L5240 weighs about 3,902 lb in operating condition.
What transmission is in the Kubota L5240?
Transmission on the Kubota L5240 is Hydrostatic.
What hydraulics does the Kubota L5240 have?
The Kubota L5240 uses an Open Center hydraulic system.
What three-point hitch category does the Kubota L5240 use?
The Kubota L5240 has a Category II/I three-point hitch rated to lift 3,859 lb.
How much horsepower does the Kubota L5240 have?
The Kubota L5240 produces 52 hp from its 4-cylinder engine. Engine displacement is 148.4 ci.
What maintenance does the Kubota L5240 require?
The Kubota L5240 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
