Kubota MX5200HSTRC
The Kubota MX5200HSTRC is a utility tractor that packs a punch in a compact package. It's powered by a Kubota V2403CR-T engine, which is turbocharged and has 4 cylinders. This engine gives the tractor 52.1 hp, which is above average for its class. The tractor is 125.2 inches long and 96 inches tall, making it easy to maneuver in tight spaces. One of the MX5200HSTRC's standout features is its strong lifting ability. It has a 3-point hitch capacity of 2,314.9 lb at 24 inches, which is very high compared to other tractors in its category. This means it can handle heavy loads with ease. The tractor also has a 540 rpm PTO speed, which is great for running various attachments. Despite its power, the tractor is relatively light, weighing 3,734.7 lb. This makes it less likely to compact soil while working in fields.
ManufacturerKubotaPower52.1 hpEngine4-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 52hp
- Operating Weight
- 3,734.7 lb
At a glance
How the MX5200HSTRC compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
52.1 hp · 48th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The MX5200HSTRC ranks at the 48th percentile for engine power among recorded utility tractors.
Overview
About the Kubota MX5200HSTRC
The Kubota MX5200HSTRC is a utility tractor that packs a punch in a compact package. It's powered by a Kubota V2403CR-T engine, which is turbocharged and has 4 cylinders. This engine gives the tractor 52.1 hp, which is above average for its class. The tractor is 125.2 inches long and 96 inches tall, making it easy to maneuver in tight spaces. One of the MX5200HSTRC's standout features is its strong lifting ability. It has a 3-point hitch capacity of 2,314.9 lb at 24 inches, which is very high compared to other tractors in its category. This means it can handle heavy loads with ease. The tractor also has a 540 rpm PTO speed, which is great for running various attachments. Despite its power, the tractor is relatively light, weighing 3,734.7 lb. This makes it less likely to compact soil while working in fields.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | MX5200HSTRC |
| Category | Utility tractor |
| Operating weight | 3,734.7lb |
Engine
| Make | Kubota |
|---|---|
| Model | V2403CR-T |
| Power | 52.1hp |
| Cylinders | 4 |
| Displacement | 148.6ci |
Power take-off
| PTO speed | 540rpm |
|---|
Dimensions
| Length | 125.2in |
|---|---|
| Height | 96in |
| Operating weight | 3,734.7lb |
Head to head
MX5200HSTRC vs. Utility median
How the Kubota MX5200HSTRC compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 52.1 hp | 55 hp | -5% | 48th |
| Engine Displacement | 149 ci | 183 ci | -19% | 38th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 3,735 lb | 5,303 lb | -30% | 32nd |
| Length | 125 in | 137 in | -8% | 34th |
| Height | 96 in | 94.1 in | +2% | 55th |
| 3-Point Hitch Capacity | 2,315 lb | 3,197 lb | -28% | 29th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota L5030GST | 52.2 hp | 3,703.8 lb | — | Compare → |
| Kubota L5040 | 52 hp | 3,803 lb | 2007–2013 | Compare → |
| Kubota L5040GST | 52 hp | 3,803 lb | — | Compare → |
| Kubota L5060GSTRC | 52 hp | 3,924.3 lb | — | Compare → |
| Kubota L5240 | 52 hp | 3,902 lb | 2007–2017 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Agco ST52a | 52.1 hp | 3,494.4 lb | — | Compare → |
| AGCO GT45 | 52 hp | 4,806 lb | — | Compare → |
| Agco GT45A | 52 hp | 5,820.3 lb | — | Compare → |
| Barreiros 50.55 | 52 hp | 5,100 lb | — | Compare → |
| Barreiros R-500 | 52 hp | — | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

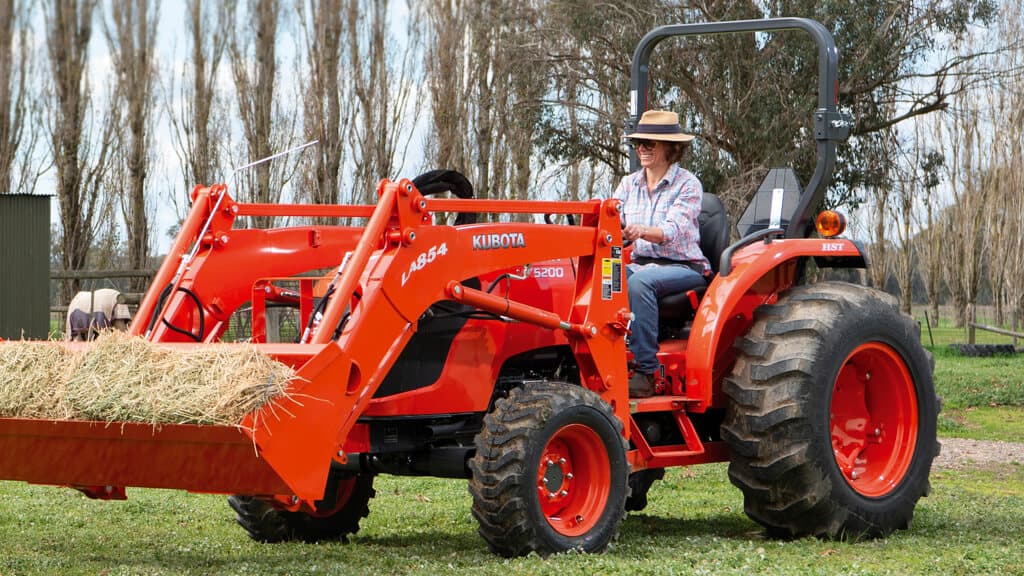

Kubota MX5200HSTRC photos
FAQ
Common questions
What is the engine power output of the Kubota MX5200HSTRC?
Rated engine output for the Kubota MX5200HSTRC is 52.1 hp, delivered by a 4-cylinder engine. The engine displaces 148.6 ci.
What is the operating weight of the Kubota MX5200HSTRC?
In working trim, the Kubota MX5200HSTRC comes in at roughly 3,734.7 lb.
How do I maintain a Kubota MX5200HSTRC?
Routine service for the Kubota MX5200HSTRC covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
