Same brandUtility tractorsSpec sheet
LS C3030
The LS C3030 is a utility tractor built for versatility and performance. It features a 4x4 MFWD chassis with four-wheel drive, making it capable of handling various farm tasks. The tractor is powered by a Mitsubishi S4L2 engine, which is a 4-cylinder, liquid-cooled diesel engine. This engine produces 28.5 hp at 2600 rpm, offering average power for its class. The C3030 comes with a synchro shuttle transmission, providing 12 forward and 12 reverse gears for a total of 24 gears. This gives operators plenty of options for different jobs. The tractor has hydrostatic power steering, making it easy to control. It's equipped with a Category I hitch, allowing it to work with many implements. At 131 inches long and 82 inches tall, with an operating weight of 2998 lb, this tractor is compact yet sturdy. The electric starter ensures quick and easy engine starts, even in cold weather.
ManufacturerLSPower28.5 hp(21.3 kW)Class25–40 HP tractors →Engine4-cylinderTransmissionSynchro shuttle
Key specifications
- Category
- Utility
- Engine power
- 29hp
- Operating weight
- 2,998 lb
- Transmission
- Synchro shuttle
Category comparison
C3030 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
28.5 hp · 21st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The C3030 ranks at the 21st percentile for engine power among recorded utility tractors.
Overview
About the LS C3030
The LS C3030 is a utility tractor built for versatility and performance. It features a 4x4 MFWD chassis with four-wheel drive, making it capable of handling various farm tasks. The tractor is powered by a Mitsubishi S4L2 engine, which is a 4-cylinder, liquid-cooled diesel engine. This engine produces 28.5 hp at 2600 rpm, offering average power for its class. The C3030 comes with a synchro shuttle transmission, providing 12 forward and 12 reverse gears for a total of 24 gears. This gives operators plenty of options for different jobs. The tractor has hydrostatic power steering, making it easy to control. It's equipped with a Category I hitch, allowing it to work with many implements. At 131 inches long and 82 inches tall, with an operating weight of 2998 lb, this tractor is compact yet sturdy. The electric starter ensures quick and easy engine starts, even in cold weather.
Full specifications
Recorded specifications
General
| Manufacturer | LS |
|---|---|
| Model | C3030 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 2,998lb(1,360 kg) |
Engine
| Make | Mitsubishi |
|---|---|
| Model | S4L2 |
| Power | 28.5hp(21.25 kW) |
| Cylinders | 4 |
| Displacement | 107.3ci(1.76 L) |
| Bore | 3.07in(78 mm) |
| Stroke | 3.62in(92 mm) |
Transmission
| Type | Synchro shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 131in(3,327 mm) |
|---|---|
| Height | 82in(2,083 mm) |
| Operating weight | 2,998lb(1,360 kg) |
Closest alternatives
C3030 compared with the nearest models by horsepower
The closest utility models to the LS C3030 by rated horsepower are the LS i3030 and the LS i3030H. The LS i3030 matches it on rated power and weighs 220 lb less. The LS i3030H matches it on rated power and weighs 220 lb less. Of the 3 models, the C3030 has the highest weight per horsepower at 105 lb per hp.
| Spec | LS C3030 | LS i3030 | LS i3030H |
|---|---|---|---|
| Engine power | 28.5 hp21.3 kW | 28.5 hp21.3 kW | 28.5 hp21.3 kW |
| Operating weight | 2,998 lb1,360 kg | 2,780 lb1,261 kg | 2,780 lb1,261 kg |
| Weight per hp | 105 lb/hp64 kg/kW | 98 lb/hp59 kg/kW | 98 lb/hp59 kg/kW |
| Displacement | 107.3 ci1.76 L | 91.5 ci1.5 L | 91.5 ci1.5 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Synchro shuttle | Synchro shuttle | Hydrostatic |
| Drive | 4WD | 4WD | 4WD |
Calculators
Calculators for the C3030
PTO power
About 24 to 26 PTO hp
Estimated from the 28.5 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 28.5 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
122 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
28.5 hp is 21.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
C3030 vs. Utility median
LS C3030 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 28.5 hp | 55 hp | -48% | 21st |
| Engine Displacement | 107 ci | 183 ci | -41% | 25th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 2,998 lb | 5,303 lb | -43% | 23rd |
| Length | 131 in | 137 in | -4% | 42nd |
| Height | 82 in | 94.1 in | -13% | 29th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other LS models
Other manufacturers
Models with similar horsepower
Gallery

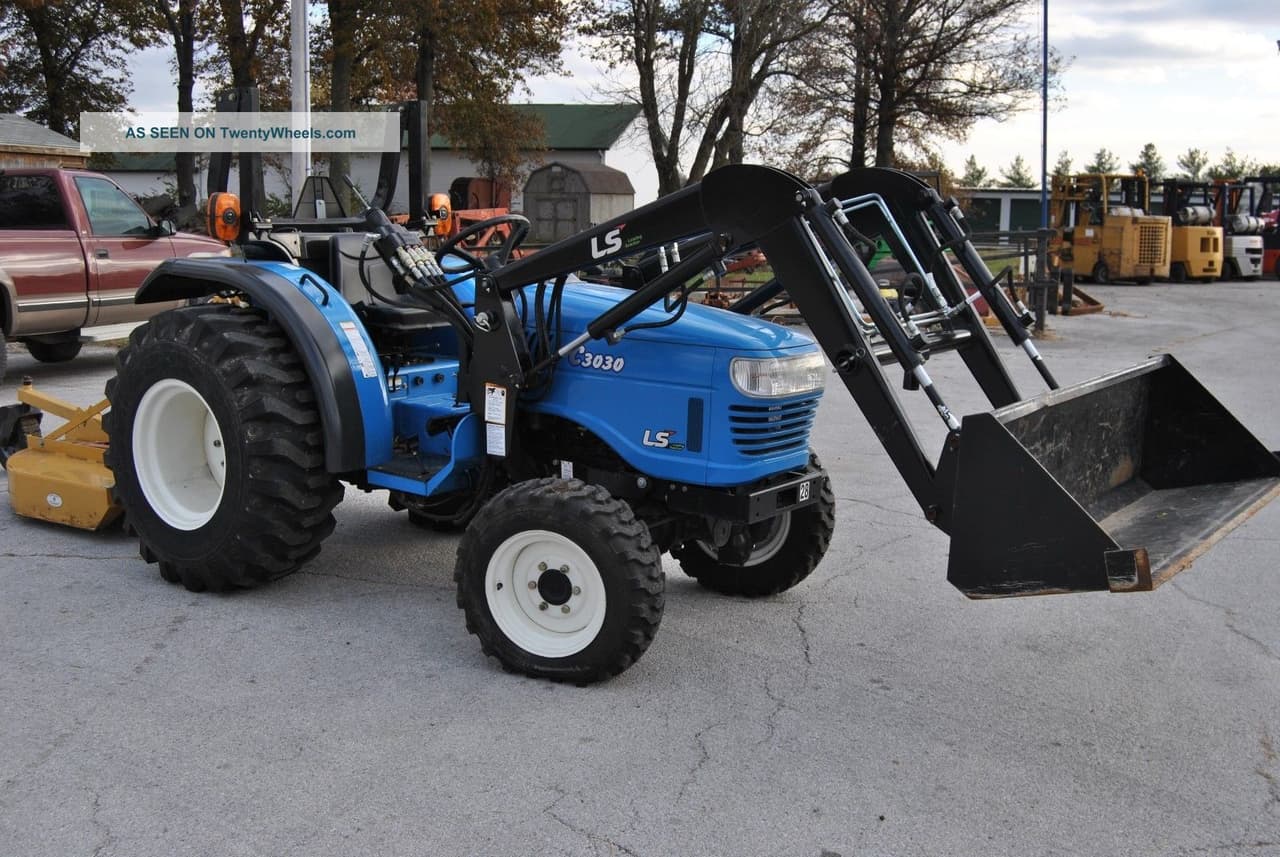

LS C3030 photos
FAQ
Frequently asked questions
What is the engine power output of the LS C3030?
Rated engine output for the LS C3030 is 28.5 hp, delivered by a 4-cylinder engine. The engine displaces 107.3 ci.
Which transmission does the LS C3030 use?
The LS C3030 is equipped with a Synchro shuttle transmission with 12 forward gears.
What is the operating weight of the LS C3030?
The LS C3030 has an operating weight of about 2,998 lb.
How do I maintain a LS C3030?
Routine service for the LS C3030 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
