Same brandUtility tractorsSpec sheet

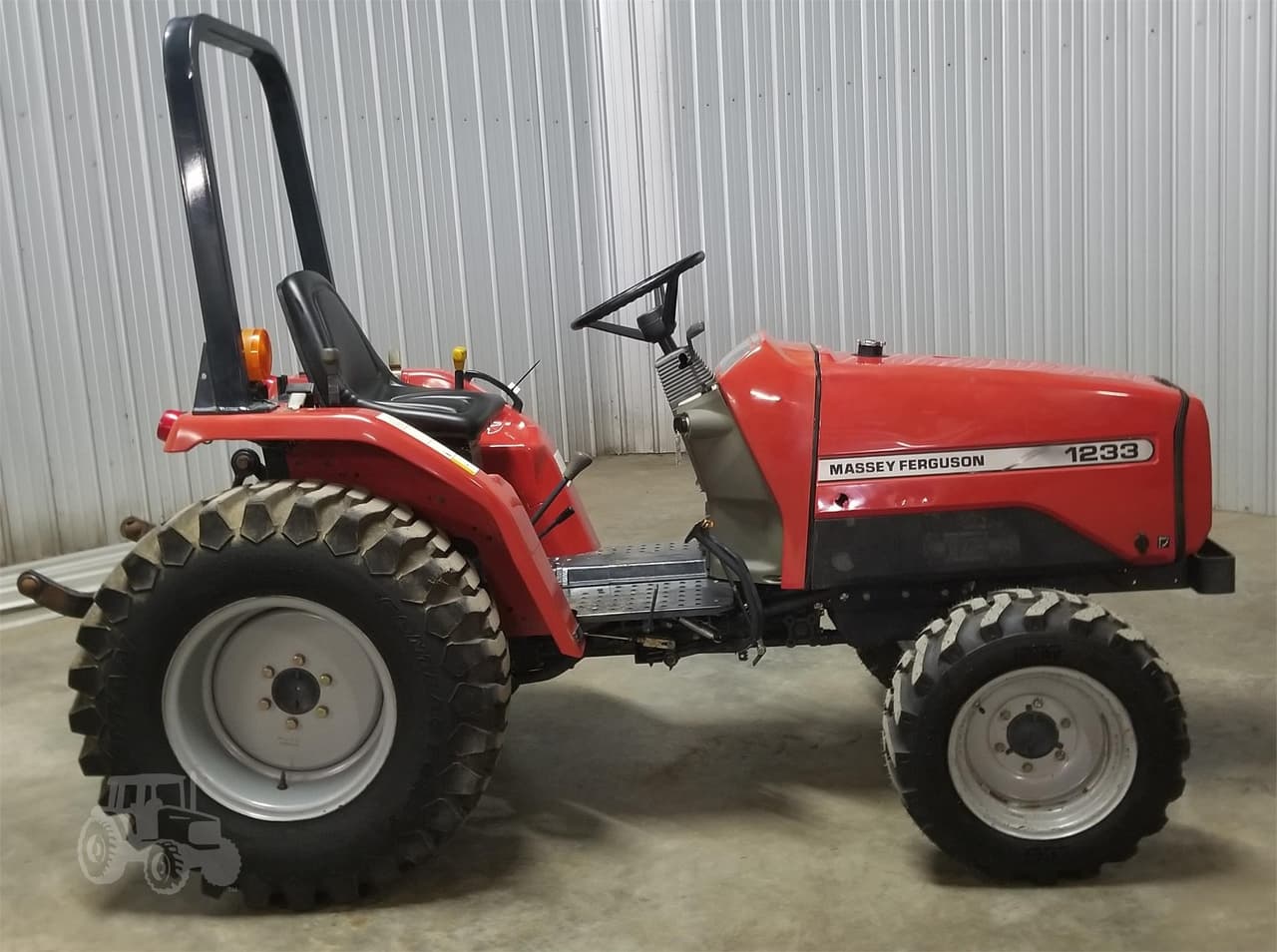

Massey Ferguson 1233
The Massey Ferguson 1233 is a utility tractor built from 2001 to 2002. It's a compact machine, weighing 2000 lb, which is lighter than most tractors. This makes it easy to move around and good for smaller jobs. The tractor has a diesel engine made by Iseki. It's a 3-cylinder engine that's liquid-cooled and naturally aspirated. The engine is small, with 89.3 ci displacement, but it can produce 28.4 hp at 2500 rpm. This power is average for its size. The tractor has a gear transmission with 9 forward gears and 3 reverse gears, giving the driver good control. It has both rear and mid PTO, with speeds of 540 rpm and 2000 rpm. This lets you use different tools with the tractor. The Massey Ferguson 1233 also has a Type I rear hitch, which is useful for attaching equipment.
ManufacturerMassey FergusonPower28.4 hp(21.2 kW)Class25–40 HP tractors →Engine3-cylinderTransmissionGear
Key specifications
- Category
- Utility
- Engine power
- 28hp
- Operating weight
- 2,000 lb
- Transmission
- Gear
Category comparison
1233 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
28.4 hp · 20th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 1233 ranks at the 20th percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 1233
The Massey Ferguson 1233 is a utility tractor built from 2001 to 2002. It's a compact machine, weighing 2000 lb, which is lighter than most tractors. This makes it easy to move around and good for smaller jobs. The tractor has a diesel engine made by Iseki. It's a 3-cylinder engine that's liquid-cooled and naturally aspirated. The engine is small, with 89.3 ci displacement, but it can produce 28.4 hp at 2500 rpm. This power is average for its size. The tractor has a gear transmission with 9 forward gears and 3 reverse gears, giving the driver good control. It has both rear and mid PTO, with speeds of 540 rpm and 2000 rpm. This lets you use different tools with the tractor. The Massey Ferguson 1233 also has a Type I rear hitch, which is useful for attaching equipment.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 1233 |
| Category | Utility tractor |
| Years built | 2001–2002 |
| Operating weight | 2,000lb(907.2 kg) |
Engine
| Make | Iseki |
|---|---|
| Power | 28.4hp(21.18 kW) |
| Cylinders | 3 |
| Displacement | 89.3ci(1.46 L) |
| Bore | 3.39in(86.11 mm) |
| Stroke | 3.3in(83.82 mm) |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Power take-off
| Rear PTO | Rear: 540 (1.375), Mid: 2000 |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Operating weight | 2,000lb(907.2 kg) |
|---|
Closest alternatives
1233 compared with the nearest models by horsepower
Among utility tractors, the Massey Ferguson 1529 and the Massey Ferguson 1528 are closest to the Massey Ferguson 1233 in rated horsepower. The Massey Ferguson 1529 matches it on rated power and weighs 580 lb more, at 91 lb per horsepower against 70 lb. It entered production in 2007, 6 years after the 1233. The Massey Ferguson 1528 matches it on rated power and weighs 420 lb more, so it carries more weight per horsepower, which helps traction in draft work. Of the 3 models, the 1233 has the lowest weight per horsepower at 70 lb per hp.
| Spec | Massey Ferguson 1233 | Massey Ferguson 1529 | Massey Ferguson 1528 |
|---|---|---|---|
| Engine power | 28.4 hp21.2 kW | 28.4 hp21.2 kW | 28.4 hp21.2 kW |
| Operating weight | 2,000 lb907 kg | 2,579 lb1,170 kg | 2,423 lb1,099 kg |
| Weight per hp | 70 lb/hp43 kg/kW | 91 lb/hp55 kg/kW | 85 lb/hp52 kg/kW |
| Displacement | 89.3 ci1.46 L | 91.4 ci1.5 L | 89.3 ci1.46 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Gear | SynchroShuttle | 9-speed gear and hydrostatic |
| Drive | - | 4WD | 4WD |
| Years built | 2001-2002 | 2007-2014 | 2005-2010 |
Calculators
Calculators for the 1233
PTO power
About 24 to 26 PTO hp
Estimated from the 28.4 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 28.4 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
82 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
28.4 hp is 21.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
1233 vs. Utility median
Massey Ferguson 1233 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 28.4 hp | 55 hp | -48% | 20th |
| Engine Displacement | 89.3 ci | 183 ci | -51% | 15th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 2,000 lb | 5,303 lb | -62% | 12th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,941–5,720 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery
Massey Ferguson 1233 photos
FAQ
Frequently asked questions
When was the Massey Ferguson 1233 in production?
Massey Ferguson 1233 production started in 2001 and ended in 2002.
How much horsepower does the Massey Ferguson 1233 have?
The Massey Ferguson 1233 produces 28.4 hp from its 3-cylinder engine. Engine displacement is 89.3 ci.
How much does the Massey Ferguson 1233 weigh?
The Massey Ferguson 1233 weighs about 2,000 lb in operating condition.
What transmission is in the Massey Ferguson 1233?
Transmission on the Massey Ferguson 1233 is Gear, with 9 forward speeds.
What maintenance does the Massey Ferguson 1233 require?
The Massey Ferguson 1233 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
