Massey Ferguson 174
The Massey Ferguson 174 is a utility tractor designed for various farm tasks. It has a Perkins A4.236 diesel engine with 4 cylinders and 65 horsepower. This engine is liquid-cooled and uses direct injection. The tractor's power is above average compared to other models, making it suitable for demanding jobs. This tractor has a partially synchronized transmission with 12 forward gears and 4 reverse gears, giving the operator plenty of options for different tasks. It features mechanical steering and a Category II rear hitch, which is common for tractors of this size. The Massey Ferguson 174 weighs 4,872 pounds and measures 142.3 inches long and 62 inches wide. It has agricultural tires in both front and rear, with sizes of 6.50-16 and 14.9/13-30 respectively. The tractor's wheelbase is 87 inches, providing good stability during operation.
ManufacturerMassey FergusonPower65 hpEngine4-cylTransPartially synchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 65hp
- Operating Weight
- 4,872 lb
- Transmission
- Partially synchronized
At a glance
How the 174 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
65 hp · 59th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 174 ranks at the 59th percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 174
The Massey Ferguson 174 is a utility tractor designed for various farm tasks. It has a Perkins A4.236 diesel engine with 4 cylinders and 65 horsepower. This engine is liquid-cooled and uses direct injection. The tractor's power is above average compared to other models, making it suitable for demanding jobs. This tractor has a partially synchronized transmission with 12 forward gears and 4 reverse gears, giving the operator plenty of options for different tasks. It features mechanical steering and a Category II rear hitch, which is common for tractors of this size. The Massey Ferguson 174 weighs 4,872 pounds and measures 142.3 inches long and 62 inches wide. It has agricultural tires in both front and rear, with sizes of 6.50-16 and 14.9/13-30 respectively. The tractor's wheelbase is 87 inches, providing good stability during operation.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 174 |
| Category | Utility tractor |
| Operating weight | 4,872lb |
Engine
| Make | Perkins |
|---|---|
| Model | A4.236 |
| Power | 65hp |
| Cylinders | 4 |
| Displacement | 235.8ci |
| Bore | 3.88in |
| Stroke | 5in |
Transmission
| Type | Partially synchronized |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Steering | Mechanical |
|---|
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 142.3in |
|---|---|
| Width | 62in |
| Operating weight | 4,872lb |
Capacities
| Cooling system | 3.98gal |
|---|
Head to head
174 vs. Utility median
How the Massey Ferguson 174 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 65 hp | 55 hp | +18% | 59th |
| Engine Displacement | 236 ci | 183 ci | +29% | 64th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 4,872 lb | 5,303 lb | -8% | 46th |
| Length | 142 in | 137 in | +4% | 58th |
| Width | 62 in | 66 in | -6% | 41st |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 174-4 | 65 hp | 5,490 lb | — | Compare → |
| Massey Ferguson 2606H | 65 hp | 5,115 lb | 2016+ | Compare → |
| Massey Ferguson 271 | 65 hp | 6,130 lb | 1998–2000 | Compare → |
| Massey Ferguson 4225 | 65 hp | 7,630 lb | 1997–2001 | Compare → |
| Massey Ferguson 425 | 65 hp | 5,710 lb | 2001–2010 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 500 | 65 hp | 6,100 lb | — | Compare → |
| Barreiros 70.7 | 64 hp | 5,450 lb | — | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
| Allis Chalmers D17 | 63 hp | 4,675 lb | 1957–1967 | Compare → |
| Barreiros 5500 | 67 hp | — | — | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery

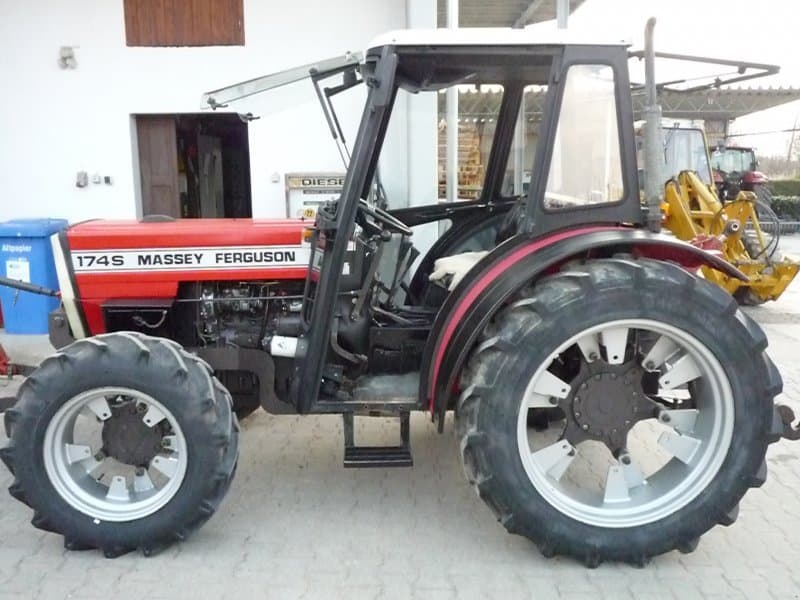

Massey Ferguson 174 photos
FAQ
Common questions
How much horsepower does the Massey Ferguson 174 have?
The Massey Ferguson 174 produces 65 hp from its 4-cylinder engine. Engine displacement is 235.8 ci.
How much does the Massey Ferguson 174 weigh?
The Massey Ferguson 174 weighs about 4,872 lb in operating condition.
What transmission is in the Massey Ferguson 174?
Transmission on the Massey Ferguson 174 is Partially synchronized, with 12 forward speeds.
What type of hydraulic system does the Massey Ferguson 174 use?
Hydraulics on the Massey Ferguson 174 are Open center.
What maintenance does the Massey Ferguson 174 require?
Like any tractor, the Massey Ferguson 174 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
