UtilityPerformance profile
Massey Ferguson 233
The Massey Ferguson 233 is a utility tractor built for versatile farm work. It has a 2WD chassis with hydrostatic power steering, making it easy to control. The tractor uses a manual transmission with 12 forward gears and 4 reverse gears, giving the driver plenty of options for different tasks. Under the hood, the Massey Ferguson 233 has a Perkins AD 3.152 engine with 3 cylinders. The engine has average displacement for its class at 152.7 ci. It produces 38 hp at 2150 rpm, which is above average power for tractors of this size. The tractor weighs 4961 lb, making it sturdy enough for most farm jobs. It's 138.6 inches long and 85.8 inches tall, with a wheelbase of 84.3 inches for good stability. The tractor uses agricultural tires, with wider rear tires for better traction in the fields.
ManufacturerMassey FergusonPower38 hpEngine3-cylTransManual
Quick specs
- Category
- Utility
- Engine Power Output
- 38hp
- Operating Weight
- 4,961 lb
- Transmission
- Manual
At a glance
How the 233 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
38 hp · 31st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 233 ranks at the 31st percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 233
The Massey Ferguson 233 is a utility tractor built for versatile farm work. It has a 2WD chassis with hydrostatic power steering, making it easy to control. The tractor uses a manual transmission with 12 forward gears and 4 reverse gears, giving the driver plenty of options for different tasks. Under the hood, the Massey Ferguson 233 has a Perkins AD 3.152 engine with 3 cylinders. The engine has average displacement for its class at 152.7 ci. It produces 38 hp at 2150 rpm, which is above average power for tractors of this size. The tractor weighs 4961 lb, making it sturdy enough for most farm jobs. It's 138.6 inches long and 85.8 inches tall, with a wheelbase of 84.3 inches for good stability. The tractor uses agricultural tires, with wider rear tires for better traction in the fields.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 233 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 4,961lb |
Engine
| Make | Perkins |
|---|---|
| Model | AD 3.152 |
| Power | 38hp |
| Cylinders | 3 |
| Displacement | 152.7ci |
| Bore | 3.6in |
| Stroke | 5in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic Power |
Dimensions
| Length | 138.6in |
|---|---|
| Height | 85.8in |
| Operating weight | 4,961lb |
Head to head
233 vs. Utility median
How the Massey Ferguson 233 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 38 hp | 55 hp | -31% | 31st |
| Engine Displacement | 153 ci | 183 ci | -17% | 40th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 4,961 lb | 5,303 lb | -6% | 47th |
| Length | 139 in | 137 in | +1% | 53rd |
| Height | 85.8 in | 94.1 in | -9% | 34th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 230 | 38 hp | 3,840 lb | 1976–1983 | Compare → |
| Massey Ferguson 231 | 38 hp | 4,068 lb | 1989–1999 | Compare → |
| Massey Ferguson 234S | 38 hp | — | — | Compare → |
| Massey Ferguson 2605 | 38 hp | 4,080 lb | 2007–2018 | Compare → |
| Massey Ferguson 133 | 37.5 hp | 3,175 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Tigre 4000F | 38 hp | 2,756 lb | — | Compare → |
| Antonio Carraro TTR 4400 | 38 hp | 2,811 lb | — | Compare → |
| Allis Chalmers D15 | 37.44 hp | 4,036 lb | — | Compare → |
| Avery 20-35 | 37.33 hp | 7,550 lb | 1923+ | Compare → |
| Allis Chalmers D14 | 37 hp | 3,500 lb | 1957–1960 | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery

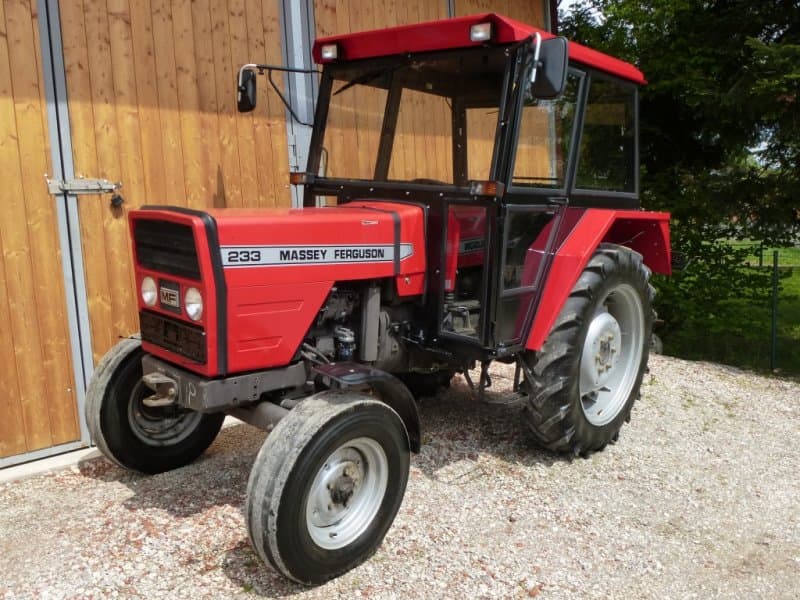

Massey Ferguson 233 photos
FAQ
Common questions
How powerful is the Massey Ferguson 233?
The Massey Ferguson 233 has an engine power output of 38 hp. It is powered by a 3-cylinder engine displacing 152.7 ci.
What type of transmission does the Massey Ferguson 233 have?
The Massey Ferguson 233 uses a Manual transmission offering 12 forward gears.
What is the working weight of the Massey Ferguson 233?
The operating weight of the Massey Ferguson 233 is approximately 4,961 lb.
What routine service does the Massey Ferguson 233 need?
Regular maintenance for the Massey Ferguson 233 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
