Massey Ferguson 234S
The Massey Ferguson 234S is a utility tractor built for everyday farm work. It has a 2-wheel drive system and manual steering, making it easy to handle in fields and barns. The tractor is powered by a Perkins AD3.152 engine, which is liquid-cooled and runs on diesel fuel. This tractor's engine has three cylinders and is naturally aspirated, meaning it doesn't use a turbocharger. It produces 38 horsepower, which is below average compared to other tractors. The engine size is also below average at 152.7 cubic inches. Despite its smaller size, the 234S is equipped with a category III hitch, allowing it to handle a wide range of implements. The tractor starts easily with its electric starter, making it convenient for daily use on the farm.
Key specifications
- Category
- Utility
- Engine power
- 38hp
Category comparison
234S compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
38 hp · 31st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 234S ranks at the 31st percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 234S
The Massey Ferguson 234S is a utility tractor built for everyday farm work. It has a 2-wheel drive system and manual steering, making it easy to handle in fields and barns. The tractor is powered by a Perkins AD3.152 engine, which is liquid-cooled and runs on diesel fuel. This tractor's engine has three cylinders and is naturally aspirated, meaning it doesn't use a turbocharger. It produces 38 horsepower, which is below average compared to other tractors. The engine size is also below average at 152.7 cubic inches. Despite its smaller size, the 234S is equipped with a category III hitch, allowing it to handle a wide range of implements. The tractor starts easily with its electric starter, making it convenient for daily use on the farm.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 234S |
| Category | Utility tractor |
| Type | 4x2 2WD |
Engine
| Make | Perkins |
|---|---|
| Model | AD3.152 |
| Power | 38hp(28.34 kW) |
| Cylinders | 3 |
| Displacement | 152.7ci(2.5 L) |
| Bore | 3.6in(91.44 mm) |
| Stroke | 5in(127 mm) |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Closest alternatives
234S compared with the nearest models by horsepower
Among utility tractors, the Massey Ferguson 2605 and the Massey Ferguson 231 are closest to the Massey Ferguson 234S in rated horsepower. The Massey Ferguson 2605 matches it on rated power. The Massey Ferguson 231 matches it on rated power.
| Spec | Massey Ferguson 234S | Massey Ferguson 2605 | Massey Ferguson 231 |
|---|---|---|---|
| Engine power | 38 hp28.3 kW | 38 hp28.3 kW | 38 hp28.3 kW |
| Operating weight | - | 4,080 lb1,851 kg | 4,068 lb1,845 kg |
| Weight per hp | - | 107 lb/hp65 kg/kW | 107 lb/hp65 kg/kW |
| Displacement | 152.7 ci2.5 L | 152.6 ci2.5 L | 152 ci2.49 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | - | CenterShift | Sliding gear |
| Drive | 2WD | - | 2WD |
| Years built | - | 2007-2018 | 1989-1999 |
Calculators
Calculators for the 234S
PTO power
About 32 to 34 PTO hp
Estimated from the 38 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 38 hp tractor can run
Maximum size is about a 4.5 ft rotary cutter or a 4 ft tiller. The calculator also sizes discs, plows and balers.
Units
38 hp is 28.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
234S vs. Utility median
Massey Ferguson 234S compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 38 hp | 55 hp | -31% | 31st |
| Engine Displacement | 153 ci | 183 ci | -17% | 40th |
| Cylinders | 3 | 4 | -25% | 23rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 5,383–5,720 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery

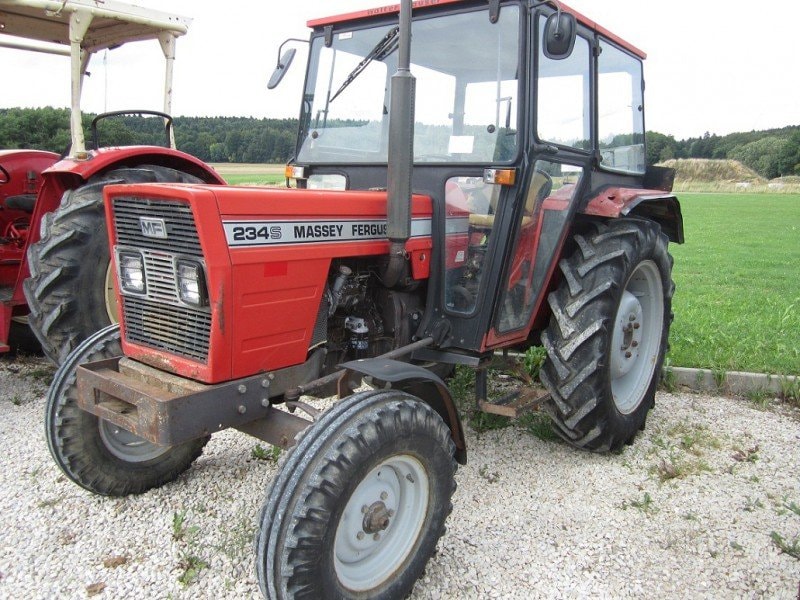

Massey Ferguson 234S photos
FAQ
Frequently asked questions
What is the engine power output of the Massey Ferguson 234S?
Rated engine output for the Massey Ferguson 234S is 38 hp, delivered by a 3-cylinder engine. The engine displaces 152.7 ci.
What hitch category is the Massey Ferguson 234S?
The Massey Ferguson 234S uses a Category III hitch.
How do I maintain a Massey Ferguson 234S?
Routine service for the Massey Ferguson 234S covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
