UtilityPerformance profile
McCormick Intl B100 Max
The McCormick Intl B100 Max is a utility tractor designed for various farm tasks. It has a 2-wheel drive system and a mechanical shuttle transmission with 12 forward and 4 reverse gears. This tractor is powered by a Perkins 1104D-44T engine, which is a 4-cylinder, turbocharged diesel engine that's liquid-cooled. The B100 Max's engine is quite strong for its size, with an above-average displacement of 268 cubic inches. It produces 92.5 horsepower at 2200 RPM, which is also above average for tractors in its class. The tractor meets Tier III emissions standards, making it relatively eco-friendly. It has a sturdy build, weighing 7,326 pounds, which is above average for similar tractors. The B100 Max is 162.8 inches long and 81.2 inches wide, with agricultural tires on both front and rear. It features a Category II hitch for attaching various implements and an electric starter for easy operation.
ManufacturerMcCormick IntlPower92.5 hpEngine4-cylTransMechanical Shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 93hp
- Operating Weight
- 7,326 lb
- Transmission
- Mechanical Shuttle
At a glance
How the B100 Max compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
92.5 hp · 79th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The B100 Max ranks at the 79th percentile for engine power among recorded utility tractors.
Overview
About the McCormick Intl B100 Max
The McCormick Intl B100 Max is a utility tractor designed for various farm tasks. It has a 2-wheel drive system and a mechanical shuttle transmission with 12 forward and 4 reverse gears. This tractor is powered by a Perkins 1104D-44T engine, which is a 4-cylinder, turbocharged diesel engine that's liquid-cooled. The B100 Max's engine is quite strong for its size, with an above-average displacement of 268 cubic inches. It produces 92.5 horsepower at 2200 RPM, which is also above average for tractors in its class. The tractor meets Tier III emissions standards, making it relatively eco-friendly. It has a sturdy build, weighing 7,326 pounds, which is above average for similar tractors. The B100 Max is 162.8 inches long and 81.2 inches wide, with agricultural tires on both front and rear. It features a Category II hitch for attaching various implements and an electric starter for easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | B100 Max |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 7,326lb |
Engine
| Make | Perkins |
|---|---|
| Model | 1104D-44T |
| Power | 92.5hp |
| Cylinders | 4 |
| Displacement | 268ci |
| Bore | 4.13in |
| Stroke | 5in |
Transmission
| Type | Mechanical Shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 162.8in |
|---|---|
| Width | 81.2in |
| Operating weight | 7,326lb |
Head to head
B100 Max vs. Utility median
How the McCormick Intl B100 Max compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 92.5 hp | 55 hp | +68% | 79th |
| Engine Displacement | 268 ci | 183 ci | +46% | 75th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 7,326 lb | 5,303 lb | +38% | 70th |
| Length | 163 in | 137 in | +19% | 80th |
| Width | 81.2 in | 66 in | +23% | 84th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared McCormick Intl tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick Intl C100 Max | 92.5 hp | 7,341 lb | — | Compare → |
| McCormick Intl C100 Max High Clear | 92.5 hp | 7,628 lb | — | Compare → |
| McCormick Intl T100 Max | 92.5 hp | 8,378 lb | — | Compare → |
| McCormick Intl X60.20 | 92.5 hp | 9,259 lb | — | Compare → |
| McCormick Intl C95 Max | 91.9 hp | 6,813 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 6080 | 93 hp | 6,500 lb | 1980–1985 | Compare → |
| Antonio Carraro SRX 10400 | 95 hp | 4,718 lb | — | Compare → |
| Antonio Carraro TGF 10400 | 95 hp | 5,247 lb | — | Compare → |
| Antonio Carraro TRG 10400 | 95 hp | 5,247 lb | — | Compare → |
| Antonio Carraro TRX 10400 | 95 hp | 4,828 lb | — | Compare → |
Explore
McCormick Intl siblings
Brand sibling
Brand siblingExplore
Similar-spec models
Gallery

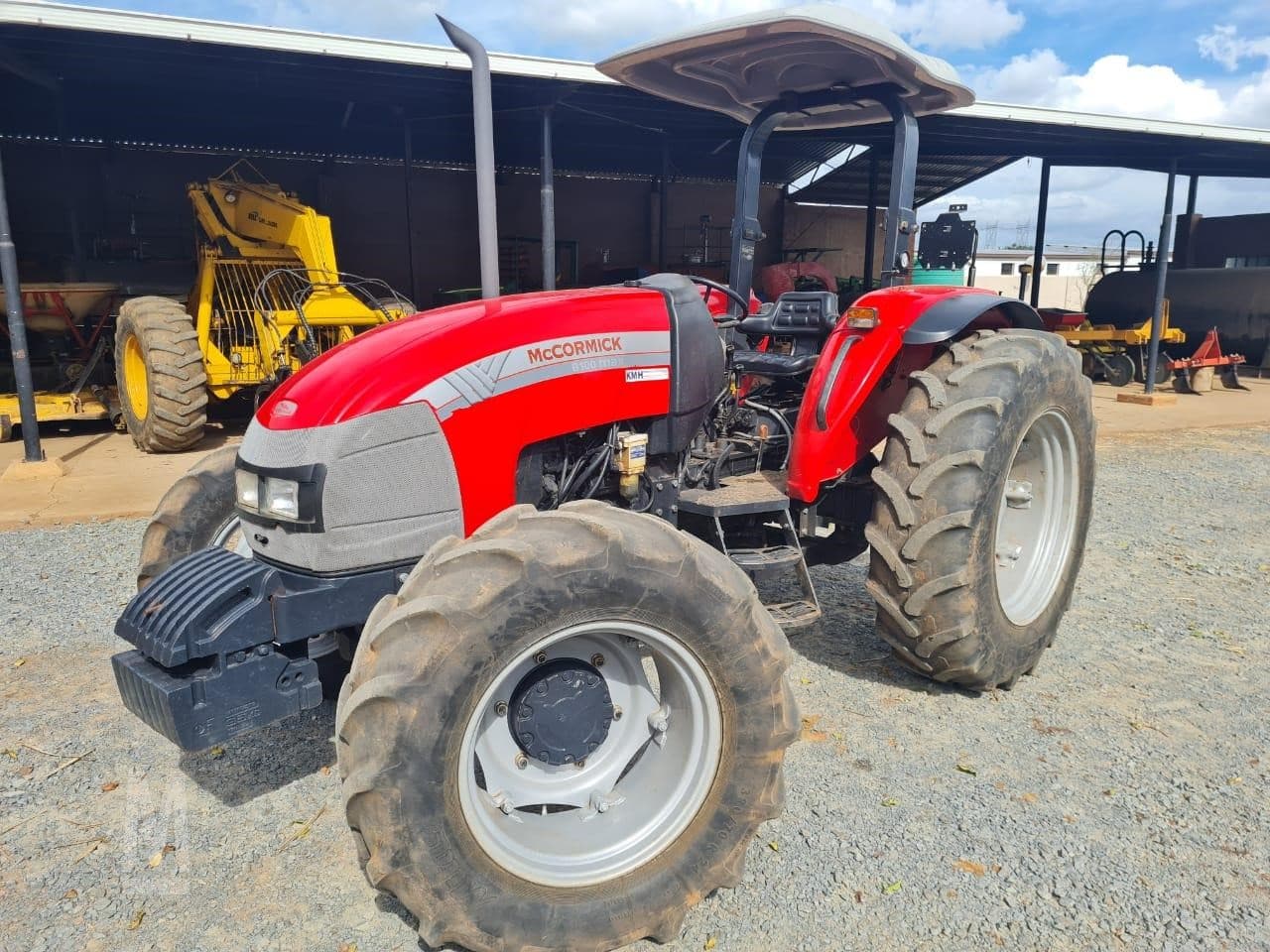

McCormick Intl B100 Max photos
FAQ
Common questions
What is the engine power output of the McCormick Intl B100 Max?
Rated engine output for the McCormick Intl B100 Max is 92.5 hp, delivered by a 4-cylinder engine. The engine displaces 268 ci.
Which transmission does the McCormick Intl B100 Max use?
The McCormick Intl B100 Max is equipped with a Mechanical Shuttle transmission with 12 forward gears.
What hitch category is the McCormick Intl B100 Max?
The McCormick Intl B100 Max uses a Category II hitch.
What is the operating weight of the McCormick Intl B100 Max?
In working trim, the McCormick Intl B100 Max comes in at roughly 7,326 lb.
How do I maintain a McCormick Intl B100 Max?
Routine service for the McCormick Intl B100 Max covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
