McCormick Intl C100 Max High Clear
The McCormick Intl C100 Max High Clear is a powerful utility tractor designed for high-clearance work. It features a 2WD chassis with power steering, making it easy to maneuver in various farm settings. The tractor is equipped with a mechanical shuttle transmission, offering 12 forward and 12 reverse gears for versatile operation. Under the hood, this tractor boasts a Perkins 1104D-44TA engine. This 4-cylinder, turbocharged diesel engine is liquid-cooled and packs a punch with 92.5 hp at 2200 rpm. The engine's displacement is above average at 268.5 ci, providing strong performance for demanding tasks. With its high ground clearance of 26.9 inches, this tractor is well-suited for working with tall crops or in challenging terrain. The C100 Max High Clear has an operating weight of 7628 lb and comes with a category II hitch, making it compatible with a wide range of farm implements.
ManufacturerMcCormick IntlPower92.5 hpEngine4-cylTransMechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 93hp
- Operating Weight
- 7,628 lb
- Transmission
- Mechanical shuttle
At a glance
How the C100 Max High Clear compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
92.5 hp · 79th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The C100 Max High Clear ranks at the 79th percentile for engine power among recorded utility tractors.
Overview
About the McCormick Intl C100 Max High Clear
The McCormick Intl C100 Max High Clear is a powerful utility tractor designed for high-clearance work. It features a 2WD chassis with power steering, making it easy to maneuver in various farm settings. The tractor is equipped with a mechanical shuttle transmission, offering 12 forward and 12 reverse gears for versatile operation. Under the hood, this tractor boasts a Perkins 1104D-44TA engine. This 4-cylinder, turbocharged diesel engine is liquid-cooled and packs a punch with 92.5 hp at 2200 rpm. The engine's displacement is above average at 268.5 ci, providing strong performance for demanding tasks. With its high ground clearance of 26.9 inches, this tractor is well-suited for working with tall crops or in challenging terrain. The C100 Max High Clear has an operating weight of 7628 lb and comes with a category II hitch, making it compatible with a wide range of farm implements.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | C100 Max High Clear |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 7,628lb |
Engine
| Make | Perkins |
|---|---|
| Model | 1104D-44TA |
| Power | 92.5hp |
| Cylinders | 4 |
| Displacement | 268.5ci |
| Bore | 4.13in |
| Stroke | 5in |
Transmission
| Type | Mechanical shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 162.5in |
|---|---|
| Width | 65.8in |
| Operating weight | 7,628lb |
Head to head
C100 Max High Clear vs. Utility median
How the McCormick Intl C100 Max High Clear compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 92.5 hp | 55 hp | +68% | 79th |
| Engine Displacement | 269 ci | 183 ci | +47% | 77th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 7,628 lb | 5,303 lb | +44% | 73rd |
| Length | 163 in | 137 in | +19% | 80th |
| Width | 65.8 in | 66 in | 0% | 50th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared McCormick Intl tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick Intl B100 Max | 92.5 hp | 7,326 lb | — | Compare → |
| McCormick Intl C100 Max | 92.5 hp | 7,341 lb | — | Compare → |
| McCormick Intl T100 Max | 92.5 hp | 8,378 lb | — | Compare → |
| McCormick Intl X60.20 | 92.5 hp | 9,259 lb | — | Compare → |
| McCormick Intl C95 Max | 91.9 hp | 6,813 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 6080 | 93 hp | 6,500 lb | 1980–1985 | Compare → |
| Antonio Carraro SRX 10400 | 95 hp | 4,718 lb | — | Compare → |
| Antonio Carraro TGF 10400 | 95 hp | 5,247 lb | — | Compare → |
| Antonio Carraro TRG 10400 | 95 hp | 5,247 lb | — | Compare → |
| Antonio Carraro TRX 10400 | 95 hp | 4,828 lb | — | Compare → |
Explore
McCormick Intl siblings
Brand sibling
Brand siblingExplore
Similar-spec models
Gallery

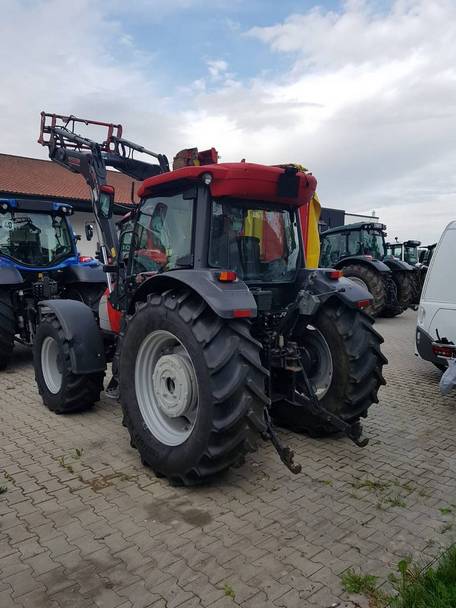

McCormick Intl C100 Max High Clear photos
FAQ
Common questions
What is the engine power output of the McCormick Intl C100 Max High Clear?
Rated engine output for the McCormick Intl C100 Max High Clear is 92.5 hp, delivered by a 4-cylinder engine. The engine displaces 268.5 ci.
Which transmission does the McCormick Intl C100 Max High Clear use?
The McCormick Intl C100 Max High Clear is equipped with a Mechanical shuttle transmission with 12 forward gears.
What hitch category is the McCormick Intl C100 Max High Clear?
The McCormick Intl C100 Max High Clear uses a Category II hitch.
What is the operating weight of the McCormick Intl C100 Max High Clear?
In working trim, the McCormick Intl C100 Max High Clear comes in at roughly 7,628 lb.
How do I maintain a McCormick Intl C100 Max High Clear?
Routine service for the McCormick Intl C100 Max High Clear covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
