Utility tractorsSpec sheet
McCormick Intl C70S
The McCormick Intl C70S is a sturdy 2WD tractor designed for various farming tasks. It features a 4x2 chassis and a powerful Perkins diesel engine. This liquid-cooled engine has 4 cylinders and produces 73 hp, making it suitable for medium-sized farms and general agricultural work. The C70S comes with a versatile transmission, offering 16 forward gears and 8 reverse gears. This wide range of gears allows farmers to choose the right speed for different jobs. The tractor weighs 8,265 lb, providing good stability during operation. It also has a two-paper element air cleaner, which helps keep the engine running smoothly in dusty conditions. With its 258 ci engine displacement, the C70S offers a good balance of power and efficiency for everyday farming needs.
Key specifications
- Category
- Utility
- Engine power
- 73hp
- Operating weight
- 8,265 lb
Category comparison
C70S compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
73 hp · 66th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The C70S ranks at the 66th percentile for engine power among recorded utility tractors.
Overview
About the McCormick Intl C70S
The McCormick Intl C70S is a sturdy 2WD tractor designed for various farming tasks. It features a 4x2 chassis and a powerful Perkins diesel engine. This liquid-cooled engine has 4 cylinders and produces 73 hp, making it suitable for medium-sized farms and general agricultural work. The C70S comes with a versatile transmission, offering 16 forward gears and 8 reverse gears. This wide range of gears allows farmers to choose the right speed for different jobs. The tractor weighs 8,265 lb, providing good stability during operation. It also has a two-paper element air cleaner, which helps keep the engine running smoothly in dusty conditions. With its 258 ci engine displacement, the C70S offers a good balance of power and efficiency for everyday farming needs.
Full specifications
Recorded specifications
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | C70S |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 8,265lb(3,749 kg) |
Engine
| Make | Perkins |
|---|---|
| Power | 73hp(54.44 kW) |
| Cylinders | 4 |
| Displacement | 258ci(4.23 L) |
Transmission
| Forward gears | 16 |
|---|---|
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Operating weight | 8,265lb(3,749 kg) |
|---|
Closest alternatives
C70S compared with the nearest models by horsepower
The closest utility models to the McCormick Intl C70S by rated horsepower are the McCormick Intl C70 and the McCormick Intl CX70. The McCormick Intl C70 matches it on rated power and weighs 2,320 lb less, carrying 81 lb per horsepower against 113 lb. The McCormick Intl CX70 matches it on rated power and weighs 1,020 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the C70S has the highest weight per horsepower at 113 lb per hp.
| Spec | McCormick Intl C70S | McCormick Intl C70 | McCormick Intl CX70 |
|---|---|---|---|
| Engine power | 73 hp54.4 kW | 73 hp54.4 kW | 73 hp54.4 kW |
| Operating weight | 8,265 lb3,749 kg | 5,941 lb2,695 kg | 7,242 lb3,285 kg |
| Weight per hp | 113 lb/hp69 kg/kW | 81 lb/hp50 kg/kW | 99 lb/hp60 kg/kW |
| Displacement | 258 ci4.23 L | 256.3 ci4.2 L | 256.3 ci4.2 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | - | Synchromesh | Sync shuttle / Two-speed power shift |
| Drive | 2WD | 2WD | 2WD |
Calculators
Calculators for the C70S
PTO power
About 61 to 66 PTO hp
Estimated from the 73 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 73 hp tractor can run
Maximum size is about a 8.5 ft rotary cutter or a 7.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
132 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
73 hp is 54.4 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
C70S vs. Utility median
McCormick Intl C70S compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 73 hp | 55 hp | +33% | 66th |
| Engine Displacement | 258 ci | 183 ci | +41% | 73rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 8,265 lb | 5,303 lb | +56% | 77th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,941–5,720 models).
Same manufacturer
Other McCormick Intl models
Other manufacturers
Models with similar horsepower
Gallery

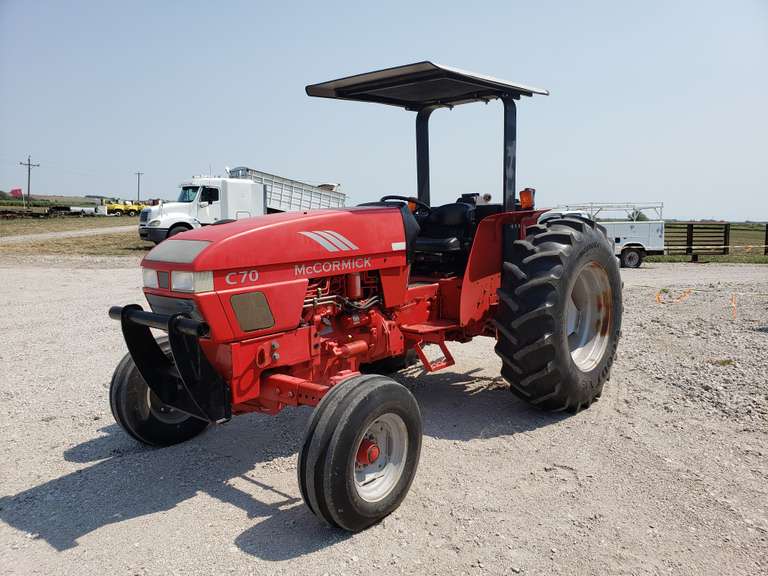

McCormick Intl C70S photos
FAQ
Frequently asked questions
How powerful is the McCormick Intl C70S?
The McCormick Intl C70S has an engine power output of 73 hp. It is powered by a 4-cylinder engine displacing 258 ci.
What is the working weight of the McCormick Intl C70S?
The operating weight of the McCormick Intl C70S is approximately 8,265 lb.
What routine service does the McCormick Intl C70S need?
Regular maintenance for the McCormick Intl C70S includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
