McCormick Intl T80 Max
The McCormick Intl T80 Max is a versatile utility tractor designed for various farm tasks. It features a powerful 4-cylinder Perkins diesel engine with 74 horsepower, which is above average for its class. The engine has a displacement of 268.5 cubic inches, which is also above average, providing strong performance for demanding jobs. This tractor comes with a 4-wheel drive system and power steering, making it easy to handle in different field conditions. It has a unique transmission with 36 forward gears and 12 reverse gears, giving farmers plenty of options for different tasks. The T80 Max is equipped with a three-point hitch at the rear, suitable for attaching various implements. It also has an open center hydraulic system, which is common in utility tractors. The tractor's size is compact yet capable, measuring 164 inches long, 83 inches wide, and 101 inches tall, with a weight of 8,378 pounds. This makes it a good fit for both small and medium-sized farms.
ManufacturerMcCormick IntlPower74 hpEngine4-cylTransPower shuttle and three-speed power shift
Quick specs
- Category
- Utility
- Engine Power Output
- 74hp
- Operating Weight
- 8,378 lb
- Transmission
- Power shuttle and three-speed power shift
At a glance
How the T80 Max compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
74 hp · 66th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The T80 Max ranks at the 66th percentile for engine power among recorded utility tractors.
Overview
About the McCormick Intl T80 Max
The McCormick Intl T80 Max is a versatile utility tractor designed for various farm tasks. It features a powerful 4-cylinder Perkins diesel engine with 74 horsepower, which is above average for its class. The engine has a displacement of 268.5 cubic inches, which is also above average, providing strong performance for demanding jobs. This tractor comes with a 4-wheel drive system and power steering, making it easy to handle in different field conditions. It has a unique transmission with 36 forward gears and 12 reverse gears, giving farmers plenty of options for different tasks. The T80 Max is equipped with a three-point hitch at the rear, suitable for attaching various implements. It also has an open center hydraulic system, which is common in utility tractors. The tractor's size is compact yet capable, measuring 164 inches long, 83 inches wide, and 101 inches tall, with a weight of 8,378 pounds. This makes it a good fit for both small and medium-sized farms.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick Intl |
|---|---|
| Model | T80 Max |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 8,378lb |
Engine
| Make | Perkins |
|---|---|
| Model | 1104D-44 |
| Power | 74hp |
| Cylinders | 4 |
| Displacement | 268.5ci |
| Bore | 4.13in |
| Stroke | 5in |
Transmission
| Type | Power shuttle and three-speed power shift |
|---|---|
| Forward gears | 36 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | Cab and ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 164in |
|---|---|
| Width | 83in |
| Height | 101in |
| Operating weight | 8,378lb |
Head to head
T80 Max vs. Utility median
How the McCormick Intl T80 Max compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 74 hp | 55 hp | +35% | 66th |
| Engine Displacement | 269 ci | 183 ci | +47% | 77th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 36 | 12 | +200% | 99th |
| Operating Weight | 8,378 lb | 5,303 lb | +58% | 78th |
| Length | 164 in | 137 in | +20% | 82nd |
| Width | 83 in | 66 in | +26% | 86th |
| Height | 101 in | 94.1 in | +7% | 68th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared McCormick Intl tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick Intl B80 Max | 74 hp | 7,326 lb | — | Compare → |
| McCormick Intl C80 Max | 74 hp | — | — | Compare → |
| McCormick Intl C80L | 73.7 hp | 5,190 lb | — | Compare → |
| McCormick Intl X10.75M | 74.4 hp | 7,749 lb | — | Compare → |
| McCormick Intl C70 | 73 hp | 5,941 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
| Antonio Carraro SX 7800S | 71 hp | 4,773 lb | — | Compare → |
| Antonio Carraro TGF 7800S | 71 hp | 5,093 lb | — | Compare → |
Explore
McCormick Intl siblings
Explore
Similar-spec models
Gallery

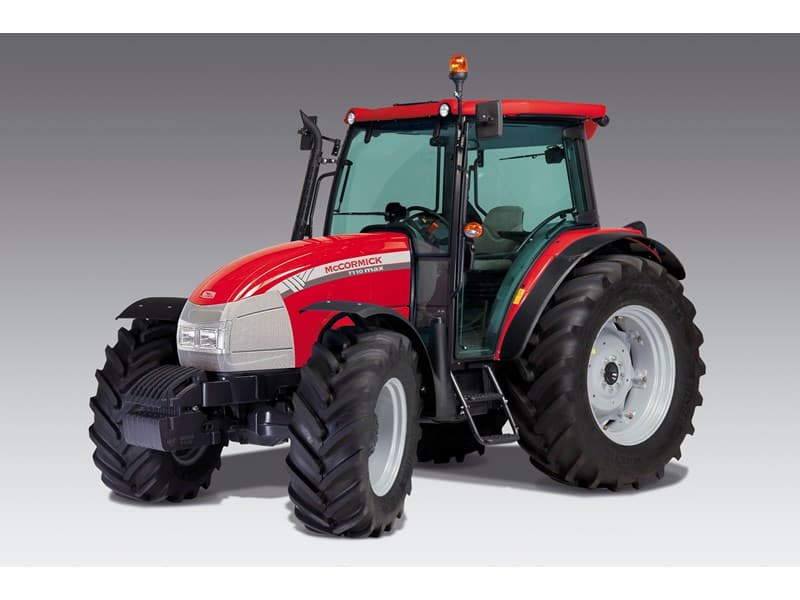

McCormick Intl T80 Max photos
FAQ
Common questions
How much horsepower does the McCormick Intl T80 Max have?
The McCormick Intl T80 Max produces 74 hp from its 4-cylinder engine. Engine displacement is 268.5 ci.
How much does the McCormick Intl T80 Max weigh?
The McCormick Intl T80 Max weighs about 8,378 lb in operating condition.
What transmission is in the McCormick Intl T80 Max?
Transmission on the McCormick Intl T80 Max is Power shuttle and three-speed power shift, with 36 forward speeds.
What hydraulics does the McCormick Intl T80 Max have?
The McCormick Intl T80 Max uses an Open Center hydraulic system.
What three-point hitch category does the McCormick Intl T80 Max use?
The McCormick Intl T80 Max has a Category II three-point hitch.
What maintenance does the McCormick Intl T80 Max require?
Like any tractor, the McCormick Intl T80 Max needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
