UtilityPerformance profile

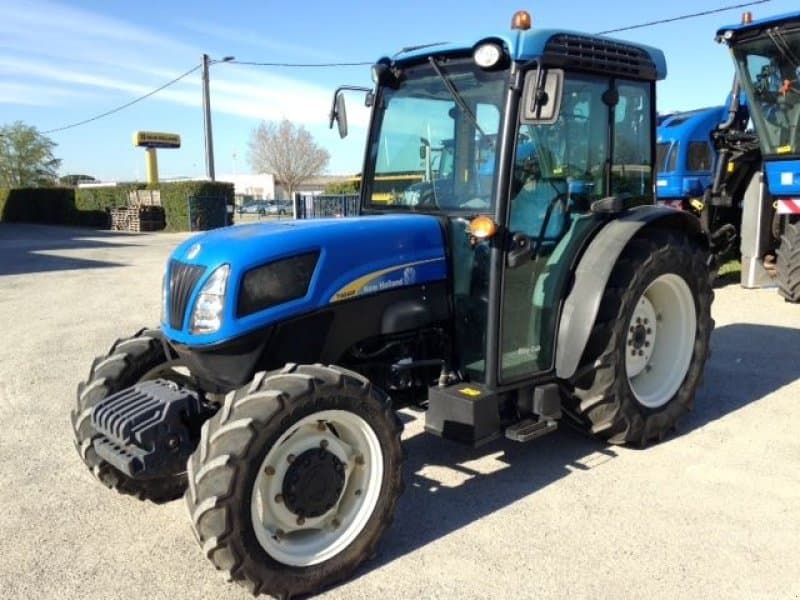

New Holland T4040F
The New Holland T4040F is a utility tractor built for versatility and power. It features a 2WD chassis with power steering, making it easy to maneuver in various farm settings. The tractor is equipped with a mechanical shuttle transmission, offering an impressive 32 forward and 16 reverse gears for precise speed control. Under the hood, the T4040F boasts a New Holland F5C engine. This 4-cylinder diesel engine is turbocharged and intercooled, providing strong performance with 87 hp at 2300 rpm. The engine displacement is average for its class at 195 cubic inches. With a rear 3-point hitch and an open center hydraulic system, this tractor is ready to handle a wide range of farm implements. The T4040F weighs 6089 lb, which is above average for its category, offering good stability. Its compact width of 58.5 inches makes it suitable for working in tight spaces or between crop rows.
ManufacturerNew HollandPower87 hpEngine4-cylTransMechanical Shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 87hp
- Operating Weight
- 6,089 lb
- Transmission
- Mechanical Shuttle
At a glance
How the T4040F compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
87 hp · 76th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The T4040F ranks at the 76th percentile for engine power among recorded utility tractors.
Overview
About the New Holland T4040F
The New Holland T4040F is a utility tractor built for versatility and power. It features a 2WD chassis with power steering, making it easy to maneuver in various farm settings. The tractor is equipped with a mechanical shuttle transmission, offering an impressive 32 forward and 16 reverse gears for precise speed control. Under the hood, the T4040F boasts a New Holland F5C engine. This 4-cylinder diesel engine is turbocharged and intercooled, providing strong performance with 87 hp at 2300 rpm. The engine displacement is average for its class at 195 cubic inches. With a rear 3-point hitch and an open center hydraulic system, this tractor is ready to handle a wide range of farm implements. The T4040F weighs 6089 lb, which is above average for its category, offering good stability. Its compact width of 58.5 inches makes it suitable for working in tight spaces or between crop rows.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | T4040F |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 6,089lb |
Engine
| Make | New Holland |
|---|---|
| Model | F5C |
| Power | 87hp |
| Cylinders | 4 |
| Displacement | 195ci |
Transmission
| Type | Mechanical Shuttle |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Width | 58.5in |
|---|---|
| Operating weight | 6,089lb |
Head to head
T4040F vs. Utility median
How the New Holland T4040F compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 87 hp | 55 hp | +58% | 76th |
| Engine Displacement | 195 ci | 183 ci | +6% | 52nd |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 6,089 lb | 5,303 lb | +15% | 58th |
| Width | 58.5 in | 66 in | -11% | 34th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland T4.90 | 87 hp | 6,989 lb | — | Compare → |
| New Holland T4040V | 87 hp | 5,108 lb | — | Compare → |
| New Holland TK90A | 87 hp | — | — | Compare → |
| New Holland TK90MA | 87 hp | — | — | Compare → |
| New Holland TS100A | 86.9 hp | 11,365 lb | 2003–2006 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
| Antonio Carraro SX 9400S | 87 hp | 4,707 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery
New Holland T4040F photos
FAQ
Common questions
What is the engine power output of the New Holland T4040F?
Rated engine output for the New Holland T4040F is 87 hp, delivered by a 4-cylinder engine. The engine displaces 195 ci.
What is the operating weight of the New Holland T4040F?
In working trim, the New Holland T4040F comes in at roughly 6,089 lb.
Which transmission does the New Holland T4040F use?
The New Holland T4040F is equipped with a Mechanical Shuttle transmission.
What hydraulics does the New Holland T4040F have?
The New Holland T4040F uses an Open Center hydraulic system.
What three-point hitch category does the New Holland T4040F use?
The New Holland T4040F has a Category 3 three-point hitch.
How do I maintain a New Holland T4040F?
Routine service for the New Holland T4040F covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
