UtilityPerformance profile
New Holland T4040V
The New Holland T4040V is a compact and versatile 2WD tractor designed for various farming tasks. It features a 4-cylinder, turbocharged diesel engine that delivers 87 horsepower at 2300 RPM. The engine, made by New Holland, has a displacement of 195 cubic inches and is liquid-cooled for better performance in tough conditions. This tractor comes with a mechanical shuttle transmission, offering 16 forward and 16 reverse gears for a total of 32 gears. This wide range of speeds allows farmers to find the right gear for any job. The T4040V has an open center hydraulic system and a steering flow of 9.2 gallons per minute, making it responsive and easy to control. With a width of 42.5 inches and an operating weight of 5108 pounds, it's well-suited for work in tight spaces or between crop rows. The engine also provides strong torque, reaching 259 lb-ft at 1250 RPM, which helps when pulling heavy loads or working in tough soil.
ManufacturerNew HollandPower87 hpEngine4-cylTransMechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 87hp
- Operating Weight
- 5,108 lb
- Transmission
- Mechanical shuttle
At a glance
How the T4040V compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
87 hp · 76th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The T4040V ranks at the 76th percentile for engine power among recorded utility tractors.
Overview
About the New Holland T4040V
The New Holland T4040V is a compact and versatile 2WD tractor designed for various farming tasks. It features a 4-cylinder, turbocharged diesel engine that delivers 87 horsepower at 2300 RPM. The engine, made by New Holland, has a displacement of 195 cubic inches and is liquid-cooled for better performance in tough conditions. This tractor comes with a mechanical shuttle transmission, offering 16 forward and 16 reverse gears for a total of 32 gears. This wide range of speeds allows farmers to find the right gear for any job. The T4040V has an open center hydraulic system and a steering flow of 9.2 gallons per minute, making it responsive and easy to control. With a width of 42.5 inches and an operating weight of 5108 pounds, it's well-suited for work in tight spaces or between crop rows. The engine also provides strong torque, reaching 259 lb-ft at 1250 RPM, which helps when pulling heavy loads or working in tough soil.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | T4040V |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 5,108lb |
Engine
| Make | New Holland |
|---|---|
| Model | F5C |
| Power | 87hp |
| Cylinders | 4 |
| Displacement | 195ci |
Transmission
| Type | Mechanical shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Width | 42.5in |
|---|---|
| Operating weight | 5,108lb |
Head to head
T4040V vs. Utility median
How the New Holland T4040V compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 87 hp | 55 hp | +58% | 76th |
| Engine Displacement | 195 ci | 183 ci | +6% | 52nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 5,108 lb | 5,303 lb | -4% | 49th |
| Width | 42.5 in | 66 in | -36% | 6th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland T4.90 | 87 hp | 6,989 lb | — | Compare → |
| New Holland T4040F | 87 hp | 6,089 lb | — | Compare → |
| New Holland TK90A | 87 hp | — | — | Compare → |
| New Holland TK90MA | 87 hp | — | — | Compare → |
| New Holland TS100A | 86.9 hp | 11,365 lb | 2003–2006 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
| Antonio Carraro SX 9400S | 87 hp | 4,707 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

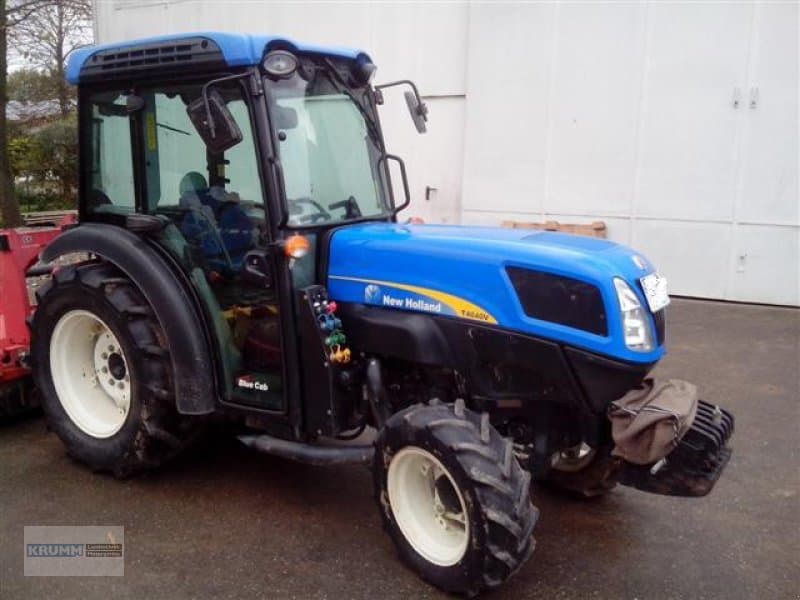

New Holland T4040V photos
FAQ
Common questions
How powerful is the New Holland T4040V?
The New Holland T4040V has an engine power output of 87 hp. It is powered by a 4-cylinder engine displacing 195 ci.
What hydraulics does the New Holland T4040V have?
The New Holland T4040V uses an Open center hydraulic system.
What is the working weight of the New Holland T4040V?
The operating weight of the New Holland T4040V is approximately 5,108 lb.
What type of transmission does the New Holland T4040V have?
The New Holland T4040V uses a Mechanical shuttle transmission offering 16 forward gears.
What routine service does the New Holland T4040V need?
Regular maintenance for the New Holland T4040V includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
