New Holland T5050
The New Holland T5050 is a utility tractor built from 2008 to 2013. It's a strong helper on the farm, with a powerful engine and useful features. The tractor has a New Holland diesel engine with 4 cylinders and 87.2 hp. This engine is turbocharged and intercooled, which means it can work hard without getting too hot. The T5050 has a rear hitch that can lift up to 5,468 lb, which is very high compared to other tractors. It has two PTO speeds: 540 rpm and 1000 rpm, making it good for different jobs. The tractor uses hydrostatic power steering, making it easy to turn. It has a flat deck platform with ROPS for safety. The transmission has 12 gears, giving the driver good control. With its open center hydraulic system and wet disc brakes, this tractor is built to work well and last long.
ManufacturerNew HollandPower87.2 hp(65.0 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionSelective gear fixed ratio
Key specifications
- Category
- Utility
- Engine power
- 87hp
- Transmission
- Selective gear fixed ratio
Category comparison
T5050 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
87.2 hp · 76th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The T5050 ranks at the 76th percentile for engine power among recorded utility tractors.
Overview
About the New Holland T5050
The New Holland T5050 is a utility tractor built from 2008 to 2013. It's a strong helper on the farm, with a powerful engine and useful features. The tractor has a New Holland diesel engine with 4 cylinders and 87.2 hp. This engine is turbocharged and intercooled, which means it can work hard without getting too hot. The T5050 has a rear hitch that can lift up to 5,468 lb, which is very high compared to other tractors. It has two PTO speeds: 540 rpm and 1000 rpm, making it good for different jobs. The tractor uses hydrostatic power steering, making it easy to turn. It has a flat deck platform with ROPS for safety. The transmission has 12 gears, giving the driver good control. With its open center hydraulic system and wet disc brakes, this tractor is built to work well and last long.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | T5050 |
| Category | Utility tractor |
| Years built | 2008–2013 |
Engine
| Make | New Holland |
|---|---|
| Power | 87.2hp(65.03 kW) |
| Cylinders | 4 |
| Displacement | 274ci(4.49 L) |
Transmission
| Type | Selective gear fixed ratio |
|---|
Chassis & drive
| Steering | Hydrostatic power |
|---|---|
| Brakes | Hydraulic wet disc |
| Cab | Flat deck platform with ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent with mechanical or electrohydraulic clutch |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Height | 100.8in(2,560 mm) |
|---|
Closest alternatives
T5050 compared with the nearest models by horsepower
The closest utility models to the New Holland T5050 by rated horsepower are the Claas Talos 230 and the Valtra A85L. The Claas Talos 230 matches it on rated power. The Valtra A85L matches it on rated power.
| Spec | New Holland T5050 | Claas Talos 230 | Valtra A85L |
|---|---|---|---|
| Engine power | 87.2 hp65 kW | 87.2 hp65 kW | 87.2 hp65 kW |
| Operating weight | - | 6,195 lb2,810 kg | 6,879 lb3,120 kg |
| Weight per hp | - | 71 lb/hp43 kg/kW | 79 lb/hp48 kg/kW |
| Displacement | 274 ci4.49 L | 195.3 ci3.2 L | 201.4 ci3.3 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | Selective gear fixed ratio | Synchromesh | Fully Synchronized |
Calculators
Calculators for the T5050
PTO power
About 72 to 78 PTO hp
Estimated from the 87.2 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 87.2 hp tractor can run
Maximum size is about a 10.5 ft rotary cutter or a 9 ft tiller. The calculator also sizes discs, plows and balers.
Units
87.2 hp is 65.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
T5050 vs. Utility median
New Holland T5050 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 87.2 hp | 55 hp | +59% | 76th |
| Engine Displacement | 274 ci | 183 ci | +50% | 79th |
| Cylinders | 4 | 4 | at median | 50th |
| Height | 101 in | 94.1 in | +7% | 67th |
| 3-Point Hitch Capacity | 5,468 lb | 3,197 lb | +71% | 77th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

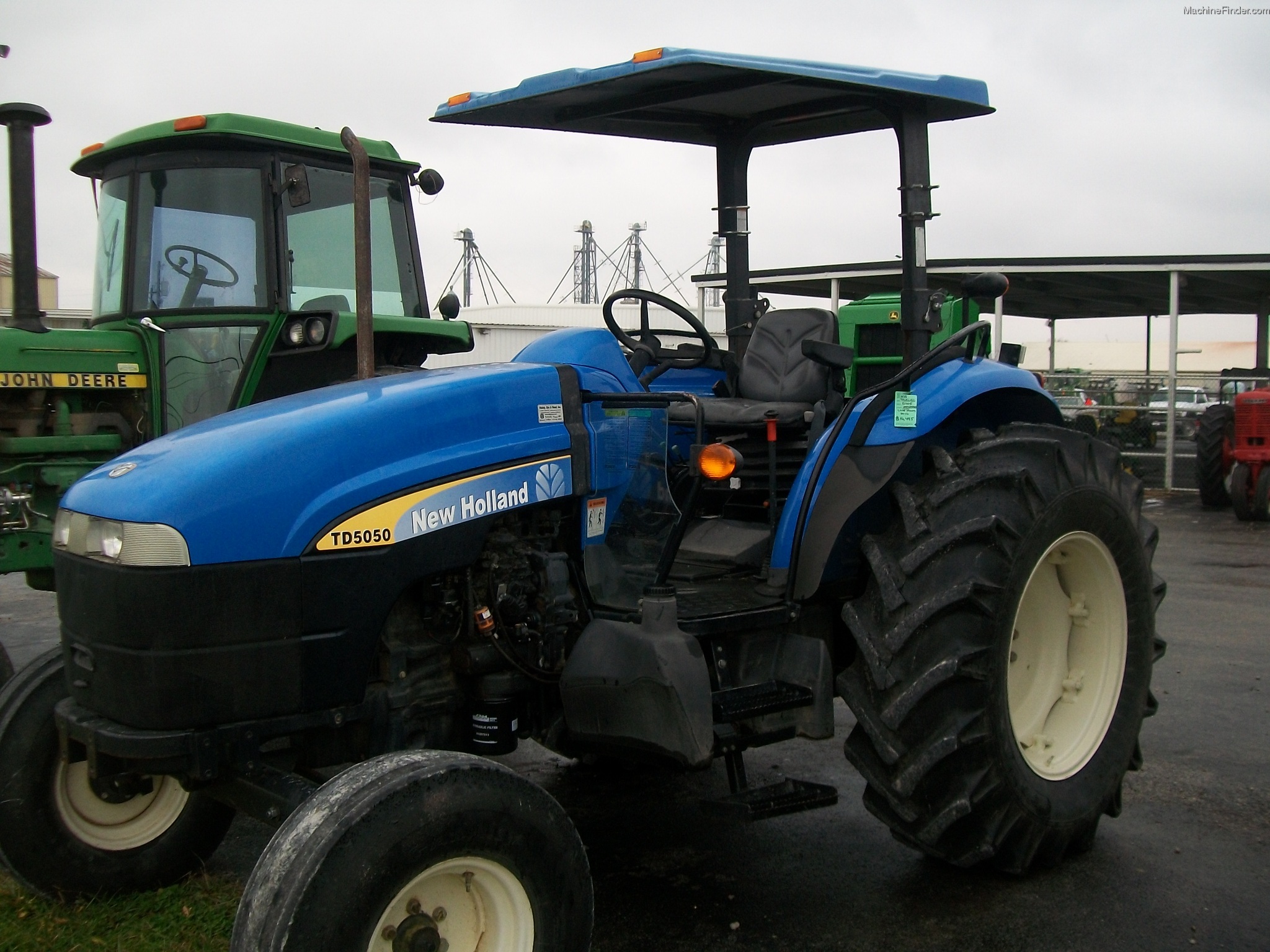

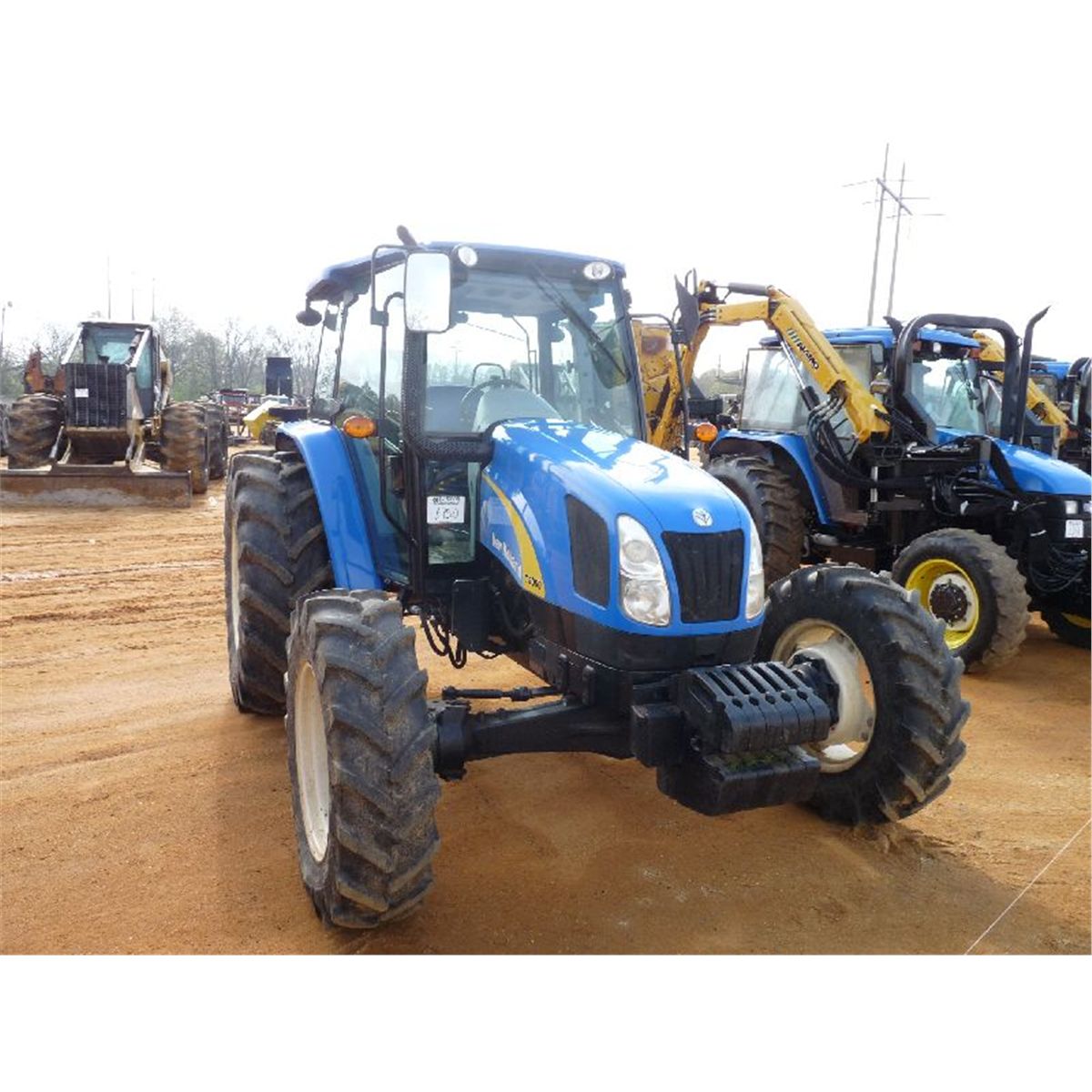

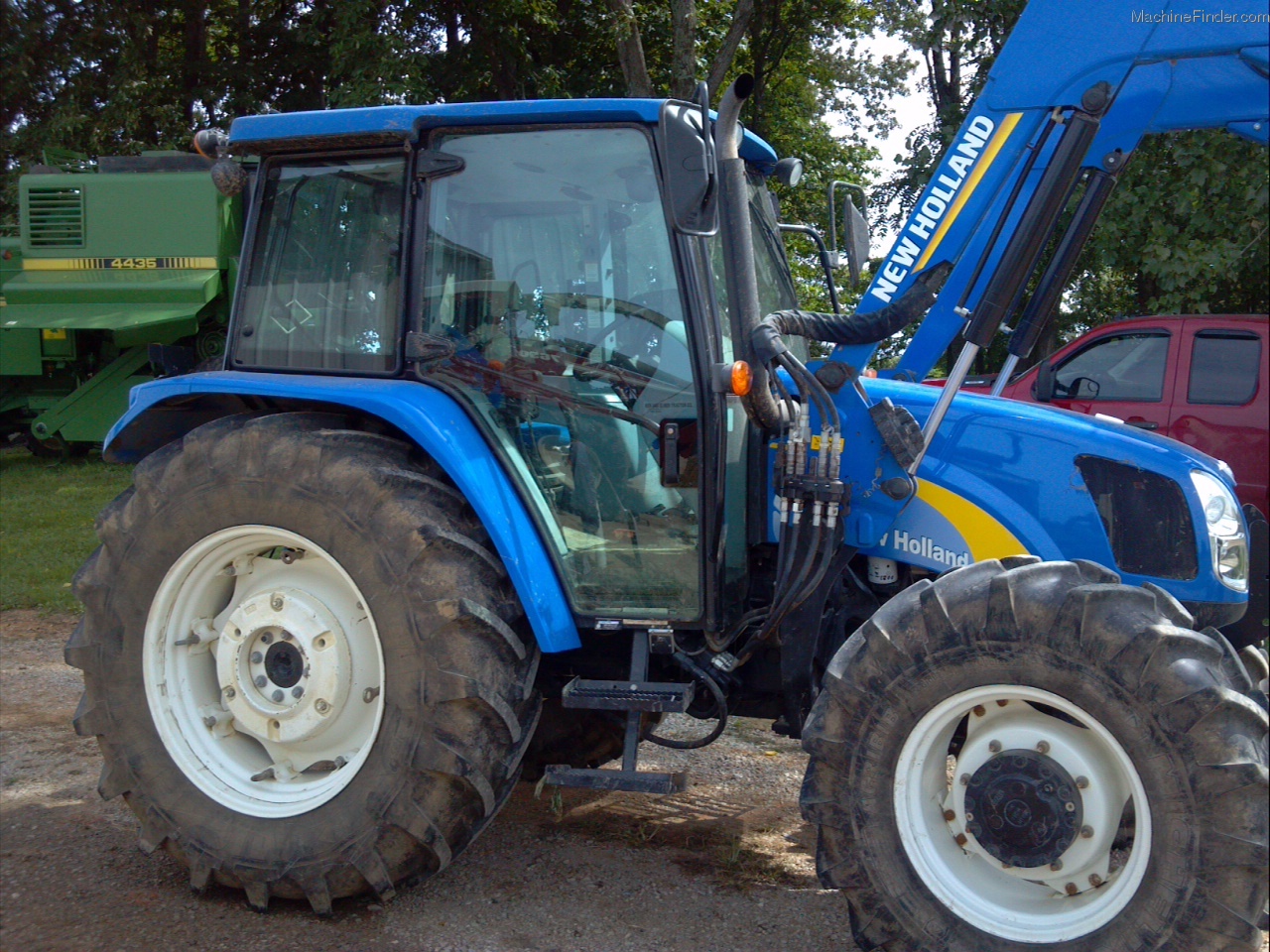

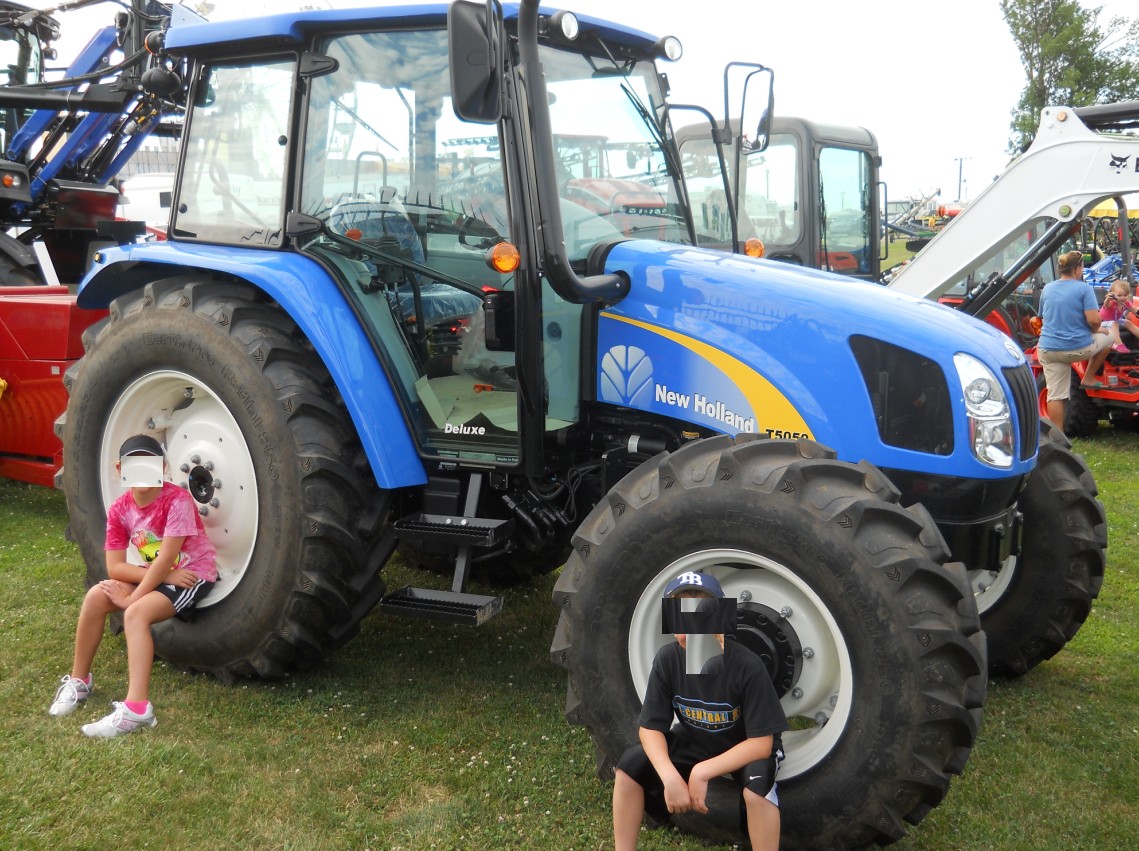

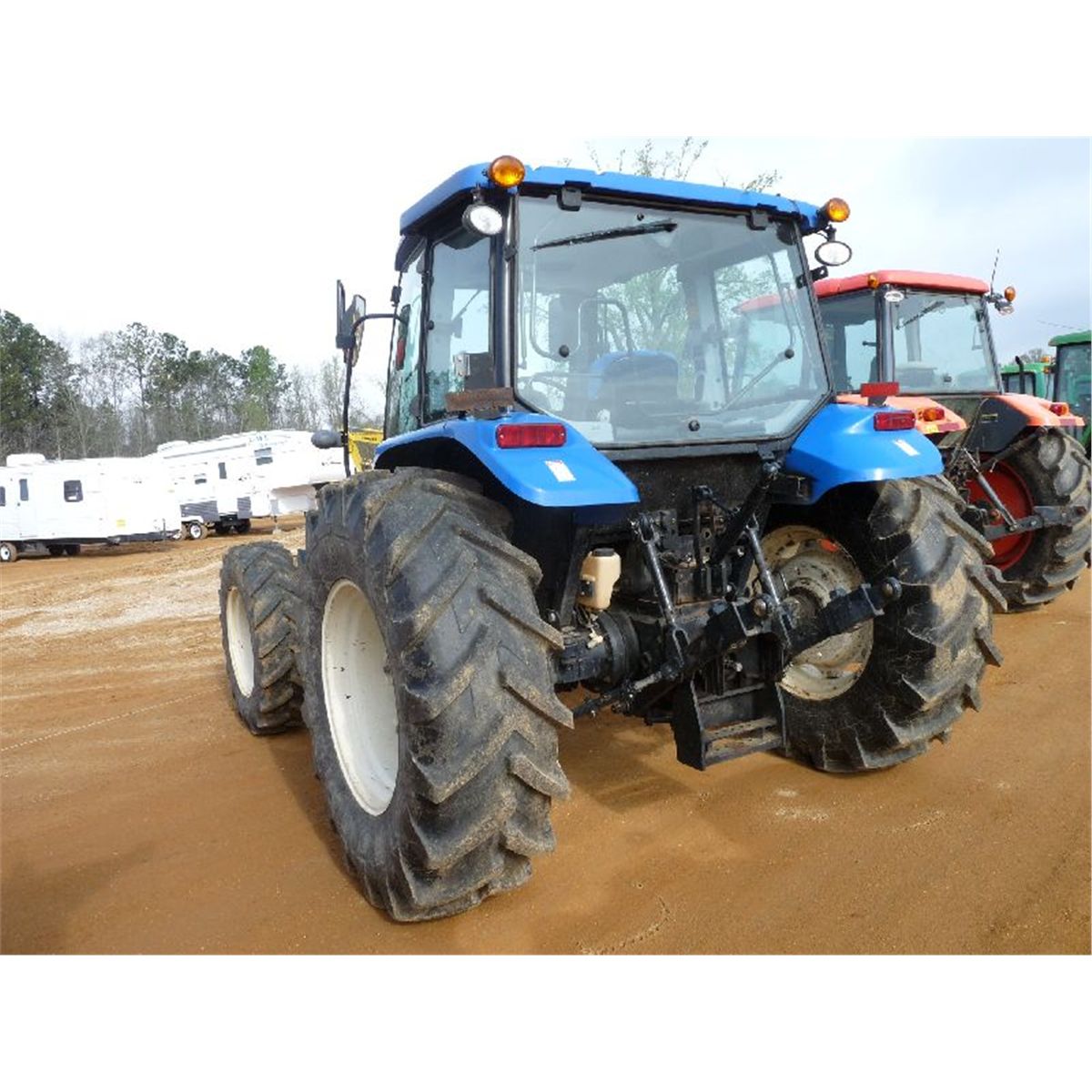

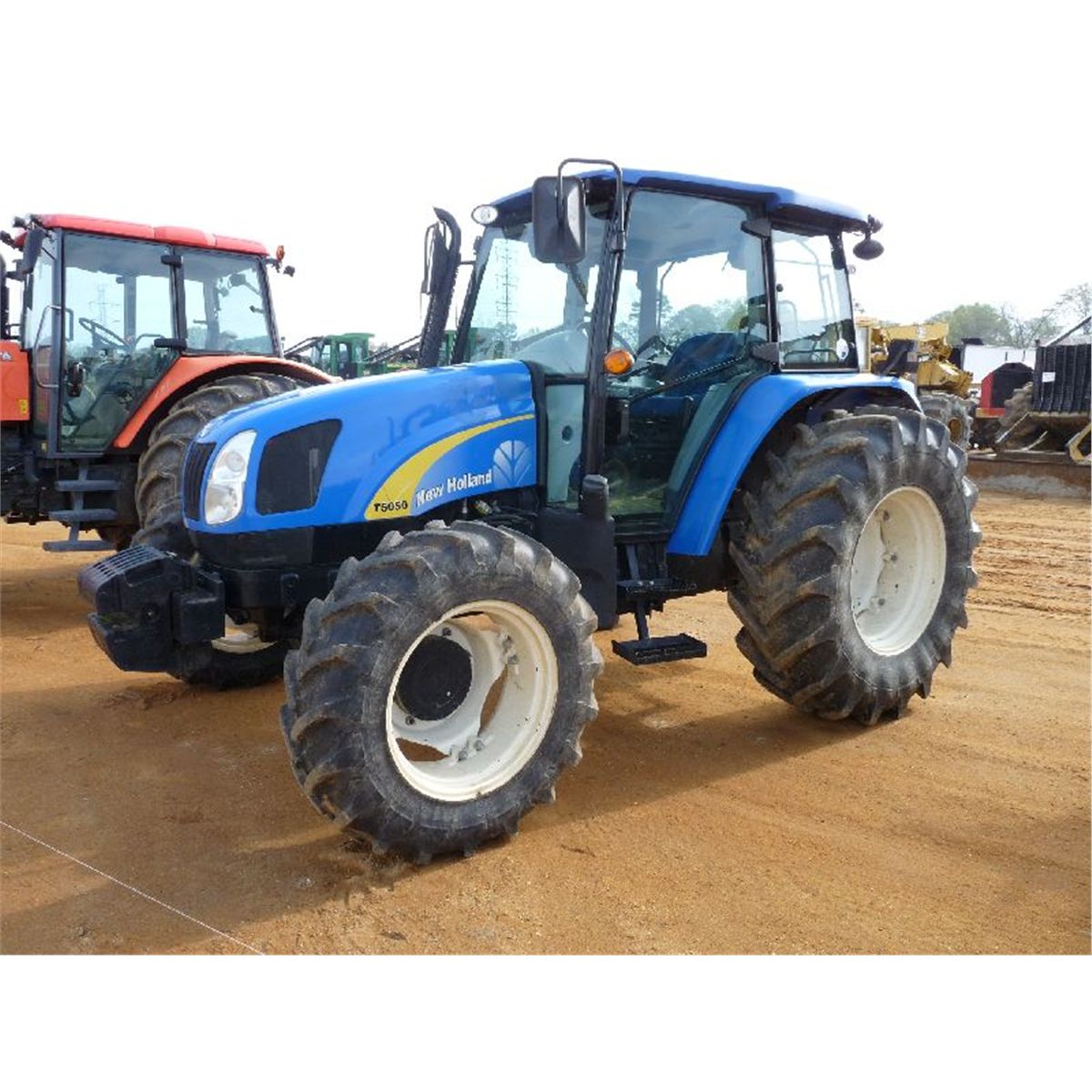

New Holland T5050 photos
FAQ
Frequently asked questions
When was the New Holland T5050 made?
The New Holland T5050 was manufactured from 2008 to 2013.
What is the engine power output of the New Holland T5050?
Rated engine output for the New Holland T5050 is 87.2 hp, delivered by a 4-cylinder engine. The engine displaces 274 ci.
Which transmission does the New Holland T5050 use?
The New Holland T5050 is equipped with a Selective gear fixed ratio transmission.
What hydraulics does the New Holland T5050 have?
The New Holland T5050 uses an Open center hydraulic system.
What three-point hitch category does the New Holland T5050 use?
The New Holland T5050 has a Category Category 3 three-point hitch rated to lift 5,468 lb.
How do I maintain a New Holland T5050?
Routine service for the New Holland T5050 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
