New Holland TD95D
The New Holland TD95D is a utility tractor that was made from 2002 to 2008. It has a 2WD drive system and a 4x2 chassis, making it good for basic farm work. The tractor is powered by an Iveco diesel engine with 4 cylinders and 90 horsepower. This engine power is above average compared to other tractors. The TD95D has a turbocharged engine that runs at 2500 RPM, which is about average for tractors. This New Holland model has a mechanical shuttle transmission with 12 gears. It uses hydrostatic power steering, making it easy to control. The tractor has a Category II rear hitch that can lift up to 5,026.6 pounds, which is very high compared to other tractors. It weighs 6,107 pounds, which is about average. The TD95D has both front and rear agricultural tires and stands 103.1 inches tall. It also has an open center hydraulic system and can be equipped with either a transmission PTO or a live PTO, depending on what the farmer needs.
ManufacturerNew HollandPower90 hpEngine4-cylTransMechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 90hp
- Operating Weight
- 6,107 lb
- Transmission
- Mechanical shuttle
At a glance
How the TD95D compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
90 hp · 78th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TD95D ranks at the 78th percentile for engine power among recorded utility tractors.
Overview
About the New Holland TD95D
The New Holland TD95D is a utility tractor that was made from 2002 to 2008. It has a 2WD drive system and a 4x2 chassis, making it good for basic farm work. The tractor is powered by an Iveco diesel engine with 4 cylinders and 90 horsepower. This engine power is above average compared to other tractors. The TD95D has a turbocharged engine that runs at 2500 RPM, which is about average for tractors. This New Holland model has a mechanical shuttle transmission with 12 gears. It uses hydrostatic power steering, making it easy to control. The tractor has a Category II rear hitch that can lift up to 5,026.6 pounds, which is very high compared to other tractors. It weighs 6,107 pounds, which is about average. The TD95D has both front and rear agricultural tires and stands 103.1 inches tall. It also has an open center hydraulic system and can be equipped with either a transmission PTO or a live PTO, depending on what the farmer needs.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | TD95D |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 2002–2008 |
| Operating weight | 6,107lb |
Engine
| Make | Iveco |
|---|---|
| Model | 8045.25 |
| Power | 90hp |
| Cylinders | 4 |
| Displacement | 238ci |
| Bore | 4.09in |
| Stroke | 4.53in |
Transmission
| Type | Mechanical shuttle |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Optional Transmission or Live PTO |
|---|
Dimensions
| Height | 103.1in |
|---|---|
| Operating weight | 6,107lb |
Head to head
TD95D vs. Utility median
How the New Holland TD95D compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 90 hp | 55 hp | +64% | 78th |
| Engine Displacement | 238 ci | 183 ci | +30% | 65th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 6,107 lb | 5,303 lb | +15% | 58th |
| Height | 103 in | 94.1 in | +10% | 73rd |
| 3-Point Hitch Capacity | 5,027 lb | 3,197 lb | +57% | 75th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|

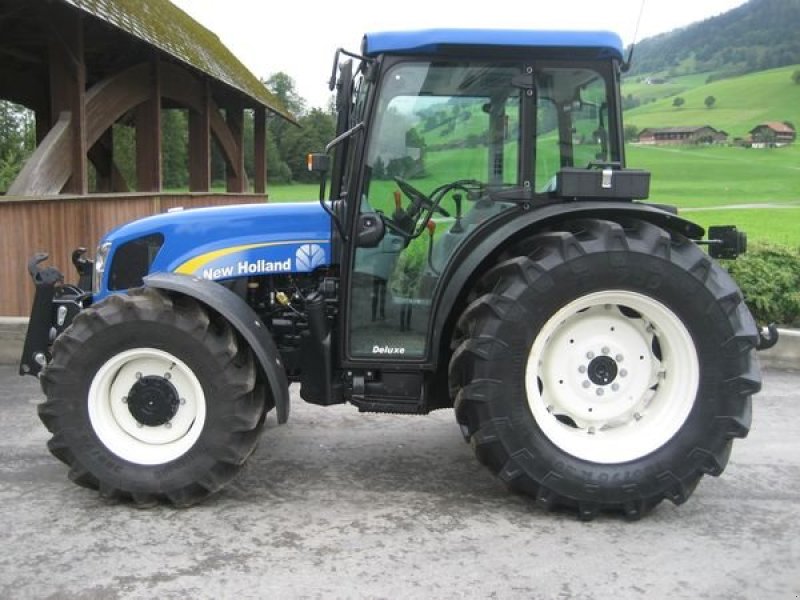

| New Holland T4050 | 90 hp | 7,320 lb | — | Compare → |
| New Holland T5.90 | 90 hp | — | — | Compare → |
| New Holland TD5050HC High-Clearance | 90 hp | 7,888 lb | — | Compare → |
| New Holland TD95D High-Clearance | 90 hp | — | — | Compare → |
| New Holland TL5050 | 90 hp | 7,022 lb | 2007–2011 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 6080 | 93 hp | 6,500 lb | 1980–1985 | Compare → |
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery
New Holland TD95D photos
FAQ
Common questions
When was the New Holland TD95D made?
The New Holland TD95D was manufactured from 2002 to 2008.
What hydraulics does the New Holland TD95D have?
The New Holland TD95D uses an Open Center hydraulic system.
What three-point hitch category does the New Holland TD95D use?
The New Holland TD95D has a Category II three-point hitch rated to lift 5,026.6 lb.
What is the engine power output of the New Holland TD95D?
Rated engine output for the New Holland TD95D is 90 hp, delivered by a 4-cylinder engine. The engine displaces 238 ci.
What is the operating weight of the New Holland TD95D?
In working trim, the New Holland TD95D comes in at roughly 6,107 lb.
Which transmission does the New Holland TD95D use?
The New Holland TD95D is equipped with a Mechanical shuttle transmission.
How do I maintain a New Holland TD95D?
Routine service for the New Holland TD95D covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
