Four-Wheel Drive tractorsSpec sheet
New Holland TJ530
The New Holland TJ530 is a powerful 4-wheel drive tractor built for big jobs. It has a strong Cummins engine with 530 horsepower, which is very high for a tractor. This engine has 6 cylinders and uses diesel fuel. The tractor has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver lots of options. This tractor is big and heavy, weighing 54,000 pounds. It's about 25 feet long and 12.5 feet tall. The TJ530 has large agricultural tires on both the front and back, each 42 inches tall. It uses a hydrostatic power steering system, making it easier to control despite its size. The tractor was made in 2006 and 2007, so it's not the newest model but still has many modern features. It has a closed center hydraulic system and an optional hitch for attaching equipment.
ManufacturerNew HollandPower530 hp(395.2 kW)Class300+ HP tractors →Engine6-cylinderTransmissionFull power shift
Key specifications
- Category
- Four-Wheel Drive
- Engine power
- 530hp
- Operating weight
- 54,000 lb
- Transmission
- Full power shift
Category comparison
TJ530 compared with its category
vs. Four-Wheel Drive medianDistribution
Engine Power (hp)
All recorded Four-Wheel Drive tractors
530 hp · 81st
This model
84
Median 375 hp
549
This modelFour-Wheel Drive tractorsMediann = 162
The TJ530 ranks at the 81st percentile for engine power among recorded four-wheel drive tractors.
Overview
About the New Holland TJ530
The New Holland TJ530 is a powerful 4-wheel drive tractor built for big jobs. It has a strong Cummins engine with 530 horsepower, which is very high for a tractor. This engine has 6 cylinders and uses diesel fuel. The tractor has a full power shift transmission with 16 forward gears and 2 reverse gears, giving the driver lots of options. This tractor is big and heavy, weighing 54,000 pounds. It's about 25 feet long and 12.5 feet tall. The TJ530 has large agricultural tires on both the front and back, each 42 inches tall. It uses a hydrostatic power steering system, making it easier to control despite its size. The tractor was made in 2006 and 2007, so it's not the newest model but still has many modern features. It has a closed center hydraulic system and an optional hitch for attaching equipment.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | TJ530 |
| Category | Four-Wheel Drive tractor |
| Type | 4x4 articulated 4WD |
| Years built | 2006–2007 |
| Operating weight | 54,000lb(24,490 kg) |
Engine
| Make | Cummins |
|---|---|
| Model | QSX15 |
| Power | 530hp(395.2 kW) |
| Cylinders | 6 |
| Displacement | 912ci(14.95 L) |
| Bore | 5.39in(137 mm) |
| Stroke | 6.65in(169 mm) |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Closed center load sensing (CCLS) |
|---|
Dimensions
| Length | 298in(7,569 mm) |
|---|---|
| Height | 150in(3,810 mm) |
| Operating weight | 54,000lb(24,490 kg) |
Capacities
| Cooling system | 21.1gal(79.87 L) |
|---|
Closest alternatives
TJ530 compared with the nearest models by horsepower
Among four-wheel drive tractors, the CaseIH STX530 and the John Deere 9R 540 are closest to the New Holland TJ530 in rated horsepower. The CaseIH STX530 matches it on rated power at almost the same operating weight. The John Deere 9R 540 makes 2.4 hp more and weighs 8,020 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the TJ530 has the highest weight per horsepower at 102 lb per hp.
| Spec | New Holland TJ530 | CaseIH STX530 | John Deere 9R 540 |
|---|---|---|---|
| Engine power | 530 hp395.2 kW | 530 hp395.2 kW | 532.4 hp397 kW |
| Operating weight | 54,000 lb24,494 kg | 54,000 lb24,494 kg | 45,980 lb20,856 kg |
| Weight per hp | 102 lb/hp62 kg/kW | 102 lb/hp62 kg/kW | 86 lb/hp53 kg/kW |
| Displacement | 912 ci14.95 L | 912 ci14.95 L | 826.9 ci13.55 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Full power shift | Full power shift | Full power shift |
| Drive | 4WD | 4WD | - |
Calculators
Calculators for the TJ530
PTO power
About 440 to 477 PTO hp
Estimated from the 530 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 530 hp tractor can run
Maximum size is about a 63 ft rotary cutter or a 54 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
118 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
530 hp is 395.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
TJ530 vs. Four-Wheel Drive median
New Holland TJ530 compared with other Four-Wheel Drive tractors
| Spec | This model | Four-Wheel Drive median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 530 hp | 375 hp | +41% | 81st |
| Engine Displacement | 912 ci | 826 ci | +10% | 78th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 54,000 lb | 37,428 lb | +44% | 93rd |
| Length | 298 in | 275 in | +8% | 74th |
| Height | 150 in | 143 in | +5% | 76th |
Medians and percentiles are calculated from the four-wheel drive tractors in the database that have a recorded value for each specification (sample size 98–162 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

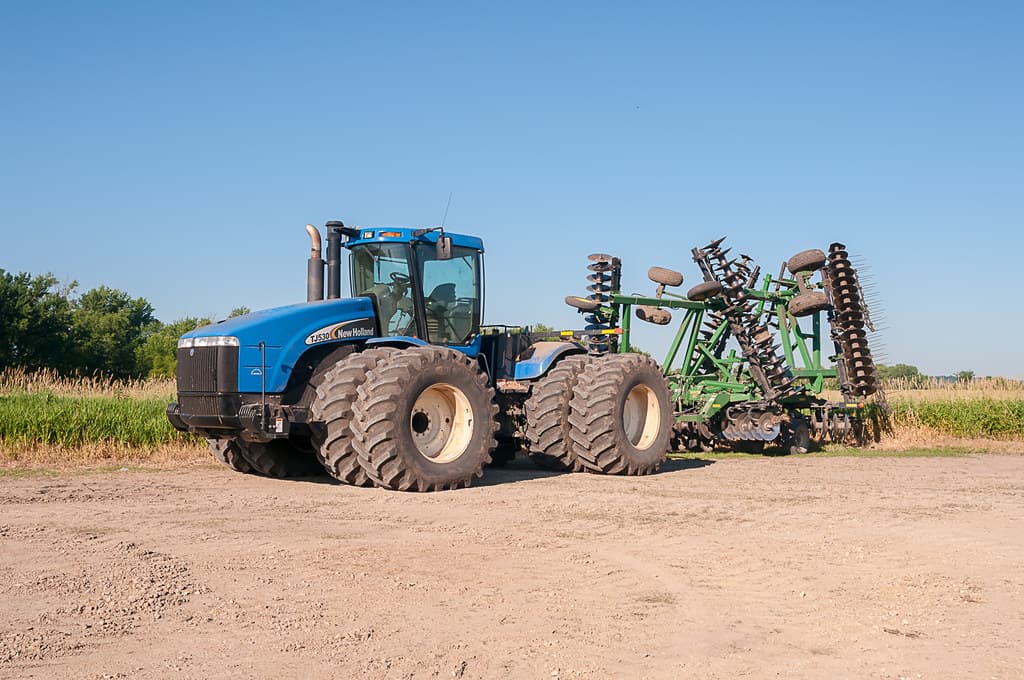

New Holland TJ530 photos
FAQ
Frequently asked questions
When was the New Holland TJ530 in production?
New Holland TJ530 production started in 2006 and ended in 2007.
What transmission is in the New Holland TJ530?
Transmission on the New Holland TJ530 is Full power shift, with 16 forward speeds.
What hydraulics does the New Holland TJ530 have?
The New Holland TJ530 uses a Closed center load sensing (CCLS) hydraulic system.
How much horsepower does the New Holland TJ530 have?
The New Holland TJ530 produces 530 hp from its 6-cylinder engine. Engine displacement is 912 ci.
How much does the New Holland TJ530 weigh?
The New Holland TJ530 weighs about 54,000 lb in operating condition.
What maintenance does the New Holland TJ530 require?
The New Holland TJ530 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
