SAME Dorado 100
The SAME Dorado 100 is a powerful 4WD tractor built for tough farm work. It has a strong diesel engine made by SAME with 4 cylinders and a turbocharger. This engine can produce 90 hp at 2200 rpm, which is plenty of power for most farming tasks. The tractor has a 16-speed forward and 8-speed reverse transmission, giving the driver lots of options for different jobs. This tractor is well-sized for many farms, measuring 121.65 inches long and 90.55 inches tall. It's not too heavy at 5446 lb, making it easier on the soil. The Dorado 100 has big 420/70R24 rear tires that help it grip the ground well. It also has a strong Category III hitch, which means it can handle many types of farm equipment. The wheelbase is 81.10 inches, helping the tractor stay stable during work. Overall, the SAME Dorado 100 is a solid choice for farmers who need a reliable, mid-sized tractor for everyday use.
Key specifications
- Category
- Utility
- Engine power
- 90hp
- Operating weight
- 5,446 lb
Category comparison
Dorado 100 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
90 hp · 78th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Dorado 100 ranks at the 78th percentile for engine power among recorded utility tractors.
Overview
About the SAME Dorado 100
The SAME Dorado 100 is a powerful 4WD tractor built for tough farm work. It has a strong diesel engine made by SAME with 4 cylinders and a turbocharger. This engine can produce 90 hp at 2200 rpm, which is plenty of power for most farming tasks. The tractor has a 16-speed forward and 8-speed reverse transmission, giving the driver lots of options for different jobs. This tractor is well-sized for many farms, measuring 121.65 inches long and 90.55 inches tall. It's not too heavy at 5446 lb, making it easier on the soil. The Dorado 100 has big 420/70R24 rear tires that help it grip the ground well. It also has a strong Category III hitch, which means it can handle many types of farm equipment. The wheelbase is 81.10 inches, helping the tractor stay stable during work. Overall, the SAME Dorado 100 is a solid choice for farmers who need a reliable, mid-sized tractor for everyday use.
Full specifications
Recorded specifications
General
| Manufacturer | SAME |
|---|---|
| Model | Dorado 100 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 5,446lb(2,470 kg) |
Engine
| Make | SAME |
|---|---|
| Power | 90hp(67.11 kW) |
| Cylinders | 4 |
| Displacement | 244.08ci(4 L) |
Transmission
| Forward gears | 16 |
|---|---|
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 121.65in(3,090 mm) |
|---|---|
| Height | 90.55in(2,300 mm) |
| Operating weight | 5,446lb(2,470 kg) |
Tires
| Rear | 420/70R24Convert |
|---|
Closest alternatives
Dorado 100 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the Dorado 100 are the SAME Explorer 90 and the SAME Panther 90. The SAME Explorer 90 matches it on rated power and weighs 2,120 lb more, at 84 lb per horsepower against 61 lb. The SAME Panther 90 matches it on rated power and weighs 2,710 lb more, so it carries more weight per horsepower, which helps traction in draft work. Of the 3 models, the Dorado 100 has the lowest weight per horsepower at 61 lb per hp.
| Spec | SAME Dorado 100 | SAME Explorer 90 | SAME Panther 90 |
|---|---|---|---|
| Engine power | 90 hp67.1 kW | 90 hp67.1 kW | 90 hp67.1 kW |
| Operating weight | 5,446 lb2,470 kg | 7,563 lb3,431 kg | 8,158 lb3,700 kg |
| Weight per hp | 61 lb/hp37 kg/kW | 84 lb/hp51 kg/kW | 91 lb/hp55 kg/kW |
| Displacement | 244.1 ci4 L | 244.1 ci4 L | 276 ci4.52 L |
| Cylinders | 4 | 4 | 5 |
| Drive | 4WD | 2WD | 2WD |
Calculators
Calculators for the Dorado 100
PTO power
About 75 to 81 PTO hp
Estimated from the 90 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 90 hp tractor can run
Maximum size is about a 10.5 ft rotary cutter or a 9 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
70 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
90 hp is 67.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Tires
Convert the 420/70R24 tire size
The calculator gives diameter, rolling circumference and the metric or inch equivalent.
Category medians
Dorado 100 vs. Utility median
SAME Dorado 100 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 90 hp | 55 hp | +64% | 78th |
| Engine Displacement | 244 ci | 183 ci | +33% | 68th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 5,446 lb | 5,303 lb | +3% | 51st |
| Length | 122 in | 137 in | -11% | 30th |
| Height | 90.6 in | 94.1 in | -4% | 41st |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other SAME models
Other manufacturers
Models with similar horsepower
Gallery

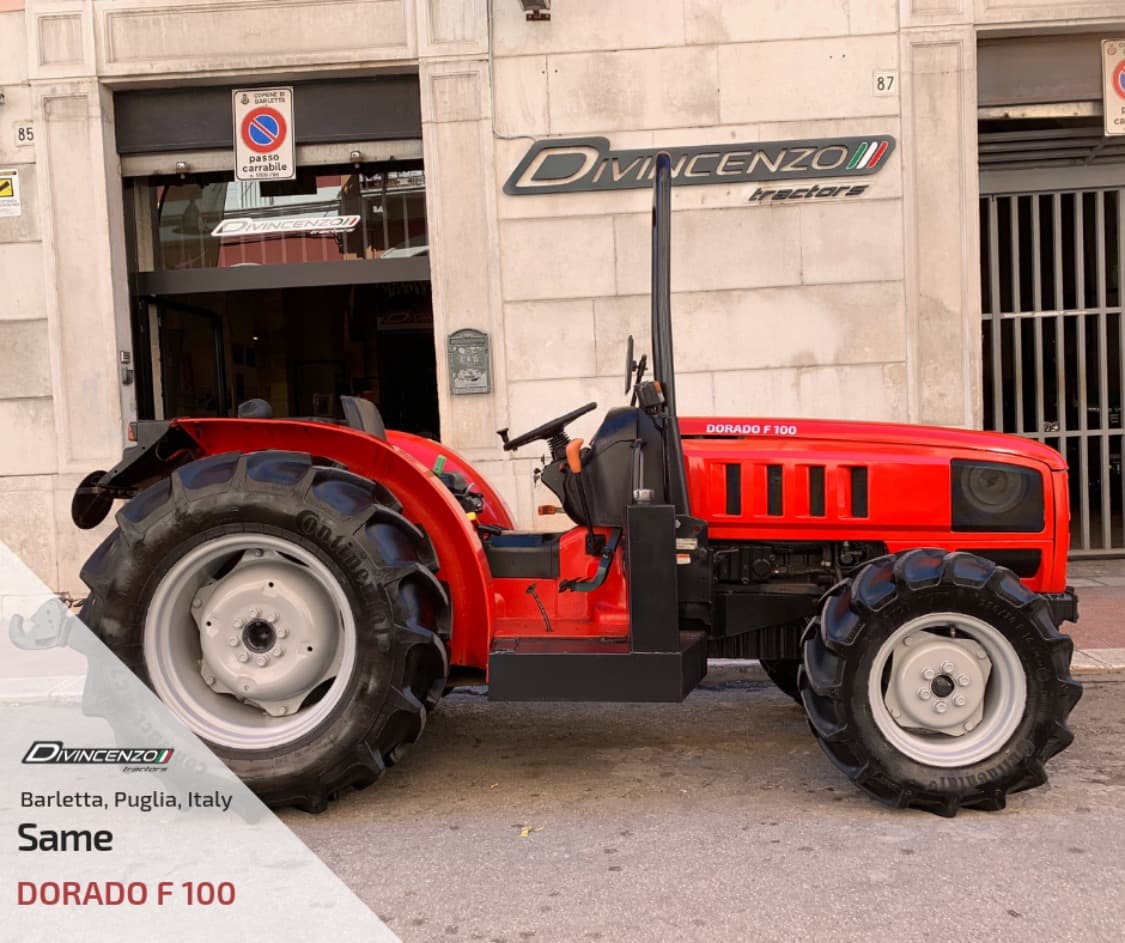

SAME Dorado 100 photos
FAQ
Frequently asked questions
How much horsepower does the SAME Dorado 100 have?
The SAME Dorado 100 produces 90 hp from its 4-cylinder engine. Engine displacement is 244.08 ci.
How much does the SAME Dorado 100 weigh?
The SAME Dorado 100 weighs about 5,446 lb in operating condition.
What are the factory tire sizes for the SAME Dorado 100?
The SAME Dorado 100 comes with 420/70R24 rear tires.
What three-point hitch category does the SAME Dorado 100 use?
The SAME Dorado 100 has a Category III three-point hitch.
What maintenance does the SAME Dorado 100 require?
The SAME Dorado 100 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
