SAME Explorer 90
The SAME Explorer 90 is a utility tractor built for hard work on the farm. It has a 2WD drive system and power steering, making it easy to handle. The tractor comes with a 20-speed transmission for both forward and reverse gears, giving farmers lots of options for different tasks. Under the hood, the Explorer 90 has a strong air-cooled diesel engine made by SAME. This 4-cylinder engine is turbocharged and puts out 90 hp, which is above average for its class. It has a displacement of 244.1 ci, which is also above average. The engine runs at 2500 rpm, which is about average for tractors like this. Weighing 7563 lb, it's a solid machine that can handle tough jobs. The tractor is 157.1 inches long and 96.1 inches tall, with ag tires on both front and back. It has a category II hitch, making it compatible with many farm tools.

Key specifications
- Category
- Utility
- Engine power
- 90hp
- Operating weight
- 7,563 lb
Category comparison
Explorer 90 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
This model
The Explorer 90 ranks at the 78th percentile for engine power among recorded utility tractors.
Overview
About the SAME Explorer 90
The SAME Explorer 90 is a utility tractor built for hard work on the farm. It has a 2WD drive system and power steering, making it easy to handle. The tractor comes with a 20-speed transmission for both forward and reverse gears, giving farmers lots of options for different tasks. Under the hood, the Explorer 90 has a strong air-cooled diesel engine made by SAME. This 4-cylinder engine is turbocharged and puts out 90 hp, which is above average for its class. It has a displacement of 244.1 ci, which is also above average. The engine runs at 2500 rpm, which is about average for tractors like this. Weighing 7563 lb, it's a solid machine that can handle tough jobs. The tractor is 157.1 inches long and 96.1 inches tall, with ag tires on both front and back. It has a category II hitch, making it compatible with many farm tools.
Full specifications
Recorded specifications
General
| Manufacturer | SAME |
|---|---|
| Model | Explorer 90 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 7,563lb(3,431 kg) |
Engine
| Make | SAME |
|---|---|
| Model | 1000 4-AT |
| Power | 90hp(67.11 kW) |
| Cylinders | 4 |
| Displacement | 244.1ci(4 L) |
| Bore | 4.13in(104.9 mm) |
| Stroke | 4.55in(115.6 mm) |
Transmission
| Forward gears | 20 |
|---|---|
| Reverse gears | 20 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 157.1in(3,990 mm) |
|---|---|
| Height | 96.1in(2,441 mm) |
| Operating weight | 7,563lb(3,431 kg) |
Closest alternatives
Explorer 90 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the Explorer 90 are the SAME Dorado 100 and the SAME Panther 90. The SAME Dorado 100 matches it on rated power and weighs 2,120 lb less, carrying 61 lb per horsepower against 84 lb. The SAME Panther 90 matches it on rated power and weighs 600 lb more.
| Spec | SAME Explorer 90 | SAME Dorado 100 | SAME Panther 90 |
|---|---|---|---|
| Engine power | 90 hp67.1 kW | 90 hp67.1 kW | 90 hp67.1 kW |
| Operating weight | 7,563 lb3,431 kg | 5,446 lb2,470 kg | 8,158 lb3,700 kg |
| Weight per hp | 84 lb/hp51 kg/kW | 61 lb/hp37 kg/kW | 91 lb/hp55 kg/kW |
| Displacement | 244.1 ci4 L | 244.1 ci4 L | 276 ci4.52 L |
| Cylinders | 4 | 4 | 5 |
| Drive | 2WD | 4WD | 2WD |
Calculators
Calculators for the Explorer 90
PTO power
About 75 to 81 PTO hp
Estimated from the 90 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 90 hp tractor can run
Maximum size is about a 10.5 ft rotary cutter or a 9 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
98 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
90 hp is 67.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the SAME Explorer 90
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the SAME 1000 4-ATAmazon
Fits the SAME 1000 4-AT 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the SAME 1000 4-ATAmazon
Fits the SAME 1000 4-AT 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the SAME 1000 4-ATAmazon
Fits the SAME 1000 4-AT 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the SAME 1000 4-ATAmazon
Fits the SAME 1000 4-AT 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- SAME Explorer 90 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- SAME Explorer 90 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- SAME Explorer 90 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
Explorer 90 vs. Utility median
SAME Explorer 90 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 90 hp | 55 hp | +64% | 78th |
| Engine Displacement | 244 ci | 183 ci | +33% | 69th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 20 | 12 | +67% | 86th |
| Operating Weight | 7,563 lb | 5,303 lb | +43% | 72nd |
| Length | 157 in | 137 in | +15% | 74th |
| Height | 96.1 in | 94.1 in | +2% | 55th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other SAME models
Other manufacturers
Models with similar horsepower
Gallery

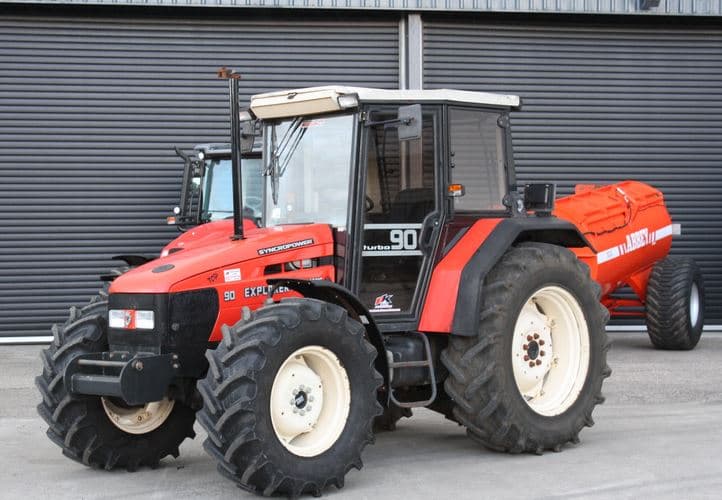

SAME Explorer 90 photos




FAQ
Frequently asked questions
What is the engine power output of the SAME Explorer 90?
Rated engine output for the SAME Explorer 90 is 90 hp, delivered by a 4-cylinder engine. The engine displaces 244.1 ci.
What is the operating weight of the SAME Explorer 90?
The SAME Explorer 90 has an operating weight of about 7,563 lb.
What three-point hitch category does the SAME Explorer 90 use?
The SAME Explorer 90 has a Category II three-point hitch.
How do I maintain a SAME Explorer 90?
Routine service for the SAME Explorer 90 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
