AgriculturalPerformance profile

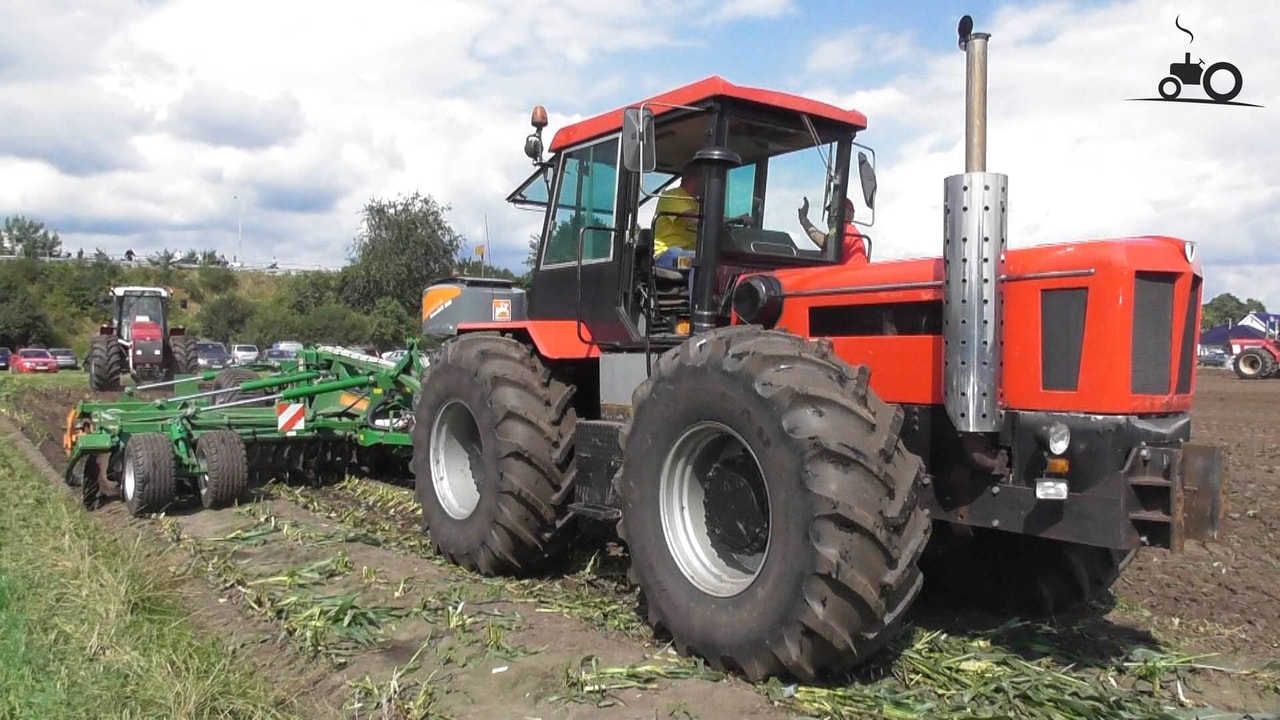

Schluter Super 3000 TVL
The Schluter Super 3000 TVL is a powerful 4-wheel drive tractor built for tough farm work. It has a strong MAN diesel engine with 6 cylinders and 280 horsepower. This engine is turbocharged, which means it can work hard even in challenging conditions. The tractor has a manual transmission with 18 forward gears and 6 reverse gears, giving the driver lots of control. This tractor is big and sturdy. It's 239.4 inches long and 128.3 inches tall, weighing 21,168 pounds. It has large agricultural tires, with 18.4-34 tires in front and 20.8-42 tires in the back. These big tires help the tractor move well in fields. The Super 3000 TVL also has hydrostatic power steering, making it easier to turn and control despite its size. With its strong engine and durable build, this Schluter tractor is ready for heavy-duty farm tasks.
ManufacturerSchluterPower280 hpEngine6-cylTransManual
Quick specs
- Category
- Agricultural
- Engine Power Output
- 280hp
- Operating Weight
- 21,168 lb
- Transmission
- Manual
At a glance
How the Super 3000 TVL compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
280 hp · 92nd
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The Super 3000 TVL ranks at the 92nd percentile for engine power among recorded agricultural tractors.
Overview
About the Schluter Super 3000 TVL
The Schluter Super 3000 TVL is a powerful 4-wheel drive tractor built for tough farm work. It has a strong MAN diesel engine with 6 cylinders and 280 horsepower. This engine is turbocharged, which means it can work hard even in challenging conditions. The tractor has a manual transmission with 18 forward gears and 6 reverse gears, giving the driver lots of control. This tractor is big and sturdy. It's 239.4 inches long and 128.3 inches tall, weighing 21,168 pounds. It has large agricultural tires, with 18.4-34 tires in front and 20.8-42 tires in the back. These big tires help the tractor move well in fields. The Super 3000 TVL also has hydrostatic power steering, making it easier to turn and control despite its size. With its strong engine and durable build, this Schluter tractor is ready for heavy-duty farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Schluter |
|---|---|
| Model | Super 3000 TVL |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 21,168lb |
Engine
| Make | MAN |
|---|---|
| Model | D 2566 MTE |
| Power | 280hp |
| Cylinders | 6 |
| Displacement | 696.4ci |
| Bore | 4.92in |
| Stroke | 6.1in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 18 |
| Reverse gears | 6 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Dimensions
| Length | 239.4in |
|---|---|
| Height | 128.3in |
| Operating weight | 21,168lb |
Tires
| Front | 18.4-34 |
|---|---|
| Rear | 20.8-42 |
Head to head
Super 3000 TVL vs. Agricultural median
How the Schluter Super 3000 TVL compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 280 hp | 110 hp | +155% | 92nd |
| Engine Displacement | 696 ci | 336 ci | +108% | 95th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 18 | 16 | +13% | 68th |
| Operating Weight | 21,168 lb | 10,914 lb | +94% | 87th |
| Length | 239 in | 173 in | +39% | 94th |
| Height | 128 in | 111 in | +16% | 88th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Schluter tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Schluter Super 2500 VL | 240 hp | 20,947 lb | — | Compare → |
| Schluter Super-Trac 2200 LS | 210 hp | 19,161 lb | — | Compare → |
| Schluter Super 2000 TVL Special | 200 hp | 16,537 lb | — | Compare → |
| Schluter Super 2000LS | 200 hp | 15,214 lb | — | Compare → |
| Schluter Super-Trac 2000 TVL | 200 hp | 19,183 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 9150 | 280 hp | 23,000 lb | — | Compare → |
| AGCO DT240A | 290 hp | 19,951 lb | 2005–2008 | Compare → |
| AGCO DT250B | 290 hp | 25,960 lb | 2009–2010 | Compare → |
| Baldwin DM300 | 290 hp | — | — | Compare → |
| AGCO DT225B | 266.3 hp | 25,795 lb | 2009–2010 | Compare → |
Explore
Schluter siblings
Explore
Similar-spec models
Gallery
Schluter Super 3000 TVL photos
FAQ
Common questions
How much horsepower does the Schluter Super 3000 TVL have?
The Schluter Super 3000 TVL produces 280 hp from its 6-cylinder engine. Engine displacement is 696.4 ci.
How much does the Schluter Super 3000 TVL weigh?
The Schluter Super 3000 TVL weighs about 21,168 lb in operating condition.
What transmission is in the Schluter Super 3000 TVL?
Transmission on the Schluter Super 3000 TVL is Manual, with 18 forward speeds.
What size tires does the Schluter Super 3000 TVL use?
Factory rubber for the Schluter Super 3000 TVL is 18.4-34 front tires and 20.8-42 rear tires.
What maintenance does the Schluter Super 3000 TVL require?
Like any tractor, the Schluter Super 3000 TVL needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
