Shibaura SE4000
The Shibaura SE4000 is a utility tractor designed for various farm tasks. It has a 2WD drive system and a gear transmission with 12 forward and 4 reverse gears. The tractor is powered by a Shibaura LEP854A diesel engine with 4 cylinders and natural aspiration. This engine produces 40 hp at 2500 rpm, which is average for its class. The engine's displacement is 130.2 ci, which is below average compared to similar tractors. The SE4000 has a compact design, measuring 131.5 inches long, 59.8 inches wide, and 61.8 inches high to the steering wheel. It weighs 3075 lb, making it lighter than many other utility tractors. The tractor features agricultural tires, with 6-16 size in front and 12.4-28 size in the rear. It has a Category I rear hitch and an open center hydraulic system. The operator station is open, and the tractor uses a 12-volt electrical system with an electric starter. One notable feature is its engine torque of 89.7 lb-ft at 2000 rpm, which helps with tough pulling jobs.
ManufacturerShibauraPower40 hpEngine4-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 40hp
- Operating Weight
- 3,075 lb
- Transmission
- Gear
At a glance
How the SE4000 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
40 hp · 33rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The SE4000 ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the Shibaura SE4000
The Shibaura SE4000 is a utility tractor designed for various farm tasks. It has a 2WD drive system and a gear transmission with 12 forward and 4 reverse gears. The tractor is powered by a Shibaura LEP854A diesel engine with 4 cylinders and natural aspiration. This engine produces 40 hp at 2500 rpm, which is average for its class. The engine's displacement is 130.2 ci, which is below average compared to similar tractors. The SE4000 has a compact design, measuring 131.5 inches long, 59.8 inches wide, and 61.8 inches high to the steering wheel. It weighs 3075 lb, making it lighter than many other utility tractors. The tractor features agricultural tires, with 6-16 size in front and 12.4-28 size in the rear. It has a Category I rear hitch and an open center hydraulic system. The operator station is open, and the tractor uses a 12-volt electrical system with an electric starter. One notable feature is its engine torque of 89.7 lb-ft at 2000 rpm, which helps with tough pulling jobs.
Full specifications
Every recorded spec
General
| Manufacturer | Shibaura |
|---|---|
| Model | SE4000 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 3,075lb |
Engine
| Make | Shibaura |
|---|---|
| Model | LEP854A |
| Power | 40hp |
| Cylinders | 4 |
| Displacement | 130.2ci |
| Bore | 3.35in |
| Stroke | 3.7in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Cab | Open |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 131.5in |
|---|---|
| Width | 59.8in |
| Height | 61.8in |
| Operating weight | 3,075lb |
Tires
| Front | 16-Jun |
|---|---|
| Rear | 12.4-28 |
Head to head
SE4000 vs. Utility median
How the Shibaura SE4000 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 130 ci | 183 ci | -29% | 31st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,075 lb | 5,303 lb | -42% | 24th |
| Length | 132 in | 137 in | -4% | 43rd |
| Width | 59.8 in | 66 in | -9% | 36th |
| Height | 61.8 in | 94.1 in | -34% | 11th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Shibaura tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Shibaura SE4040 | 40 hp | 3,075 lb | — | Compare → |
| Shibaura ST440 | 40 hp | 3,219 lb | — | Compare → |
| Shibaura SD4000 | 38.9 hp | 3,377 lb | — | Compare → |
| Shibaura SD4340 | 43 hp | 3,600 lb | — | Compare → |
| Shibaura S445 | 45 hp | 3,516 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
Shibaura siblings
Explore
Similar-spec models
Gallery

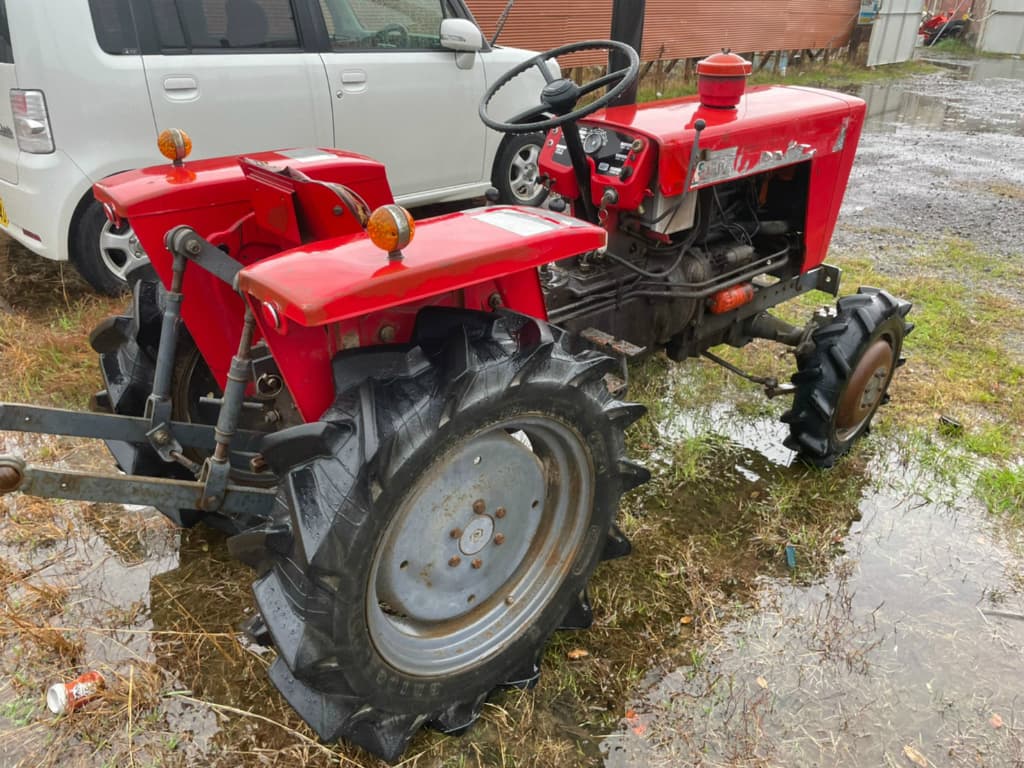

Shibaura SE4000 photos
FAQ
Common questions
How powerful is the Shibaura SE4000?
The Shibaura SE4000 has an engine power output of 40 hp. It is powered by a 4-cylinder engine displacing 130.2 ci.
What hydraulics does the Shibaura SE4000 have?
The Shibaura SE4000 uses an Open center hydraulic system.
What are the factory tire sizes for the Shibaura SE4000?
The Shibaura SE4000 comes with 16-Jun front tires and 12.4-28 rear tires.
What is the working weight of the Shibaura SE4000?
The operating weight of the Shibaura SE4000 is approximately 3,075 lb.
What type of transmission does the Shibaura SE4000 have?
The Shibaura SE4000 uses a Gear transmission offering 12 forward gears.
What routine service does the Shibaura SE4000 need?
Regular maintenance for the Shibaura SE4000 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
