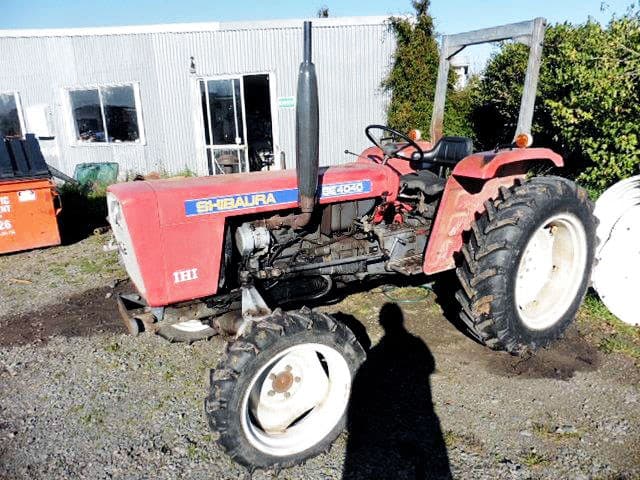

Shibaura SE4040
The Shibaura SE4040 is a utility tractor built for farmers who need a reliable machine. It has a 4-wheel drive system, which helps it work well in tough conditions. The tractor uses a gear transmission with 12 forward speeds and 4 reverse speeds, giving drivers good control. Under the hood, the SE4040 has a Shibaura diesel engine with 4 cylinders. This engine produces 40 horsepower, which is about average for tractors of this size. It's cooled by liquid and breathes in air naturally, without extra help. The tractor weighs 3,075 pounds and is 131.5 inches long, 59.8 inches wide, and 61.8 inches tall at the steering wheel. It has big agricultural tires, with larger ones at the back for better traction. The tractor also has a Category I hitch at the rear for attaching tools and equipment.
ManufacturerShibauraPower40 hpEngine4-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 40hp
- Operating Weight
- 3,075 lb
- Transmission
- Gear
At a glance
How the SE4040 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
40 hp · 33rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The SE4040 ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the Shibaura SE4040
The Shibaura SE4040 is a utility tractor built for farmers who need a reliable machine. It has a 4-wheel drive system, which helps it work well in tough conditions. The tractor uses a gear transmission with 12 forward speeds and 4 reverse speeds, giving drivers good control. Under the hood, the SE4040 has a Shibaura diesel engine with 4 cylinders. This engine produces 40 horsepower, which is about average for tractors of this size. It's cooled by liquid and breathes in air naturally, without extra help. The tractor weighs 3,075 pounds and is 131.5 inches long, 59.8 inches wide, and 61.8 inches tall at the steering wheel. It has big agricultural tires, with larger ones at the back for better traction. The tractor also has a Category I hitch at the rear for attaching tools and equipment.
Full specifications
Every recorded spec
General
| Manufacturer | Shibaura |
|---|---|
| Model | SE4040 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,075lb |
Engine
| Make | Shibaura |
|---|---|
| Model | LEP854A |
| Power | 40hp |
| Cylinders | 4 |
| Displacement | 130.2ci |
| Bore | 3.35in |
| Stroke | 3.7in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 131.5in |
|---|---|
| Width | 59.8in |
| Height | 61.8in |
| Operating weight | 3,075lb |
Tires
| Front | 8.00x18 |
|---|---|
| Rear | 12.4x28 |
Head to head
SE4040 vs. Utility median
How the Shibaura SE4040 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 130 ci | 183 ci | -29% | 31st |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,075 lb | 5,303 lb | -42% | 24th |
| Length | 132 in | 137 in | -4% | 43rd |
| Width | 59.8 in | 66 in | -9% | 36th |
| Height | 61.8 in | 94.1 in | -34% | 11th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Shibaura tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Shibaura SE4000 | 40 hp | 3,075 lb | — | Compare → |
| Shibaura ST440 | 40 hp | 3,219 lb | — | Compare → |
| Shibaura SD4000 | 38.9 hp | 3,377 lb | — | Compare → |
| Shibaura SD4340 | 43 hp | 3,600 lb | — | Compare → |
| Shibaura S445 | 45 hp | 3,516 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
Shibaura siblings
Explore
Similar-spec models
Gallery
Shibaura SE4040 photos
FAQ
Common questions
How much horsepower does the Shibaura SE4040 have?
The Shibaura SE4040 produces 40 hp from its 4-cylinder engine. Engine displacement is 130.2 ci.
What three-point hitch category does the Shibaura SE4040 use?
The Shibaura SE4040 has a Category I three-point hitch.
How much does the Shibaura SE4040 weigh?
The Shibaura SE4040 weighs about 3,075 lb in operating condition.
What transmission is in the Shibaura SE4040?
Transmission on the Shibaura SE4040 is Gear, with 12 forward speeds.
What hydraulics does the Shibaura SE4040 have?
The Shibaura SE4040 uses an Open center hydraulic system.
What are the factory tire sizes for the Shibaura SE4040?
The Shibaura SE4040 comes with 8.00x18 front tires and 12.4x28 rear tires.
What maintenance does the Shibaura SE4040 require?
Like any tractor, the Shibaura SE4040 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
