Utility tractorsSpec sheet
Shibaura SU1341
The Shibaura SU1341 is a compact utility tractor built for small farms and landscaping jobs. It has a 4-wheel drive system, which helps it work well on different types of ground. The tractor is powered by a Shibaura LEK 752C diesel engine with two cylinders. This engine is liquid-cooled, which helps it stay at the right temperature while working. This tractor is small but strong. It's 82 inches long, 38 inches wide, and 68 inches tall. It weighs 1,417 pounds, which is light compared to many other tractors. The engine can produce 13 horsepower, which is enough for light tasks. It has a very high rated engine speed of 2,600 rpm, but its engine size is smaller than most tractors. The SU1341 has a Category 3 hitch, which lets it connect to different tools and equipment.
Key specifications
- Category
- Utility
- Engine power
- 13hp
- Operating weight
- 1,417 lb
Category comparison
SU1341 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
13 hp · 1st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The SU1341 ranks at the 1st percentile for engine power among recorded utility tractors.
Overview
About the Shibaura SU1341
The Shibaura SU1341 is a compact utility tractor built for small farms and landscaping jobs. It has a 4-wheel drive system, which helps it work well on different types of ground. The tractor is powered by a Shibaura LEK 752C diesel engine with two cylinders. This engine is liquid-cooled, which helps it stay at the right temperature while working. This tractor is small but strong. It's 82 inches long, 38 inches wide, and 68 inches tall. It weighs 1,417 pounds, which is light compared to many other tractors. The engine can produce 13 horsepower, which is enough for light tasks. It has a very high rated engine speed of 2,600 rpm, but its engine size is smaller than most tractors. The SU1341 has a Category 3 hitch, which lets it connect to different tools and equipment.
Full specifications
Recorded specifications
General
| Manufacturer | Shibaura |
|---|---|
| Model | SU1341 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 1,417lb(642.7 kg) |
Engine
| Make | Shibaura |
|---|---|
| Model | LEK 752C |
| Power | 13hp(9.69 kW) |
| Cylinders | 2 |
| Displacement | 43.1ci(0.71 L) |
| Bore | 2.95in(74.93 mm) |
| Stroke | 3.15in(80.01 mm) |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 82in(2,083 mm) |
|---|---|
| Width | 38in(965.2 mm) |
| Height | 68in(1,727 mm) |
| Operating weight | 1,417lb(642.7 kg) |
Closest alternatives
SU1341 compared with the nearest models by horsepower
The closest utility models to the Shibaura SU1341 by rated horsepower are the Shibaura Ford 1100 and the Shibaura SE1340. The Shibaura Ford 1100 matches it on rated power and weighs 190 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Shibaura SE1340 matches it on rated power and weighs 300 lb less, carrying 86 lb per horsepower against 109 lb. Of the 3 models, the SU1341 has the highest weight per horsepower at 109 lb per hp.
| Spec | Shibaura SU1341 | Shibaura Ford 1100 | Shibaura SE1340 |
|---|---|---|---|
| Engine power | 13 hp9.7 kW | 13 hp9.7 kW | 13 hp9.7 kW |
| Operating weight | 1,417 lb643 kg | 1,231 lb558 kg | 1,122 lb509 kg |
| Weight per hp | 109 lb/hp66 kg/kW | 95 lb/hp58 kg/kW | 86 lb/hp52 kg/kW |
| Displacement | 43.1 ci0.71 L | 43.1 ci0.71 L | 43.1 ci0.71 L |
| Cylinders | 2 | 2 | 2 |
| Transmission | - | Gear shift | Gear |
| Drive | 4WD | 2WD | 2WD |
Calculators
Calculators for the SU1341
PTO power
About 11 to 12 PTO hp
Estimated from the 13 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 13 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
127 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
13 hp is 9.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
SU1341 vs. Utility median
Shibaura SU1341 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 13 hp | 55 hp | -76% | 1st |
| Engine Displacement | 43.1 ci | 183 ci | -76% | 1st |
| Cylinders | 2 | 4 | -50% | 3rd |
| Operating Weight | 1,417 lb | 5,303 lb | -73% | 4th |
| Length | 82 in | 137 in | -40% | 3rd |
| Width | 38 in | 66 in | -42% | 2nd |
| Height | 68 in | 94.1 in | -28% | 14th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Shibaura models
Other manufacturers
Models with similar horsepower
Gallery

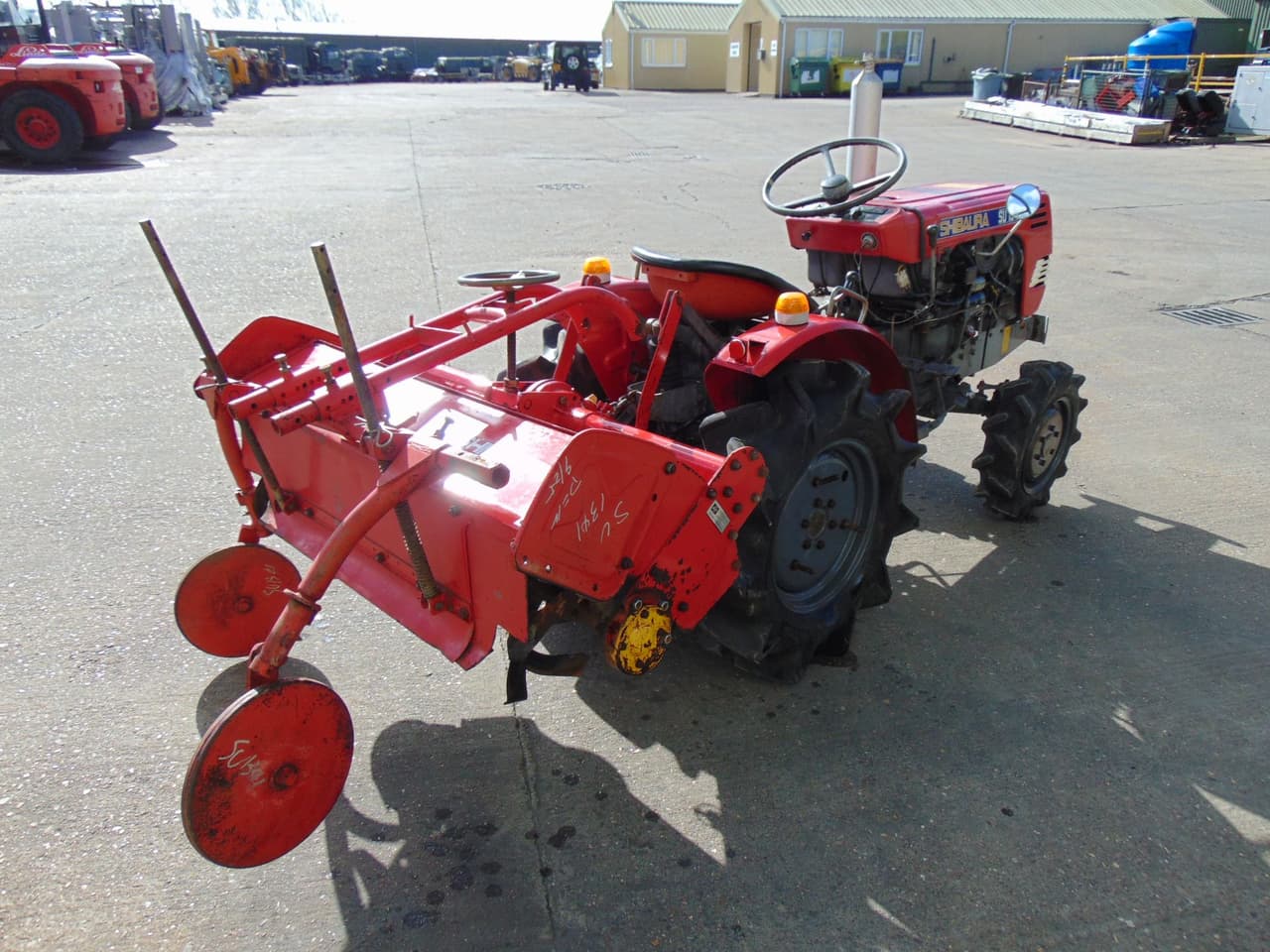

Shibaura SU1341 photos
FAQ
Frequently asked questions
How powerful is the Shibaura SU1341?
The Shibaura SU1341 has an engine power output of 13 hp. It is powered by a 2-cylinder engine displacing 43.1 ci.
What hitch category is the Shibaura SU1341?
The Shibaura SU1341 uses a Category Category 3 hitch.
What is the working weight of the Shibaura SU1341?
The operating weight of the Shibaura SU1341 is approximately 1,417 lb.
What routine service does the Shibaura SU1341 need?
Regular maintenance for the Shibaura SU1341 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
