Brand siblingUtilityPerformance profile

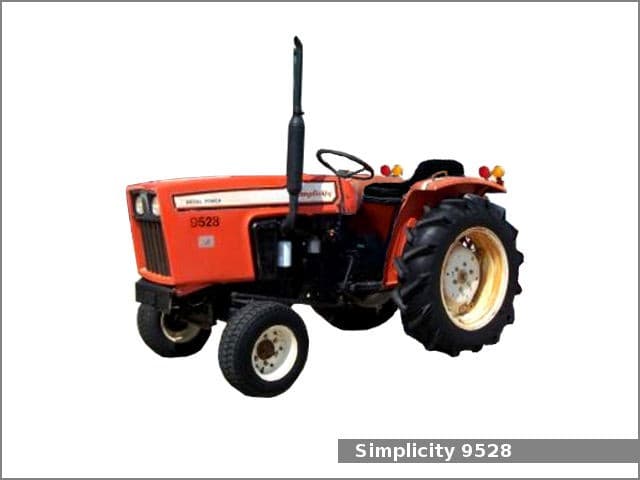

Simplicity 9528
The Simplicity 9528 is a utility tractor made from 1978 to 1983. It's a compact machine, measuring 100.4 inches long, 53.5 inches wide, and 81.9 inches tall. This tractor has a 2WD drive system and weighs 2100 pounds, which is lighter than many other tractors. The 9528 is powered by a Toyosha S148 diesel engine with two cylinders. It has 28 horsepower and runs at 2500 rpm, which is above average speed for tractors. The engine size is 90.1 cubic inches, which is smaller than most. It has a sliding gear transmission with 8 forward gears and 2 reverse gears. The tractor has a three-point hitch at the back and a rear PTO that spins at 540 rpm. It comes with an open operator station, but you can add a rollover protection structure if you want. The tractor also has agricultural tires and mechanical steering.
ManufacturerSimplicityPower28 hpEngine2-cylTransSliding gear
Quick specs
- Category
- Utility
- Engine Power Output
- 28hp
- Operating Weight
- 2,100 lb
- Transmission
- Sliding gear
At a glance
How the 9528 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
28 hp · 20th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 9528 ranks at the 20th percentile for engine power among recorded utility tractors.
Overview
About the Simplicity 9528
The Simplicity 9528 is a utility tractor made from 1978 to 1983. It's a compact machine, measuring 100.4 inches long, 53.5 inches wide, and 81.9 inches tall. This tractor has a 2WD drive system and weighs 2100 pounds, which is lighter than many other tractors. The 9528 is powered by a Toyosha S148 diesel engine with two cylinders. It has 28 horsepower and runs at 2500 rpm, which is above average speed for tractors. The engine size is 90.1 cubic inches, which is smaller than most. It has a sliding gear transmission with 8 forward gears and 2 reverse gears. The tractor has a three-point hitch at the back and a rear PTO that spins at 540 rpm. It comes with an open operator station, but you can add a rollover protection structure if you want. The tractor also has agricultural tires and mechanical steering.
Full specifications
Every recorded spec
General
| Manufacturer | Simplicity |
|---|---|
| Model | 9528 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1978–1983 |
| Operating weight | 2,100lb |
Engine
| Make | Toyosha |
|---|---|
| Model | S148 |
| Power | 28hp |
| Cylinders | 2 |
| Displacement | 90.1ci |
| Bore | 3.82in |
| Stroke | 3.94in |
Transmission
| Type | Sliding gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Mechanical |
| Brakes | Differential mechanical drum and shoe |
| Cab | Open with Optional ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Rear, continuous |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 100.4in |
|---|---|
| Width | 53.5in |
| Height | 81.9in |
| Operating weight | 2,100lb |
Capacities
| Cooling system | 1.33gal |
|---|
Head to head
9528 vs. Utility median
How the Simplicity 9528 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 28 hp | 55 hp | -49% | 20th |
| Engine Displacement | 90.1 ci | 183 ci | -51% | 16th |
| Cylinders | 2 | 4 | -50% | 3rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 2,100 lb | 5,303 lb | -60% | 13th |
| Length | 100 in | 137 in | -27% | 9th |
| Width | 53.5 in | 66 in | -19% | 23rd |
| Height | 81.9 in | 94.1 in | -13% | 29th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Simplicity tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Simplicity 9518 | 18 hp | 1,278 lb | — | Compare → |
| Simplicity Legacy XL 27 | 27 hp | 829 lb | 2004–2015 | Compare → |
| Simplicity Legacy XL 27D | 27 hp | 979 lb | 2004–2015 | Compare → |
| Simplicity Legacy XL 27LC | 27 hp | 880 lb | 2004–2016 | Compare → |
| Simplicity Legacy 25 | 25 hp | 800 lb | 1998–2003 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST28A | 28.4 hp | 2,400 lb | — | Compare → |
| AGCO ST30x | 28.4 hp | 1,984 lb | — | Compare → |
| Allis Chalmers D272 | 27.5 hp | 2,060 lb | — | Compare → |
| Ascot Universal 300 | 27.5 hp | 3,800 lb | — | Compare → |
| Allis Chalmers D10 | 28.57 hp | 2,700 lb | 1959–1967 | Compare → |
Explore
Simplicity siblings
Explore
Similar-spec models
Gallery
Simplicity 9528 photos
FAQ
Common questions
What years was the Simplicity 9528 manufactured?
Production of the Simplicity 9528 ran from 1978 through 1983.
What is the working weight of the Simplicity 9528?
The operating weight of the Simplicity 9528 is approximately 2,100 lb.
What type of transmission does the Simplicity 9528 have?
The Simplicity 9528 uses a Sliding gear transmission offering 8 forward gears.
What hydraulics does the Simplicity 9528 have?
The Simplicity 9528 uses an Open center hydraulic system.
What three-point hitch category does the Simplicity 9528 use?
The Simplicity 9528 has a Category I three-point hitch.
How powerful is the Simplicity 9528?
The Simplicity 9528 has an engine power output of 28 hp. It is powered by a 2-cylinder engine displacing 90.1 ci.
What routine service does the Simplicity 9528 need?
Regular maintenance for the Simplicity 9528 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
