Lawn and Garden tractorsSpec sheet
Toro LX500
The Toro LX500 is a lawn and garden tractor made from 2006 to 2007. It's great for taking care of your yard. This tractor has a 2WD drive system and uses a mechanical CVT transmission, which means it can go forward and backward smoothly without changing gears. The LX500 is powered by a Kohler Courage SV720 engine. This engine is air-cooled and runs on gasoline. It has 2 cylinders and can produce 23 hp, which is pretty strong for a lawn tractor. The engine size is above average compared to other tractors like it. The tractor has an independent PTO with an electric clutch, making it easy to use attachments. It also has an open operator station and an electric starter for easy use. The LX500 is 68 inches long, 53.9 inches wide, and 42.9 inches tall. It weighs 525 pounds, which is lighter than many other tractors.
ManufacturerToroPower23 hp(17.2 kW)ClassUnder 25 HP tractors →Engine2-cylinderTransmissionMechanical CVT
Key specifications
- Category
- Lawn and Garden
- Engine power
- 23hp
- Operating weight
- 525 lb
- Transmission
- Mechanical CVT
Category comparison
LX500 compared with its category
vs. Lawn and Garden medianDistribution
Engine Power (hp)
All recorded Lawn and Garden tractors
23 hp · 76th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The LX500 ranks at the 76th percentile for engine power among recorded lawn and garden tractors.
Overview
About the Toro LX500
The Toro LX500 is a lawn and garden tractor made from 2006 to 2007. It's great for taking care of your yard. This tractor has a 2WD drive system and uses a mechanical CVT transmission, which means it can go forward and backward smoothly without changing gears. The LX500 is powered by a Kohler Courage SV720 engine. This engine is air-cooled and runs on gasoline. It has 2 cylinders and can produce 23 hp, which is pretty strong for a lawn tractor. The engine size is above average compared to other tractors like it. The tractor has an independent PTO with an electric clutch, making it easy to use attachments. It also has an open operator station and an electric starter for easy use. The LX500 is 68 inches long, 53.9 inches wide, and 42.9 inches tall. It weighs 525 pounds, which is lighter than many other tractors.
Full specifications
Recorded specifications
General
| Manufacturer | Toro |
|---|---|
| Model | LX500 |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 2006–2007 |
| Operating weight | 525lb(238.1 kg) |
Engine
| Make | Kohler |
|---|---|
| Model | Courage SV720 |
| Power | 23hp(17.15 kW) |
| Cylinders | 2 |
| Displacement | 44.2ci(0.72 L) |
| Bore | 3.27in(83.06 mm) |
| Stroke | 2.64in(67.06 mm) |
Transmission
| Type | Mechanical CVT |
|---|
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Brakes | Dry disc |
| Cab | Open |
Power take-off
| Rear PTO | Independent with electric clutch |
|---|
Dimensions
| Length | 68in(1,727 mm) |
|---|---|
| Width | 53.9in(1,369 mm) |
| Height | 42.9in(1,090 mm) |
| Operating weight | 525lb(238.1 kg) |
Closest alternatives
LX500 compared with the nearest models by horsepower
Among lawn and garden tractors, the Cub Cadet XT2 LX46 FAB and the Cub Cadet XT2 LX50 are closest to the Toro LX500 in rated horsepower. The Cub Cadet XT2 LX46 FAB matches it on rated power and weighs 90 lb less, carrying 19 lb per horsepower against 23 lb. It entered production in 2015, 9 years after the LX500. The Cub Cadet XT2 LX50 matches it on rated power at almost the same operating weight. It entered production in 2015, 9 years after the LX500. Of the 3 models, the LX500 has the highest weight per horsepower at 23 lb per hp.
| Spec | Toro LX500 | Cub Cadet XT2 LX46 FAB | Cub Cadet XT2 LX50 |
|---|---|---|---|
| Engine power | 23 hp17.2 kW | 23 hp17.2 kW | 23 hp17.2 kW |
| Operating weight | 525 lb238 kg | 438 lb199 kg | 498 lb226 kg |
| Weight per hp | 23 lb/hp14 kg/kW | 19 lb/hp12 kg/kW | 22 lb/hp13 kg/kW |
| Displacement | 44.2 ci0.72 L | 44.3 ci0.73 L | 44.3 ci0.73 L |
| Cylinders | 2 | 2 | 2 |
| Transmission | Mechanical CVT | Belt-driven Hydrostatic | Belt-driven hydrostatic |
| Drive | 2WD | 2WD | 2WD |
| Years built | 2006-2007 | 2015+ | 2015+ |
Calculators
Calculators for the LX500
PTO power
About 19 to 21 PTO hp
Estimated from the 23 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 23 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
27 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
23 hp is 17.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the Toro LX500
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Kohler Courage SV720Amazon
Fits the Kohler Courage SV720 2-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Kohler Courage SV720Amazon
Fits the Kohler Courage SV720 2-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Kohler Courage SV720Amazon
Fits the Kohler Courage SV720 2-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Kohler Courage SV720Amazon
Fits the Kohler Courage SV720 2-cylinder gasoline engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- Toro LX500 service and repair manualseManualOnline
Digital manuals. Built 2006 to 2007. Check the serial number range on the listing.
- Toro LX500 operator's manualAmazon
Printed and reprint manuals. Built 2006 to 2007. Check the serial number range on the listing.
- Toro LX500 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
LX500 vs. Lawn and Garden median
Toro LX500 compared with other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 23 hp | 18 hp | +28% | 76th |
| Engine Displacement | 44.2 ci | 41.1 ci | +8% | 62nd |
| Cylinders | 2 | 2 | at median | 50th |
| Operating Weight | 525 lb | 738 lb | -29% | 21st |
| Length | 68 in | 71.7 in | -5% | 25th |
| Width | 53.9 in | 43.3 in | +24% | 88th |
| Height | 42.9 in | 42.9 in | at median | 50th |
Medians and percentiles are calculated from the lawn and garden tractors in the database that have a recorded value for each specification (sample size 269–380 models).
Same manufacturer
Other Toro models
Other manufacturers
Models with similar horsepower
Gallery

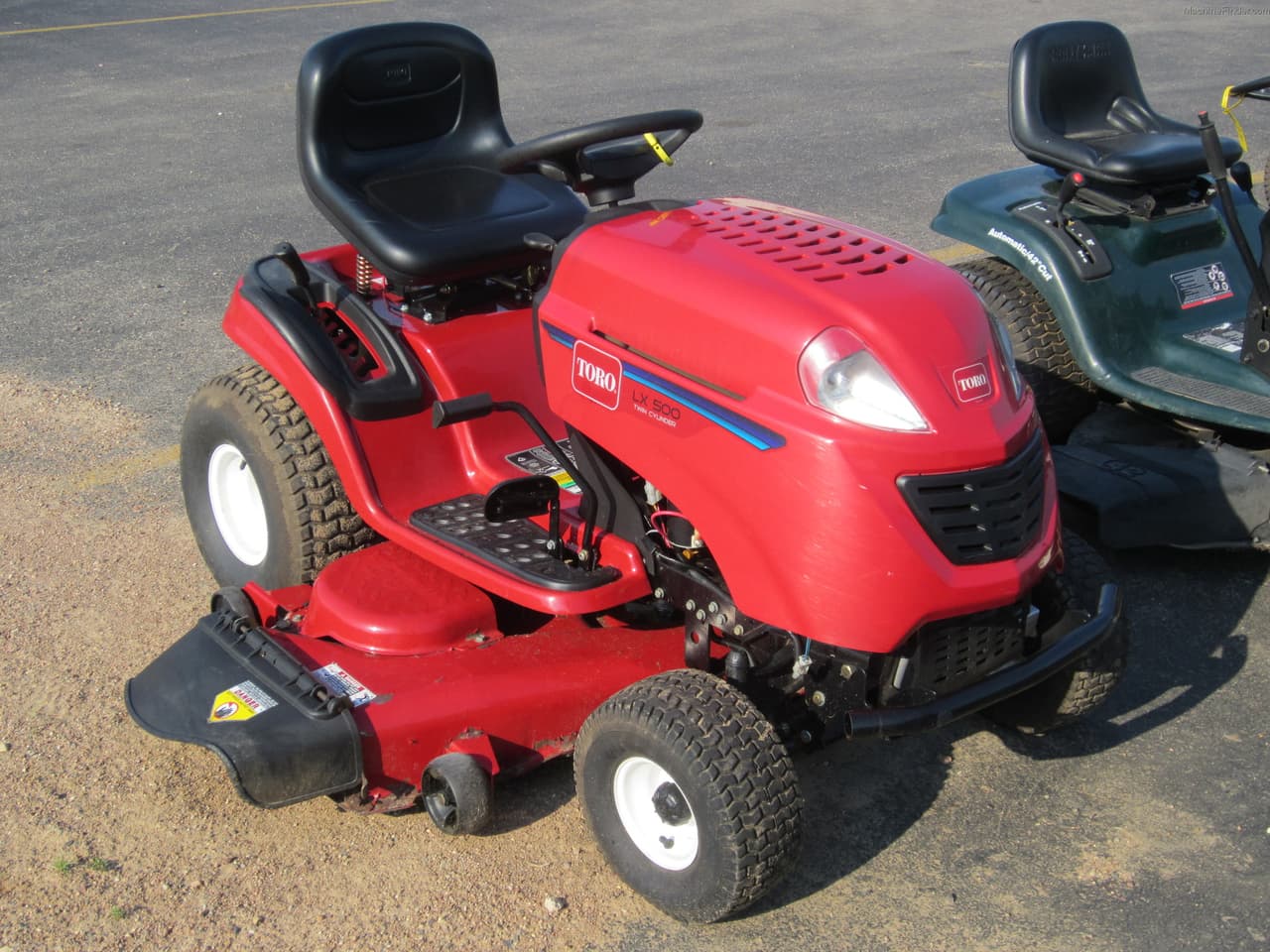

Toro LX500 photos
FAQ
Frequently asked questions
What years was the Toro LX500 manufactured?
Production of the Toro LX500 ran from 2006 through 2007.
What type of transmission does the Toro LX500 have?
The Toro LX500 uses a Mechanical CVT transmission.
How powerful is the Toro LX500?
The Toro LX500 has an engine power output of 23 hp. It is powered by a 2-cylinder engine displacing 44.2 ci.
What is the working weight of the Toro LX500?
The operating weight of the Toro LX500 is approximately 525 lb.
What routine service does the Toro LX500 need?
Regular maintenance for the Toro LX500 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
